CAPLINQ's LINQTAPE™ PIT-Series Tapes are polyimide tapes that can be compared to DuPont's Kapton® tape and can be used in the same high temperatures for applications as Kapton® tape is used. This includes semiconductors, smartcard, electronic, automotive and general manufacturing industries.

LINQTAPE PIT1A-ESD polyimide tape is a high-temperature resistant, antistatic treated polyimide film mounted with an acrylic adhesive. It is designed for both masking and temporary bonding in many high temperature applications found in semiconductor, electronic, automotive and other general manufacturing industries. LINQTAPE PIT1A-ESD polyimide tape provides an excellent balance of electrical, mechanical, thermal, and chemical properties over a wide range of temperatures. It has enhanced strength for puncture and tear resistance and can be used in applications that may see intermittent temperatures up to 260

• Typical applications and uses include
  • Temporary bonding of thermocouples for oven profiling
  • Bonding of devices prior to solder reflow
  • Masking in high temperature powder coating applications
  • High Temperature Harness Wrapping
  • Gold Finger Masking
  • Coil Insulation
  • Insulating circuit boards
  • Tesla Coils
• Technical Specifications

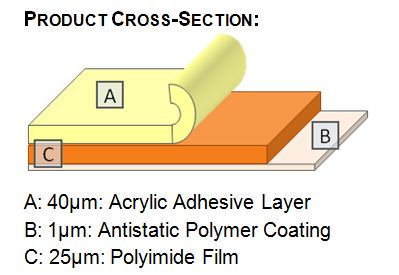

  • Color	: Amber
    Adhesive Type	: Acrylic
    Film (Backing) Thickness	: 25µm (1 mil)
    Anti-static ESD Polymer Thickness	: 1µm (~0.04 mil)
    Adhesive Thickness	: 40µm (1.6 mil) average
    Total Thickness	: 65µm (2.6 mil) average
    Removal from Roll Static Charge	: <100 Volts
    Adhesion to Steel	: 7.1 N/25mm
    	: 25oz/in.
    Tensile Strength	: 13.5 N/25mm
    	: 30 lbs/in.
    Elongation	: >55%
    Dielectric Strength	: >6000 Volts
    UL-94 Flammability Rating	: V-0
    Temperature Resistance	: 260°C
    	: 500°F

• Technical Datasheets

  • TDS (English)	LINQTAPE™ PIT-Series Polyimide Films & Tapes
    TDS (English)	LINQTAPE™ PET-Series Polyester Films & Tapes

• Harmonization Code

  • Customs Harmonization Code (HTS#) for 1mil Antistatic ESD Polyimide Tape with Acrylic Adhesive

    3919.90.90 | Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
