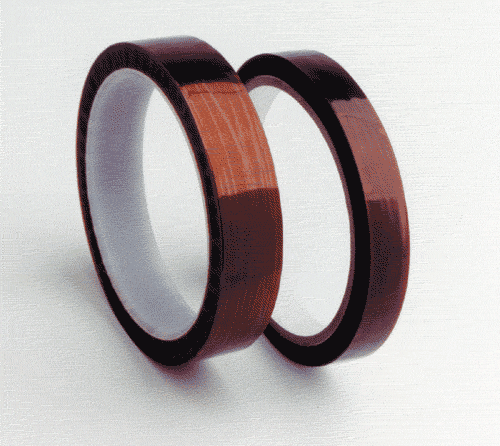

Polyimide Tape (Kapton) with Silicone Adhesive - Single-Sided

View Full-Size Image

Price: $3.97

CAPLINQ's LINQTAPE™ PIT-Series Tapes are polyimide tapes that can be compared to DuPont's Kapton® tape and can be used in the same high temperatures for applications as Kapton® tape is used. This includes semiconductors, smartcard, electronic, automotive and general manufacturing industries.

The Polyimide Tape comes in 33 meter (36 yard) rolls of varying widths and can be used for applications which may see temperatures up to 260°C (500°F).

Typical applications and uses include:

Temporary bonding of thermocouples for oven profiling
Bonding of devices prior to solder reflow
Masking in high temperature powder coating applications
High Temperature Harness Wrapping
Gold Finger Masking
Coil Insulation
Insulating circuit boards
Tesla Coils

See Dropdown Menu for Pricing
The products listed are stock items. Custom-sizes are available upon request with a longer leadtime.
Width:	Availability Usually ships in:
Click on tabs below for technical specs, pricelists, photos and more!

Technical
Specifications

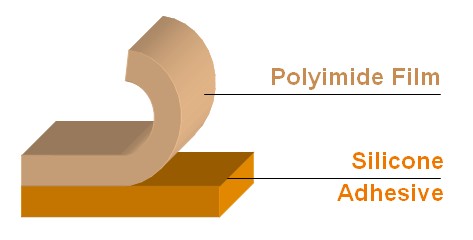

Summary of Technical Specifications:
Color	: Amber
Adhesive Type	: Silicone
Film (Backing) Thickness	: 25µm (1 mil)
Adhesive Thickness	: 40µm (1.6 mil)
Total Thickness	: 65 µm (2.6 mil)
Adhesion to Steel	: 0.6 kg/20mm
	: 25 oz/in
Tensile Strength	: 10.7 kg/20mm
	: 30 lbs/in
Elongation	: 60%
Dielectric Strength	: 6500 Volts
UL-94 Flammability Rating	: V-0
Temperature Resistance	: 260°C
	: 500°F

Technical Datasheets
TDS (English)	LINQTAPE™ PIT1S-Series 1-mil Polyimide Tape (Kapton Tape) with Silicone Adhesive
TDS (English)	LINQTAPE™ PIT2S-Series 2-mil Polyimide Tape (Kapton Tape) with Silicone Adhesive

Additional
Information

Additional Information
Read more about LINQTAPE™ PIT-Series Tape on our Polyimide (Kapton) Tape Blog.
Product Nomenclature

Competitive
Crossovers

Compare price and quality of Linqtape to these other brands
Popular Brand Names¹	Description	CAPLINQ LINQTAPE Part#
Nitto Permacel P-224 DuPont Kapton Tape 3M 1206 Saint-Gobain Furon® K224	1-mil Polyimide (Kapton) Tape with Acrylic-based Adhesive	CAPLINQ LINQTAPE™ PITA-Series
Nitto Permacel P-221 DuPont Kapton Tape 3M 5413 Saint-Gobain Furon® K250 Intertape 4428	1-mil Polyimide (Kapton) Tape with Silicone-based Adhesive	LINQTAPE™ PITS-Series
¹ Permacel® Kapton®, 3m®, Furon® and Intertape are registered Trademarks of Nitto, DuPont, 3M, Saint-Gobain and Intertape respectively and are not affiliated with this site.

Photos &
Videos

Roll over the individual photos to see a larger image

Pricing&
Availability

CAPLINQ is primarily a business-to-business company, therfore prices listed are excluding all taxes (federal, state, GST, VAT, MwST and BTW) and subject to change. Prices listed below are in USD, but are valid for deliveries worldwide, including Canada, USA, Europe, Mexico, South America and Asia. Invoices can be converted into EUR or CAD as requested. Orders over USD$350 have Free Delivery TO CANADA, USA & Continental Europe* The products listed are the most popular widths available. Custom widths (up to 510mm) are available, they just simply require a few more days processing time. Contact us for a quotation. The prices are ex-works CAPLINQ and freight charges apply as follows:

Europe, Middle East, Asia and Africa: ex-works CAPLINQ Netherlands (Amsterdam)
Canada, USA, Mexico and South America: ex-works CAPLINQ Canada (Ottawa)

Pricelist for CAPLINQ Linqtape Polyimide Tapes (KAPTON TAPE ALTERNATIVE)
CAPLINQ Part#	Dimensions*	Price per Roll in USD$
CAPLINQ Part#	Dimensions*	1 Roll	10 Rolls	25 Rolls	>25 Rolls
PIT1S/3	3mm (0.12")	5.36	3.97	2.79	2.63
PIT1S/6.4	6.4mm (¼")	8.06	5.97	3.83	3.49
PIT1S/12	12mm (0.47")	12.72	9.42	7.18	6.55
PIT1S/12.7	12.7mm (½")	13.46	9.97	7.59	6.93
PIT1S/19	19mm (¾")	20.88	15.47	11.36	10.37
PIT1S/20	20mm (0.79")	21.01	15.57	11.96	10.92
PIT1S/25	25mm (0.98")	26.26	19.45	14.95	13.65
PIT1S/25.4	25.4mm (1")	26.28	19.47	15.19	13.87
PIT1S/50.8	50.8mm (2")	53.28	39.47	30.38	27.74
PIT1S/100	100mm (3.94")	111.33	82.47	59.80	54.60
PIT1S/510	510mm (20")	539.28	399.47	304.98	278.46

*All rolls listed are 36 meters (36 yards) long

CAPLINQ also accepts orders by Corporate Purchase Order. Please contact us for more information.

* Unless otherwise noted, delivery service is by Priority national post (ie. Canada Post, USPS, TNT Post or similar). CAPLINQ reserves the right to determine the shipping carrier and ship-from location.

Packaging
Details

Linqtape PIT-Series Packaging (Per Single Roll)
	Metric	English
Length	33 meters	36 yards
Width	3mm (min) to 510mm (max)	0.118" (min) to 20" (max)
Diameter	10 cm	4"
Weight	3.75grams per mm width	3.36oz per in. width
The above figures are typical material properties only and are intended to calculate approximate packaging dimensions and weight.
