PMTC SAC305 Pb-free Solder Spheres

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has entities in Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied.

If your shipping address is to the United States, we request your company’s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order.

If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, not taxes are levied to your orders.

DON'T LIKE THESE PRICES? Tell us what you will pay for what order quantity.

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

• Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Netherlands (Amsterdam)
• Canada, USA, Mexico and South America: Shipping from CAPLINQ Canada (Ottawa)

The products listed are the most standard products widths available. We try to keep stock on all the standard widths, and otherwise require a few days to slit the jumbo rolls. Goods usually ship within 72 hours. Custom widths, lengths and thicknesses can be made to customer specifications, though minimum order quantities often apply. Contact us for a quotation.

CAPLINQ also accepts orders by Corporate Purchase Order. Please Contact us to find out more.

This general purpose, tin-lead solder alloy is composed of Sn63Pb37 and remains the highest volume Tin-Lead solder alloy sold today for companies who have not yet made the transition to Lead-free (Pb-free) soldering.

Profound Materials was founded in 2000 to manufacture and market tin-lead solder spheres for the microelectronics industry. The company has expanded to occupy a 2,100m2 (22,600 sq.ft.) facility in Kaohsiung, Taiwan where it now manufactures the widest range of solder ball offering with the tightest diameter tolerance to its customers. Early in 2006, Profound Materials achieved its TS 16949:2002 certification and now develops and manufactures its own line of low alpha ball and electro-plating solder spheres.

• Typical applications and uses include
  • Ball-attach applications of ball grid array (BGA) components
  • Ball-attach applications of Chip Scale Package (CSP) components
  • Ball-attach applications for Flip Chip (FC) components
  • BGA solder sphere rework
  • CSP solder sphere rework
• Solder Temperature & Diameter Tolerances

  • Solder Temperature and Diameter Tolerance Specification

    Tin/Lead Eutectic Solder Temperature
    Tin/Lead	錫	鉛	銀	Melting Point (℃)
    	(Sn)	(Pd)	(Ag)	Eutectic	Solidus	Liquidus
    SnA3	10	90	--	--	275	302
    SnB1	62	36	2	179	--	--
    SnA1	63	37	--	183	--	--
    Leadfree (Pb-free) Solder Temperature
    Lead-free	錫	銀	銅	Melting Point (℃)
    	(Sn)	(Ag)	(Cu)	Eutectic	Solidus	Liquidus
    SAC350	96.5	3.5	--	221	--	--
    SAC105	98.5	1	0.5	--	220	225
    SAC125	98.3	1.2	0.5	--	220	225
    SAC305	96.5	3	0.5	--	217	219
    SAC387	95.5	3.8	0.7	--	217	219
    SAC405	95.5	4	0.5	--	217	219
    Diameter Tolerance & Spheroid Tolerance :
    Diameter	Diameter Tolerance			Spheroid Tolerance		Qty/bottle
    0.76 mm	±0.015 mm			1.5%		250KPCS/bottle
    0.65 mm	±0.015 mm			1.5%		250KPCS/bottle
    0.60 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.50 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.45 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.40 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.35 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.30 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.25 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.20 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.15 mm	±0.005 mm			1.5%		1000KPCS/bottle
    0.10 mm	±0.005 mm			1.5%		1000KPCS/bottle

• Technical Specifications

  • METAL LOADING
    Tin (Sn)	: 96.5%
    Silver (Ag)	: 3%
    Copper (Cu)	: 0.5%
    Melting Point (Solidus)	: 217°C
    Spheroid Tolerance	: Within 1.5%
    DIAMETER TOLERANCE
    0.075mm - 0.15mm (3-6 mils)	: ±0.005mm (±0.2 mils)
    0.20mm - 0.60mm (8-24 mils)	: ±0.010mm (±0.4 mils)
    0.65mm - 0.76mm (25-30 mils)	: ±0.015mm (±0.6 mils)
    QUANTITY PER BOTTLE
    0.075mm - 0.45mm (3-18 mils)	: 1 million pieces (1,000 kpcs)
    0.50mm (20 mils)	: 500,000 pieces (500 kpcs)
    0.60mm - 0.76mm (24-30 mils)	: 250,000 pieces (250 kpcs)

• Technical Datasheets

  • TDS (English)	PMTC Sn63Pb37 Eutectic Tin/Lead Solder Spheres
    TDS (English)	PMTC SAC305 Pb-free Solder Spheres
    TDS (English)	PMTC SAC405 Pb-free Solder Spheres

Read more about LINQTAPE™ PIT-Series Tape on our LINQTAPE PIT-Series Blog.

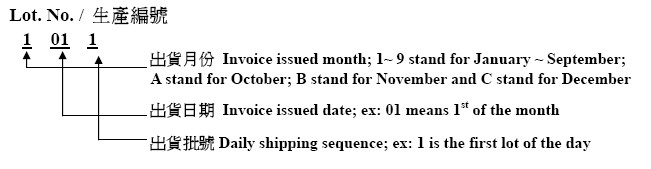

• Reading the Lot Number
  •
• Harmonization Code

  • Customs Harmonization Code (HTS#) for SAC305/SAC405

    8001.20.00.10: Unwrought tin: Tin alloys containing, by weight, 5 percent or less of lead

    Customs Harmonization Code (HTS#) for Sn63Pb37

    8001.20.00.90: Unwrought tin: Tin alloys containing, by weight, more than 25 percent of lead
