DK7-0953M Light Blue Insulating Coating Powder

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • DK7-0953M Coating Powder
  • Light Blue, insulating, epoxy based
  • Humidity-resistant for outdoor low voltage busbars

Product Description

A great, humidity-resistant powder for outdoor low voltage busbars

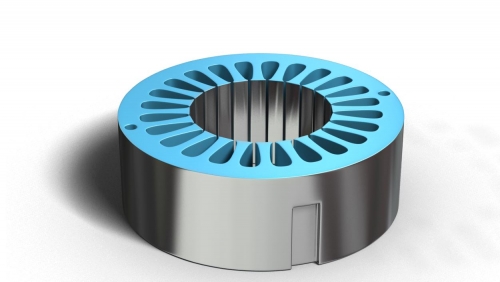

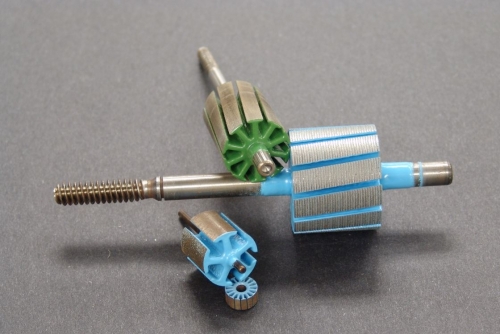

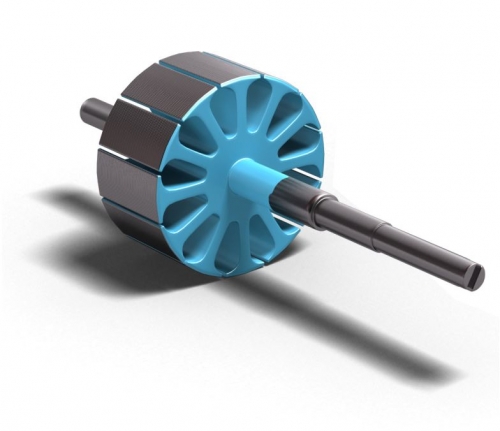

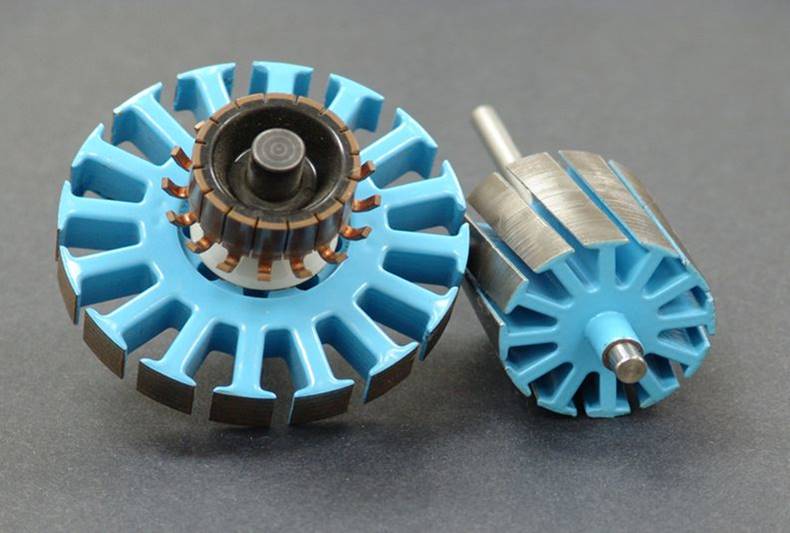

DK7-0953M is an epoxy based coating powder developed for slot insulation of the motor armatures of electric motors. This includes the armatures and stators of AC and DC motors used for fractional horsepower motors and higher. The coating provides superior edge coverage and high impact strength which yields a more durable motor. High cut through temperature serves to protect the motor even at high operating temperatures.

DK7-0953M is tested and qualified for UL EIS 1446 155°C (Class F) rating. Exceptional shelf stability is an attractive feature of this coating powder. Used for over 20 years by major manufactures of automotive enclosures, windshield wipers, seat adjusters and other, DK7-0953M provides a smooth surface appearance with high edge coverage. DK7-0953M is UL recognized. Particle size is optimized for electrostatic fluidized bed coating process.

Advantages of DK7-0953M for Slot Insulation

  • Exceptional shelf stability, 12 months @ 23°C
  • Shelf life greater than one year with 10°C storage
  • Incredibly bed-stable in humid environments - used in humid, non-temperature controlled production facilities in Mexico, China, France and India
  • Permits the use of more copper in the slots allowing for smaller, higher-power motors
  • Best-in-class Edge Coverage
  • Reduced copper waste compared to slot liners since the winding does not need to go up and over the liner
  • Excellent moisture resistance, even in high temperature and corrosive conditions
  • An extremely reliable coating powder, used for decades in the motor armature industry

Typical applications and uses of DK7-0953M Blue or Gray include:

  • Slot Insulation of AC and DC Motor Armatures
  • Slot Insulation of Stators
