LINQCELL GDL2200 | 2.2mm Carbon Plate

Harmonization Code : 6815.11.00.00 |   Articles of stone or of other mineral substances, not elsewhere specified or included; Non-electrical articles of graphite or other carbon; Carbon fibres and articles of carbon fibres
Main features
  • 2.2mm - 2200um - 86.6mil

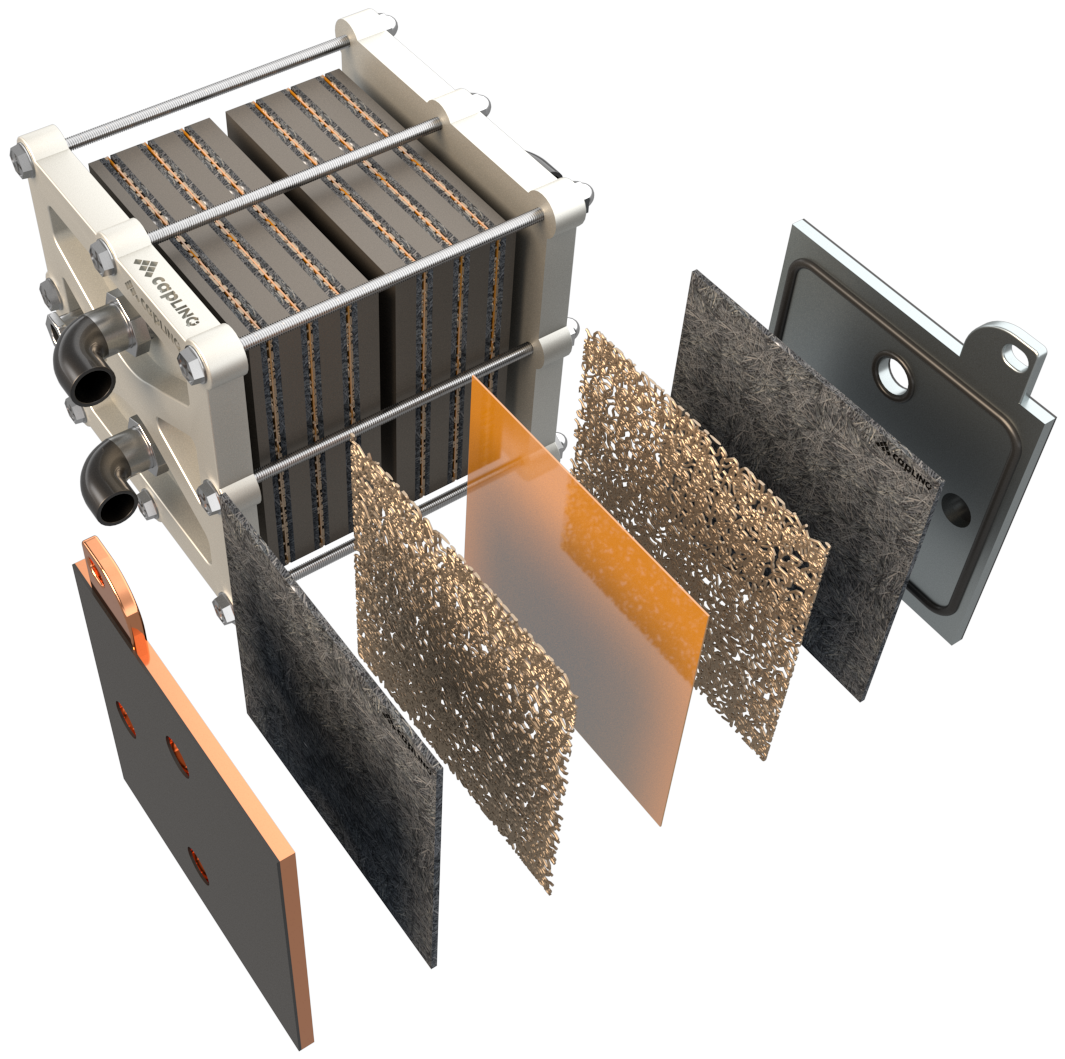

  • Ideal for electrolyzers
  • Graphitized Carbon Plate

Product Description

LINQCELL GDL2200 is a graphitized carbon plate, commonly used as a gas diffusion layer and electrode for fuel cells. Its through plane resistance is less than 17 mΩcm2.  It has a thickess of 2.2mm ±0.2mm that is measured at 50 kpa.

LINQCELL GDL2200 has a density of ±0.6-0.75 g/cm3 and a through plane resistivity of 110mΩ-cm instead of 100mΩ-cm from the classic Spectracarb grades. Voltage loss is 35mV.

Product Family
GDL2200
40 x 40 cm

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Basis Weight
Basis Weight
Basis weight refers to the weight measured in pounds off 500 sheets of paper in that paper’s basic sheet size.
 1550 g/m2
Density
Density
Volumetric mass per unit
 0.6 kg/m3
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
 2.2 μm
Electrical Properties
Through Plane Resistivity
Through Plane Resistivity
Resistance of the amount of current through a material
 110 mΩcm
TP Resistance
TP Resistance
Opposition to the flow of electric current.
 17 mΩcm2
Voltage loss 35 mV
