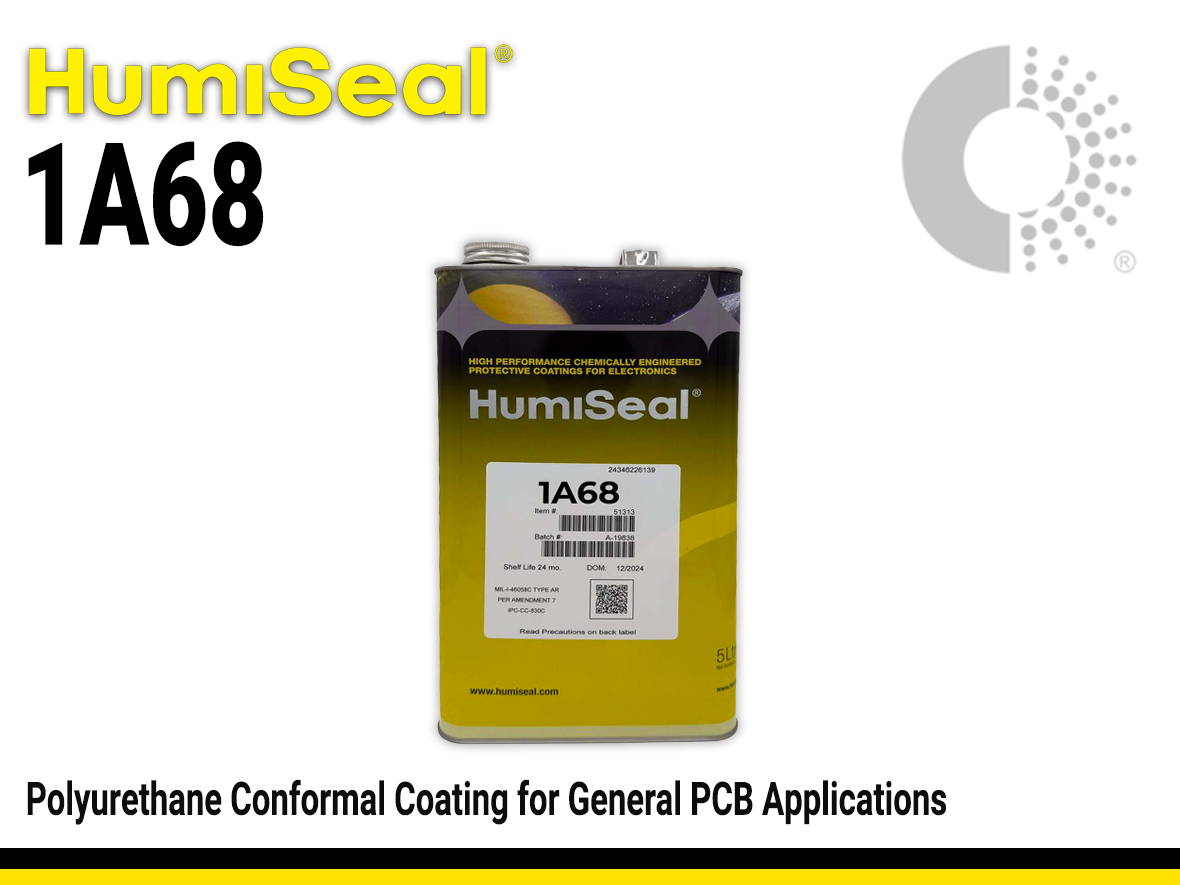

Humiseal 1A68 | Urethane Conformal Coating

Harmonization Code : 3208.20.90 | Paints and varnishes that are dispersed or dissolved in a non aqueous medium

Humiseal 1A68 | Urethane Conformal Coating

Main features

No Free Isocyanates
UV Fluorescence
Polyurethane Chemistry

Product Description

HumiSeal® 1A68 is a single-component, moisture-curing polyurethane conformal coating that provides outstanding chemical and abrasion resistance. The coating cures to a tough, durable, and flexible finish that protects printed circuit boards (PCBs) from a wide range of harsh environmental stresses. 1A68 is easy to apply and rework and contains a UV fluorescent tracer for inspection and quality control.

HumiSeal 1A68 coating meets the following requirements:

MIL-I-46058C
IPC-CC-830
RoHS Directive 2002/95/EC Compliant
UL File Number E105698 Recognized

Product Key Features

Polyurethane Chemistry: Provides a tough, durable coating with exceptional chemical, moisture, and abrasion resistance.
Moisture-Curing: Cures by reacting with ambient humidity, providing a reliable and strong bond.
Fluorescent Tracer: Contains a UV indicator for easy inspection under a blacklight to ensure complete and uniform coverage.
Resistant to Harsh Environments: Provides a durable barrier against moisture, solvents, and mechanical wear.

Aplications

HumiSeal 1A68 is used for protecting a wide range of electronic assemblies from environmental and mechanical stress. It is suitable for use in high-performance applications that require superior resistance to abrasion and chemicals, such as in the automotive, military, and aerospace industries.

Product Family
HS-1A68

1. Select Package Type

5L Can 1L Can

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Shortest leadtime

Shipping in 6 - 8 weeks

Contact for Pricing

Packaging

TDS, SDS & Technical documents

Specifications
Additional Information

Technical Specifications

General Properties

Density (g)

0.95 g/cm3

Solids

44 %

Electrical Properties

Breakdown Voltage

Breakdown Voltage
Breakdown voltage is the minimum voltage necessary to force an insulator to conduct some amount of electricity.
It is the point at which a material ceases to be an insulator and becomes a resistor that conducts electricity at some proportion of the total current.

After dielectric breakdown, the material may or may not behave as an insulator any more because of the molecular structure alteration. The current flow tend to create a localised puncture that totally alters the dielectric properties of the material.

This electrical property is thickness dependent and is the maximum amount of voltage that a dielectric material can withstand before breaking down. The breakdown voltage is calculated by multiplying the dielectric strength of the material times the thickness of the film.

7500 V

Dielectric Constant

Dielectric Constant
Dielectric Constant (k), commonly known as relative permittivity, is a number relating the ability of a material to carry alternating current to the ability of vacuum to carry alternating current.

It determines the ability of an insulator to store electrical energy and is the ratio of electric permeability in vacuum against the electric permeability of a material.

The lower the dielectric constant (κ) and dissipation factor, the less energy is absorbed from an electric field, making it a much better insulator.

It is a dimensionless property that can be affected by various factors such as the thickness uniformity of a material, insufficient contact between the sample and electrodes, water adsorption and contact resistance.

Dielectric Constant @ 1000 kHz

3.6

Dissipation Factor

Dissipation Factor
Dissipation factor is commonly known as loss tangent or tan delta.

It is a ratio of the loss index and the relative permittivity and it measures the inefficiency of an insulating material to maintain energy (that otherwise dissipates in the form of heat). The lower the factor, the better the insulation.

It is the reciprocal of the quality factor and always refers to a specific temperature and frequency.

Dissipation Factor @ 25°C /1000 kHz

0.03

Mechanical Properties

Storage (DMA) Modulus
Storage (DMA) Modulus @ 25°C	27.2 N/mm2

Thermal Properties

Glass Transition Temperature (Tg)

Glass Transition Temperature (Tg)
The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding.

The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs.

26 °C

Operating Temperature

-65 - 125 °C

UL 94 Rating

UL 94 Rating
Flammability rating classification.
It determines how fast a material burns or extinguishes once it is ignited.

HB: slow burning on a horizontal specimen; burning rate less than 76 mm/min for thickness less than 3 mm or burning stops before 100 mm
V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed.
V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole.
5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole

V-0

Curing Conditions

Curing Schedule Curing Schedule Curing schedule is the time and temperature required for a mixed material to fully cure. While this applies to materials that cure with heat, there are also other materials that can be cured with UV. Even though some materials can cure on ambient temperatures, others will require elevated temperature conditions to properly cure. There are various curing schedules depending on the material type and application. For heat curing, the most common ones are Snap cure, Low temperature cure, Step cure and Staged cure. Recommended cure type, schedule, time and temperature can always be found on the Technical data sheets.
Cure Time	15 minutes
Full Cure Time	30 hours

Additional Information

Frequently Asked Questions About HumiSeal® 1A68

What are typical applications for HumiSeal® 1A68?

HumiSeal® 1A68 is a single-component, polyurethane conformal coating designed to protect printed circuit board assemblies (PCBs) in demanding environments. Its excellent moisture and chemical resistance, along with its wide operating temperature range, make it a reliable choice for a variety of industries, including:

General printed circuit board applications
Industrial electronics
Automotive electronics
Instrumentation and monitoring equipment

This coating is particularly well-suited for applications where reliable environmental protection is required and where a fast-drying, solvent-based system is preferred.

Why choose HumiSeal® 1A68 over other conformal coatings?

HumiSeal® 1A68 is a single-component, high-performance polyurethane formulation that is fast-drying. It provides excellent chemical and moisture resistance. It contains no free isocyanates, making it a safer option. The coating is a flexible film with good abrasion resistance, and its viscosity is optimized for spray, brush, or dip application. The coating is compliant with IPC-CC-830, and it meets the requirements of the RoHS Directive 2002/95/EC and is recognized under UL File Number E105698.

What is the shelf life of HumiSeal® 1A68?

HumiSeal® 1A68 has a shelf life of 24 months from the date of manufacture when stored at room temperature (18 to 32°C or 65 to 90°F) in a tightly closed container, away from excessive heat or direct sunlight. As it is a solvent-based material, it is crucial to protect the product from ambient air to prevent premature viscosity increase due to solvent evaporation. Therefore, any open or partial containers should be tightly sealed after use.

How should I clean tools after applying HumiSeal® 1A68?

To flush equipment and clean uncured HumiSeal® 1A68, xylene or toluene are suitable solvents. For coating removal during rework, the cured film can be difficult to remove. Thermal displacement, mechanical abrasion, and specialized chemical strippers (e.g., HumiSeal® Stripper 1063) are all suitable options for rework.

What happens to HumiSeal® 1A68 after its shelf life?

After the shelf life, the material's viscosity may increase due to solvent evaporation, which can lead to improper application, uneven coating, and a reduction in the protective performance of the cured film. The use of expired material is not recommended as it may compromise the quality and reliability of the coating. Due to its solvent-based nature, proper storage is critical to maintaining product integrity.

How does HumiSeal® 1A68 cure, and why do curing times vary?

HumiSeal® 1A68 is a single-cure, solvent-drying coating that cures by the evaporation of its solvents to form a durable film. The coating has a dry to handle time of 15 minutes at room temperature, and will reach its optimum properties within 30 days. Curing times can vary based on ambient conditions; higher temperature and air flow will accelerate the curing process. Ensuring a well-ventilated and controlled environment is key for a consistent and reliable cure.

What is the recommended thickness for HumiSeal® 1A68?

The recommended coating thickness for HumiSeal® 1A68 is 25 to 75 microns (1-3 mils). This thickness range ensures optimal protective performance while maintaining flexibility and electrical properties. The final thickness can be adjusted based on the application method and specific project requirements.

What are the differences between application methods for HumiSeal® 1A68?

HumiSeal® 1A68 can be applied by dipping, spraying, or brushing. Dipping is often used for high-volume, automated processes, providing uniform coverage for complex geometries. Spraying, using conventional spray equipment, is ideal for selective application and achieving a consistent film. Brushing is suitable for rework or small-scale applications, offering precise control in localized areas. For all methods, ensuring a well-ventilated area is crucial to prevent the build-up of flammable solvent vapors.

What is the maximum operating temperature for HumiSeal® 1A68?

HumiSeal® 1A68 has a continuous use operating temperature range of –65°C to +125°C, providing consistent protection across a wide range of thermal conditions. It is capable of withstanding thermal shock within this range.

What safety precautions should I take when using HumiSeal® 1A68?

HumiSeal® 1A68 contains flammable solvents, so it should be used in well-ventilated areas and kept away from open flames or sparks. Prevent skin and eye contact by wearing appropriate personal protective equipment, including safety glasses and solvent-resistant gloves. Avoid inhalation of vapors and spray mist. Always consult the product's Safety Data Sheet (SDS) for detailed handling, storage, and disposal information.

How can I ensure proper application of HumiSeal® 1A68?

HumiSeal® 1A68 contains a UV fluorescent tracer, which makes it easy to inspect for proper coverage. Under a UV lamp, the coating will fluoresce, allowing visual confirmation of uniform application and film integrity. This feature is essential for quality control and process monitoring, ensuring all required areas of the PCB have been coated uniformly. Test coupons can be used to periodically check thickness and cure quality.

How does HumiSeal® 1A68 perform in harsh environments?

HumiSeal® 1A68 provides excellent protection against moisture, humidity, and chemical exposure. The cured polyurethane film is tough and flexible, ensuring long-term integrity against environmental stressors. This makes it an ideal solution for applications where PCBs are exposed to corrosive agents, moisture, or significant temperature fluctuations, such as in military or industrial settings.

Learn More About HumiSeal® 1A68

HumiSeal® 1A68 is a high-performance, single-component, fast-drying polyurethane conformal coating. Designed for superior protection, this coating offers a simple yet effective solution for safeguarding electronic assemblies in demanding environments. It provides a reliable defense against moisture, chemicals, and temperature extremes, making it an industry staple for protecting PCBs in sectors like military, aerospace, and industrial automation. An added UV fluorescent tracer assists with visual inspection for quality control.

Key Features at a Glance

✔ Single-component, solvent-drying system
✔ Contains no free isocyanates
✔ Excellent moisture and chemical resistance
✔ Good flexibility and abrasion resistance
✔ Wide operating temperature range (-65°C to +125°C)
✔ UV fluorescent tracer for inspection
✔ Can be applied by spray, dip, or brush

Simple, Reliable Solvent Cure 🌬️

HumiSeal® 1A68 offers a straightforward and highly reliable curing system that doesn't require any special equipment. It cures at ambient temperature by the evaporation of its solvents. This eliminates the need for ovens or UV lamps, simplifying the production process and reducing energy costs. The tack-free time is just 15 minutes at room temperature, with optimum properties typically achieved within 30 days, depending on atmospheric conditions.

Curing Parameters:

Ambient Cure: Dry to handle in 15 minutes. Optimum properties achieved in 30 days.
30 hours @ 76°C or 20 hours @ 88°C.

This simple curing mechanism provides a robust and complete cure for even the most complex PCB assemblies without the need for specialized equipment or process steps.

Application and Compatibility

HumiSeal® 1A68 is a versatile coating formulated for various application methods, making it compatible with a wide range of manufacturing environments.

Compatible With:

✔ Spray, dip, or brush application methods
✔ High-reliability applications requiring excellent moisture resistance
✔ "No-clean" flux residues (users should confirm compatibility)
✔ Lead-free and RoHS-compliant manufacturing environments

Additionally, the coating is reworkable using thermal methods or chemical strippers, making it a practical choice for designs that may require servicing or component repair.

High-Performance Electrical and Physical Protection 🧪

HumiSeal® 1A68 delivers outstanding electrical insulation with a dielectric withstand voltage >1,500 volts and insulation resistance >2.0 × 10¹⁴ ohms. Its polyurethane chemistry provides excellent chemical resistance, flexibility, and abrasion resistance, ensuring long-term durability and protection against moisture, contaminants, and mechanical stress.

Inspection and Quality Control 🔎

HumiSeal® 1A68 contains a UV fluorescent tracer, allowing for easy and reliable inspection under UV light. Quality assurance can be achieved by carefully monitoring the application process to ensure all critical areas are coated to the recommended thickness. This feature is ideal for manufacturers who require a simple, visual method for verifying proper coverage and uniformity across the entire PCB.

Repairable and Reworkable 🔁

Although HumiSeal® 1A68 forms a robust, durable film, it is still reworkable. If component replacement or repair is needed, the cured coating can be selectively removed using thermal displacement (e.g., a soldering iron), mechanical abrasion, or a chemical stripper (e.g., HumiSeal® Stripper 1063). This feature makes 1A68 suitable for applications that require field serviceability or prototype modification.

Reliable Across Environments 🌍

With a continuous operating temperature range of –65°C to +130°C, coupled with excellent moisture and chemical resistance, 1A68 ensures consistent performance across varied environmental conditions. Its robust polyurethane film is particularly well-suited for critical systems exposed to humidity, corrosive agents, and significant temperature cycling.
