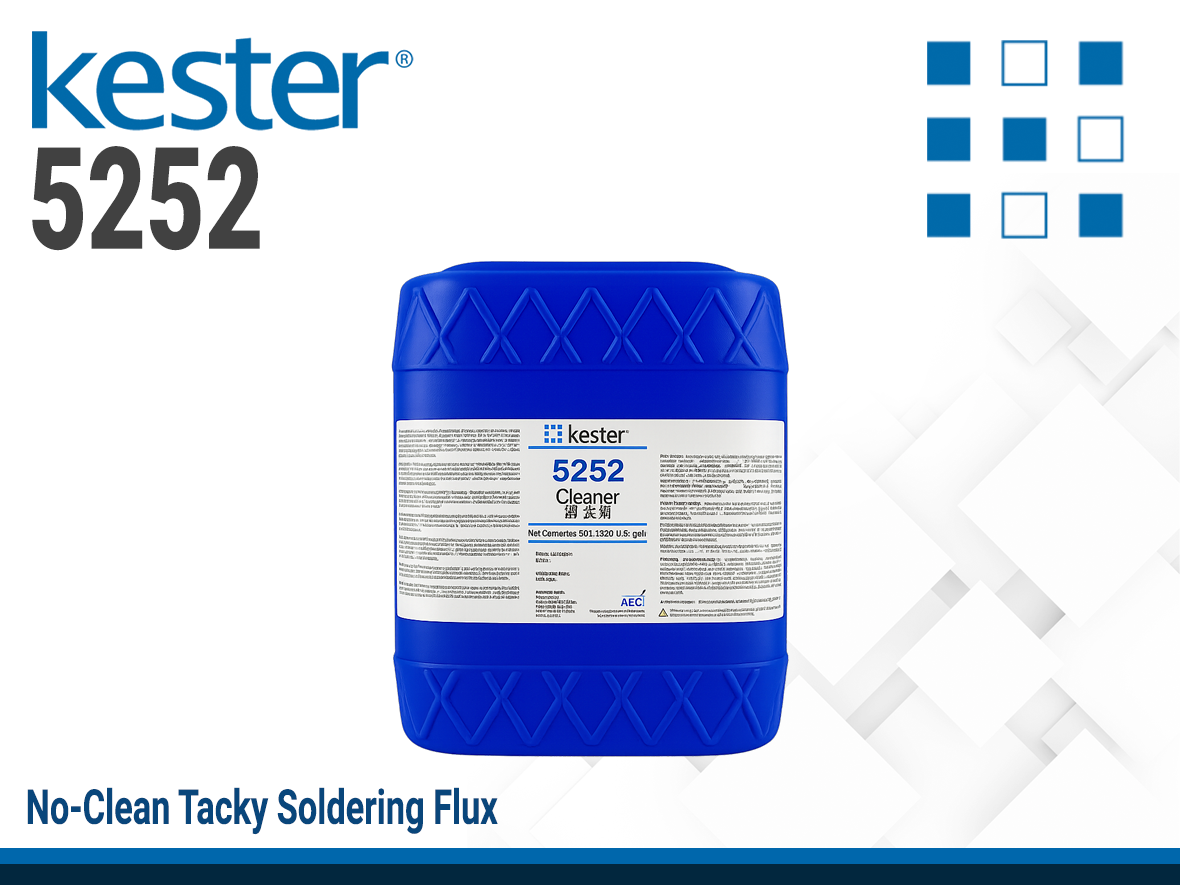

KESTER 5252 Cleaner

Harmonization Code : 29051200 | Propan-1-ol (propyl alcohol) and propan-2-ol (isopropyl alcohol)

Main features

Quickly air dries
Halogen-free formulation
Non-ionic

Product Description

Kester 5252 Cleaner is an environmentally friendly, halogen-free solvent designed for efficient cleaning in electronics manufacturing. 5252 offers rapid air-drying and effective removal of contaminants without ozone depletion.

Product Key Features

Non-ozone depleting and safe for the environment.
Fast air-drying
Rapidly dissolves solder pastes, flux residues, and organic contaminants.
Non-ionic & low toxicity
Suitable replacement for traditional chlorinated cleaning agents.

Applications

Removing solder paste from stencils.
Post-soldering flux residue removal from electronic assemblies

Specifications
Additional Information

Technical Specifications

General Properties
Specific Gravity Specific Gravity Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume. For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.	0.788
solubility	100 Min
Thermal Properties
Boiling Point Boiling Point The amount of degree’s needed to reach in order to make the substance boil.	82 °C
Flash Point Flash Point The flashpoint of a solvent is the lowest possible temperature at which it can vaporize to form an ignitable vapor. Flashpoint is often confused with “autoignition temperature”, which is the temperature at which a solvent ignites without an ignition source.	9 °C

Additional Information

Application

5252 can be used as a solvent for the following applications: stencil cleaning, cleaning of misprinted assemblies, removal of post-soldering flux residues and other organic contaminants from electronic assemblies (wave-soldered and reflow processes), and general purpose cleaning.

5252 may be used at ambient temperature with ultrasonics, stencil spray equipment, or immersion agitation or manual application. When the residue has completely dissolved and is no longer visible, the residual solution is rinsed off with more solvent. The purpose is not to only dissolve the residue, but also to remove it after it is dissolved.

5252 dries fast and usually does not require any water rinse. It is recommended that after cleaning with 5252 solvent, the stencils or electronic assemblies should be dried by evaporation or solvent displacement with forced air. If additional cleanliness is required, the stencils or assemblies could be rinsed with a secondary 5252 rinse. The bath life of the cleaner solvent will depend on the cleanliness requirements. The solvent should be replaced at regular intervals in order to avoid solvent contamination.
