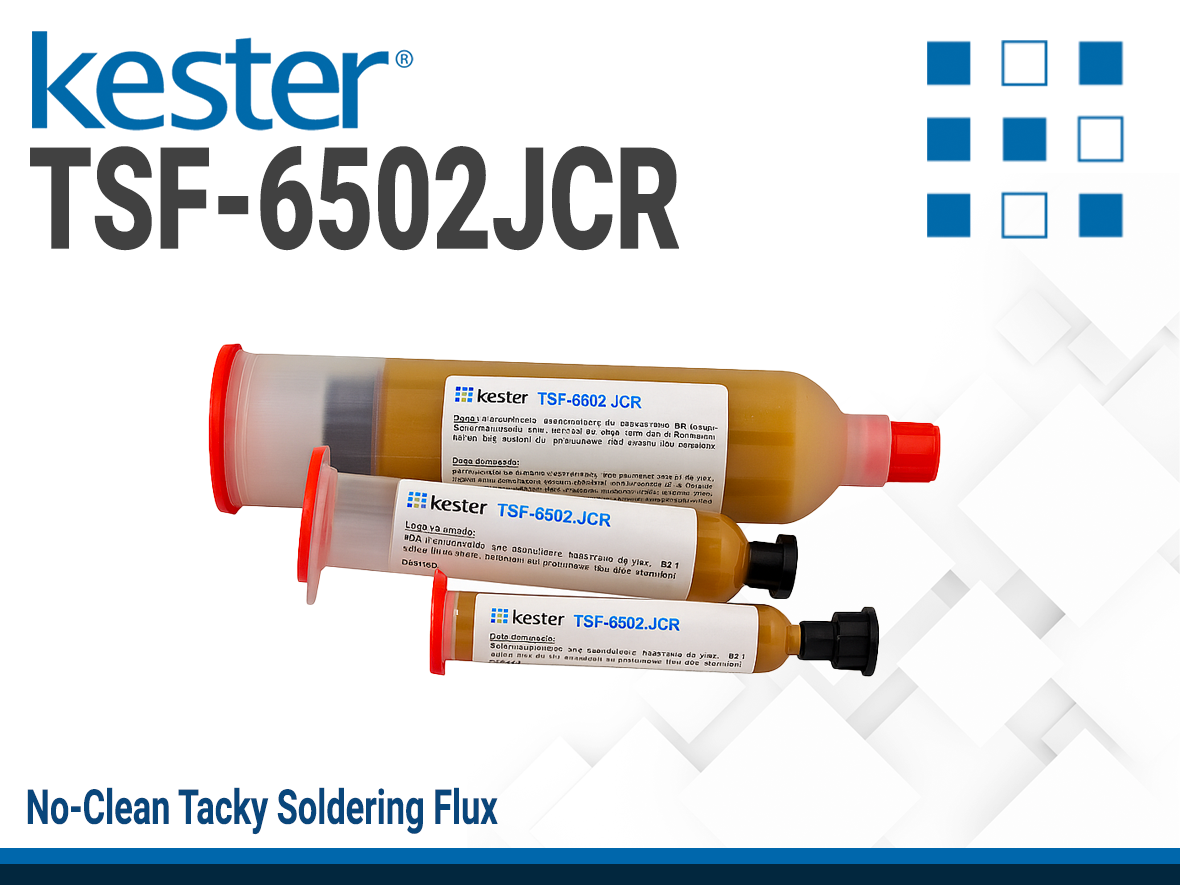

Kester TSF-6502JCR

Harmonization Code : 29051200 | Propan-1-ol (propyl alcohol) and propan-2-ol (isopropyl alcohol)

Main features

8-hour stencil life
Printing up to <16mil pitch
ROL1 & Bellcore GR-78 compliant

Product Description

Kester TSF-6502JCR is a no-clean tacky soldering flux formulated for high activity and robust performance. TSF-6502JCR enables excellent soldering on challenging surfaces, even under multiple thermal cycles, while leaving clear, aesthetically pleasing residues.

Product Key Features

Stencil life: 8 hours (process dependent)
Excellent printing characteristics to <16mil pitch
Leaves bright/shiny solder joints after reflow
Can reflow in air or nitrogen environments
Classified as ROL1 per J-STD-004
Compliant to Bellcore GR-78

Applications

Nickel Surface Soldering
OSP-Treated Copper Boards
Multi-Reflow Processes

Specifications
Additional Information

Technical Specifications

Physical Properties
Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application	100000 mPa.s
