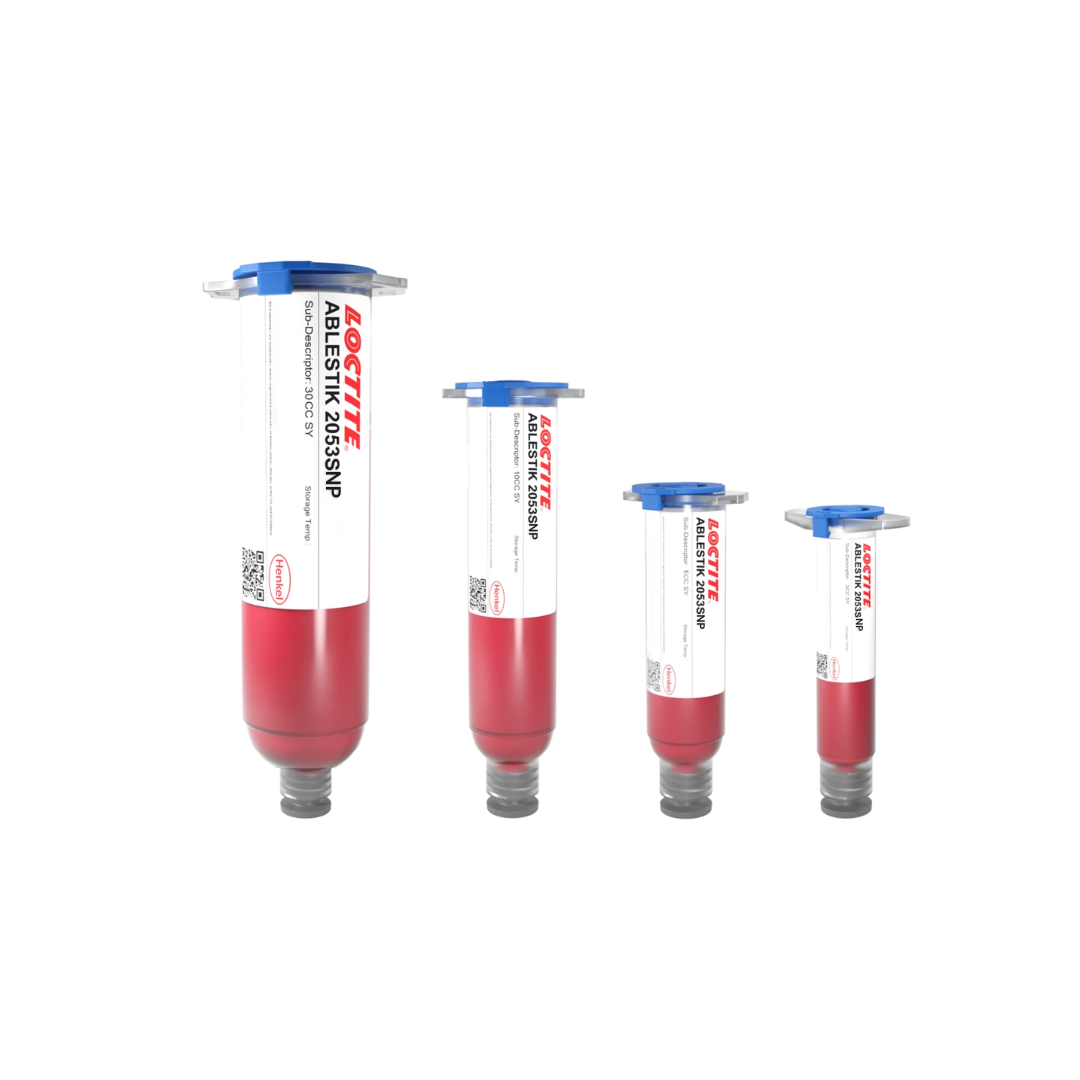

LOCTITE ABLESTIK ABP 2053SNP
Harmonization Code : 3506.10.00.00 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg
Main features
- Formulated without intentionally added PFAS
- One-component
- Low stress
Product Description
LOCTITE® ABLESTIK ABP 2053SNP is a non-conductive die attach adhesive that is ideal for array packaging. This version of LOCTITE® ABLESTIK ABP 2053S is specially formulated without intentionally added PFAS, making it a sustainable choice for your assembly needs.
Recommended Cure Schedule
- 30 minute ramp to 175 ºC + 15 minutes @ 175ºC
- 30 minute ramp to 150 ºC + 60 minutes @ 150ºC
Product Key Features
- Non-conductive formulation for reliable electrical insulation.
- One-component system for easy and efficient application.
- Low stress to protect delicate components from damage.
- Formulated without intentionally added PFAS, aligning with environmental and safety standards.
Applications
Die attach in array packaging & general semiconductor assembly requiring non-conductive adhesives.
Technical Specifications
| General Properties | |||||||||
| Work life @25°C Work life @25°C Work life is the amount of time we have to work with a material until it is no longer able to be easily worked and applied on a substrate. It is based on the change in viscosity and it can rely on the application requirements. | 24 hours | ||||||||
| Thermal Properties | |||||||||
| Glass Transition Temperature (Tg) Glass Transition Temperature (Tg) The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding. The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs. | -20 °C | ||||||||
| Weight Loss @ 300°C | 1.7 % | ||||||||
| |||||||||
| Mechanical Properties | |||||||||
| |||||||||
| Chemical Properties | |||||||||
| Moisture absorption | 0.7 % | ||||||||
| |||||||||
| Physical Properties | |||||||||
| Thixotropic index Thixotropic index Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten. A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads. It helps in choosing a material in accordance to the application, dispense method and viscosity of a material. | 3 | ||||||||
| Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application | 16,000 mPa.s | ||||||||
