TG3010I | Thermal Grease

Harmonization Code : 3824.99.92.97 | Prepared binders for foundry molds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included: other : other : other

Main features

0.003 °C•cm²/W Thermal Impedance
3.0 W/m•K Thermal Conductivity
10μm BLT

Product Description

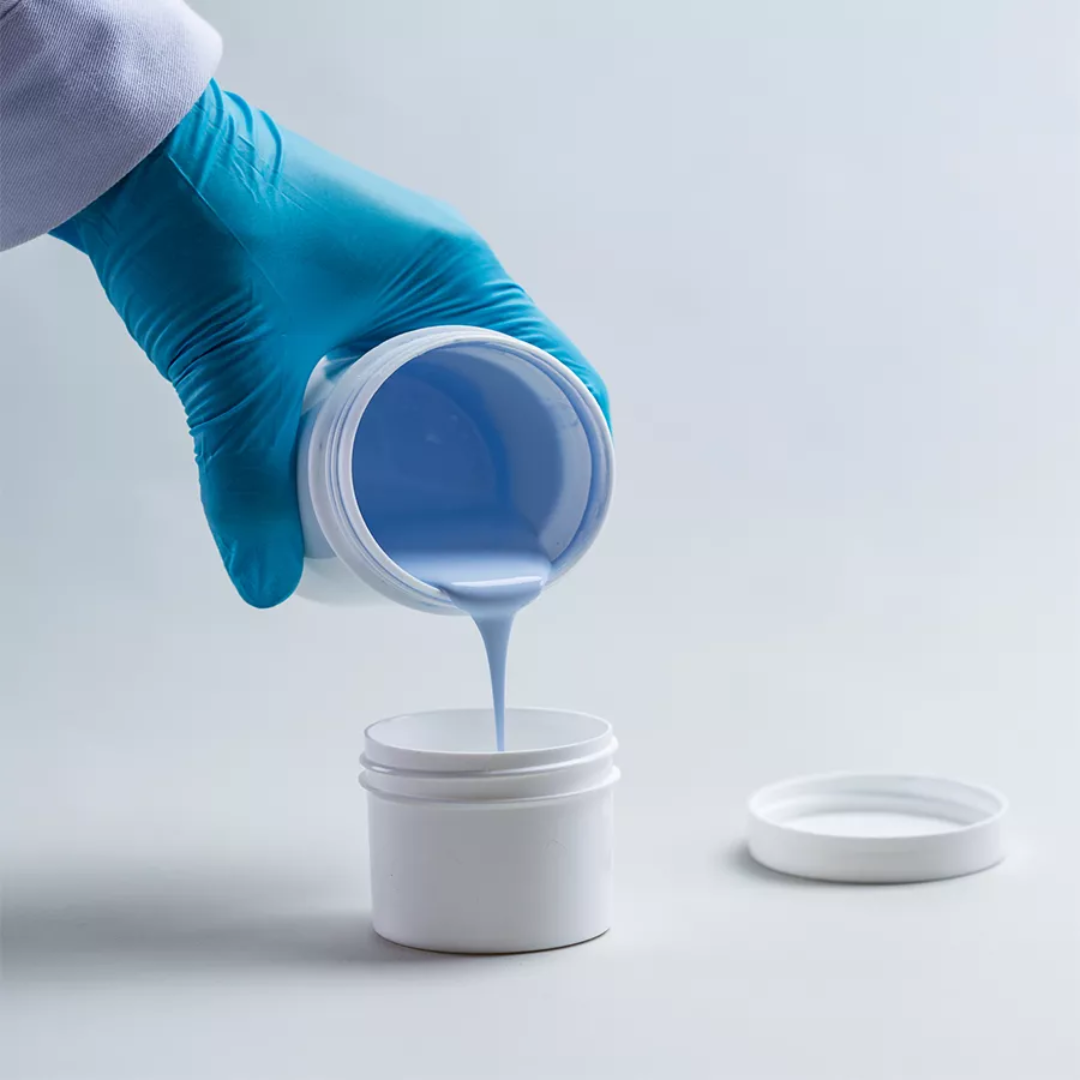

Honeywell TG3010I Thermal Silicone Grease is the optimized version of TG3000I. Specifically formulated for high-power density applications, TG3010I delivers superior thermal management by minimizing interfacial thermal resistance. It features a thermal conductivity (TC) of 3.0 W/mK and an exceptionally low thermal impedance (TI) of 0.003 °C·cm²/W. A key differentiator is its ability to consistently achieve a remarkably thin bond line thickness of 10 microns at 35 psi and 50°C, facilitated by its fine 7um maximum particle size. This, combined with its excellent electrical insulation properties, makes it an exceptional product in our thermal grease catalogue.

Furthermore, TG3010I's low viscosity and excellent thixotropic characteristics ensure suitability for various large-scale production methods, including dispensing, screen printing, and stencil printing, with minimal risk of oil separation. Designed to maintain its exceptional performance through rigorous reliability testing, TG3010I offers a broad operating temperature range from -40°C to 150°C, ensuring robust thermal performance and ease of use across a wide array of critical applications.

Applications

High power density applications such as power converters and high power electronics (CPUs and GPUs).
LED assemblies
IGBT & power units
FCBGA

Specifications
Additional Information

Technical Specifications

General Properties
Color Color The color	White
Specific Gravity Specific Gravity Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume. For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.	3.4
Thermal Properties
Thermal Conductivity Thermal Conductivity Thermal conductivity describes the ability of a material to conduct heat. It is required by power packages in order to dissipate heat and maintain stable electrical performance. Thermal conductivity units are [W/(m K)] in the SI system and [Btu/(hr ft °F)] in the Imperial system.	3.0 W/m.K
Thermal Impedance	0.005 °C·cm²/W
UL 94 Rating UL 94 Rating Flammability rating classification. It determines how fast a material burns or extinguishes once it is ignited. HB: slow burning on a horizontal specimen; burning rate less than 76 mm/min for thickness less than 3 mm or burning stops before 100 mm V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed. V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed. 5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole. 5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole	V-0
Electrical Properties
Volume Resistivity Volume Resistivity Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.	2.0x10¹² Ohms⋅cm
Physical Properties
Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application	200,000 mPa.s

Additional Information

Honeywell TG3010I Additional Specification

PROPERTY	VALUE	UNIT
Working Temperature	-40 - 150	℃

Will I have any issues with fretting(friction) with Greases?

After conducting a thermally degrading test you might realise that these greases are highly filled (~93.5% residual mass). Can this be a cause for concern when it comes to fretting and friction? The short answer is no.

The long answer is that Zinc oxide and aluminum oxide are common fillers in greases and other TIMs. These materials are also used in our phase change TIMs and there has rarely been any issues with fretting (friction) during dispensing or other applications. Fretting is only a concern with boron nitride as filler. Friction related impact is also minimal on low viscosity greases. So you are safe.
