Protection and Reinforcement for PCB
Modern electronic systems are increasingly deployed in harsh and unpredictable environments. From industrial automation and automotive systems to outdoor infrastructure and high-reliability computing platforms. In these conditions, printed circuit boards (PCBs) must be engineered not only for electrical performance, but for long-term durability, environmental resistance, and mechanical stability.
Environmental protection and mechanical reinforcement materials provide a critical layer of reliability by shielding PCB assemblies from moisture, contaminants, vibration, and thermal stress—ensuring consistent performance throughout the product lifecycle.
Why Environmental Protection and Reinforcement Materials are Important?

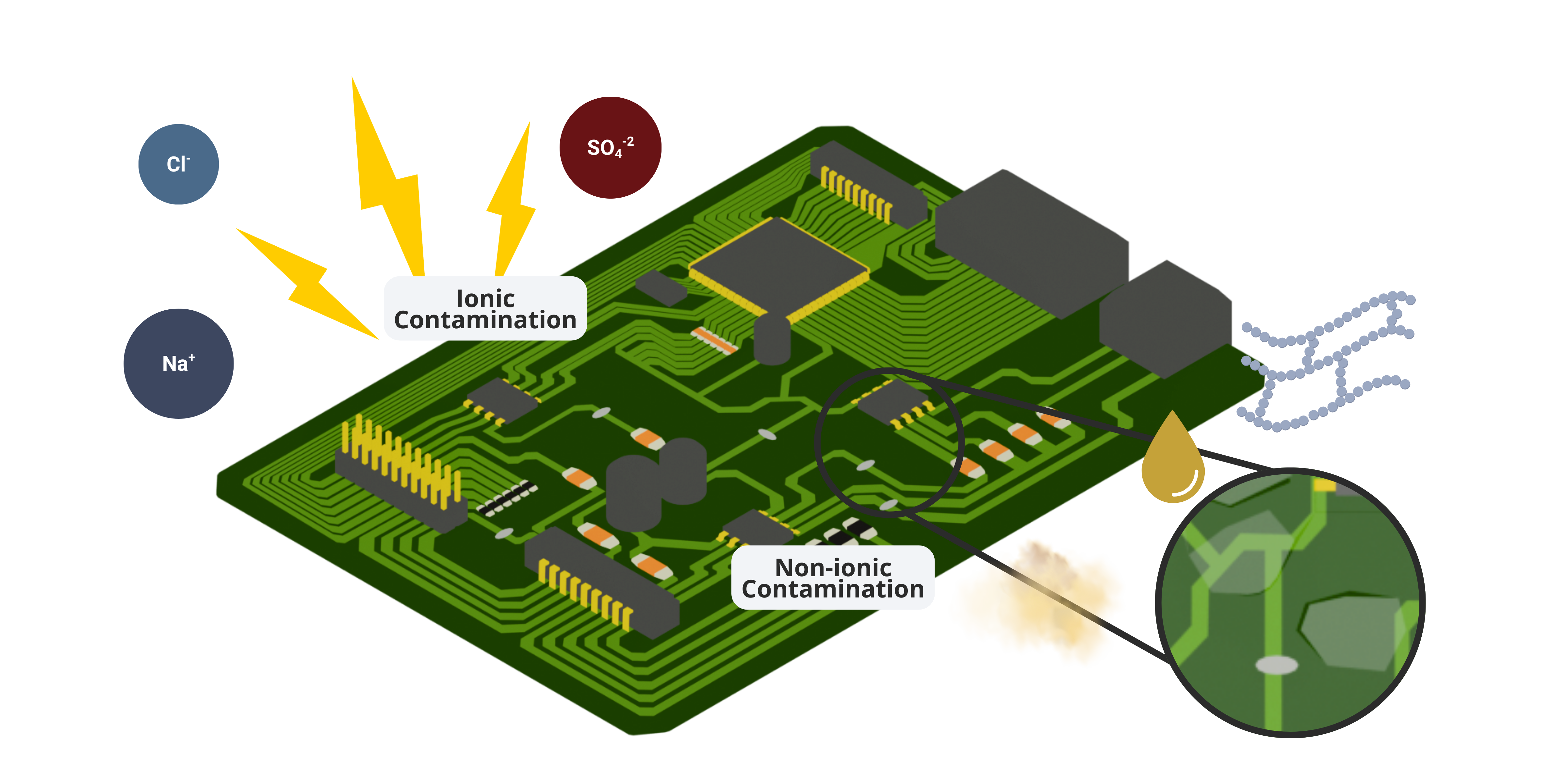

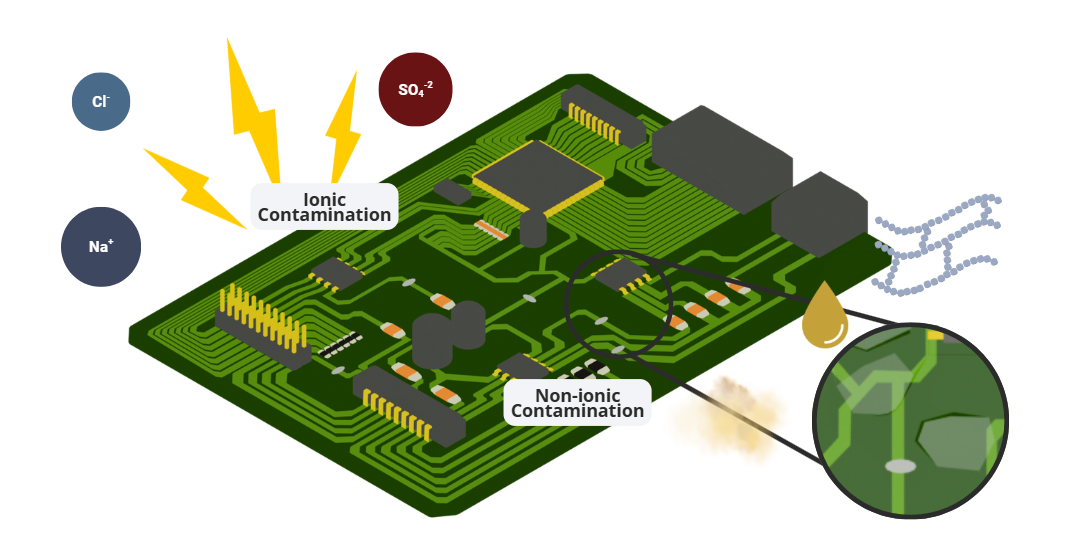

Environmental protection solutions for PCBs are designed to isolate sensitive circuitry from external stressors such as humidity, dust, chemicals, and temperature fluctuations. At the same time, mechanical reinforcement materials enhance the structural integrity of components and solder joints, reducing failure risks caused by vibration, shock, and thermal cycling.
Environmental Protection
- Moisture & Humidity Resistance
Prevents condensation, leakage currents, and electrochemical migration that can lead to circuit failure - Contaminant & Chemical Barrier
Shields against dust, salt spray, airborne pollutants, and corrosive chemicals that degrade performance - Corrosion Prevention
Protects exposed conductors, solder joints, and component leads from oxidation and chemical attack - Thermal & Environmental Stability
Enables reliable operation across wide temperature ranges and fluctuating environmental conditions
Mechanical Reinforcement
- Vibration & Shock Resistance
Reinforces solder joints and components, reducing fatigue and mechanical failure under dynamic loads - Stress Distribution
Helps distribute thermal and mechanical stresses evenly across the assembly - Component Stabilization
Secures large or sensitive components against movement during operation or transport - Extended Product Lifespan
Minimizes wear-out mechanisms caused by mechanical fatigue and environmental exposure
Application Levels of PCB Protection
Effective PCB protection is not achieved through a single material or process, but through a layered protection strategy applied at different levels of the assembly. Each level addresses specific environmental and mechanical risks, allowing engineers to balance performance, cost, and serviceability.

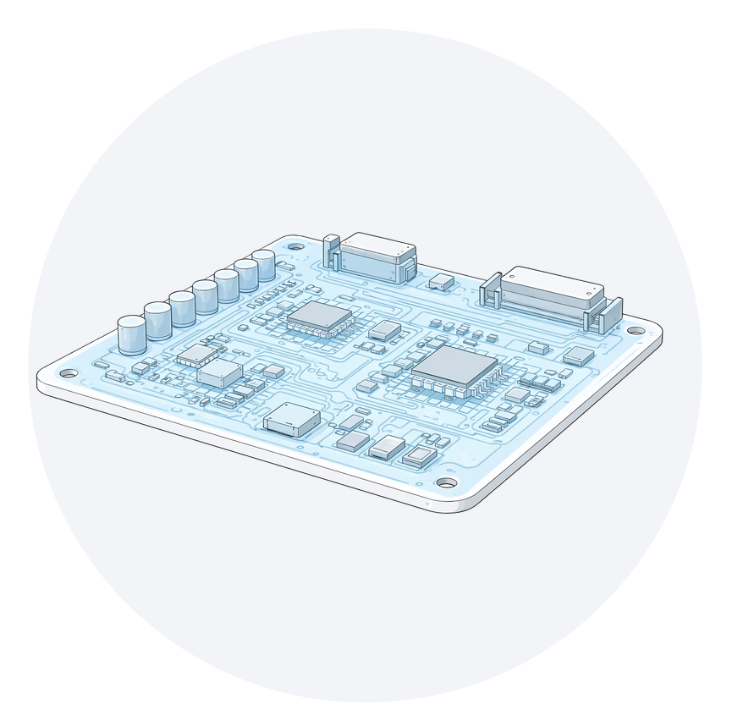

Surface-Level Protection
Surface-level protection involves the application of thin protective layers directly onto the PCB and its components. Materials such as conformal coatings and nano coatings form a uniform barrier that shields against environmental contaminants while preserving the board’s original form factor and accessibility.
These coatings are designed to follow the contours of the PCB, providing effective coverage against moisture, dust, and chemical exposure without significantly impacting weight, thermal performance, or signal integrity. Because of their minimal thickness, they are ideal for high-density electronics where space and reworkability are critical.
Surface-level solutions provide limited mechanical reinforcement and are not intended to absorb significant vibration or structural stress. Instead, they are primarily used for environmental protection, such as resistance to moisture, chemicals, and corrosion, and are widely applied across demanding industries including automotive, aerospace, and industrial electronics.
Lightweight, minimal thickness, maintains reworkability, and provides effective protection against moisture, dust, and contaminants without altering PCB geometry.
Limited mechanical strength, minimal vibration or shock resistance, and may not be sufficient for harsh or high-stress environments.
Consumer electronics, industrial control boards, and automotive electronics in relatively controlled environments.

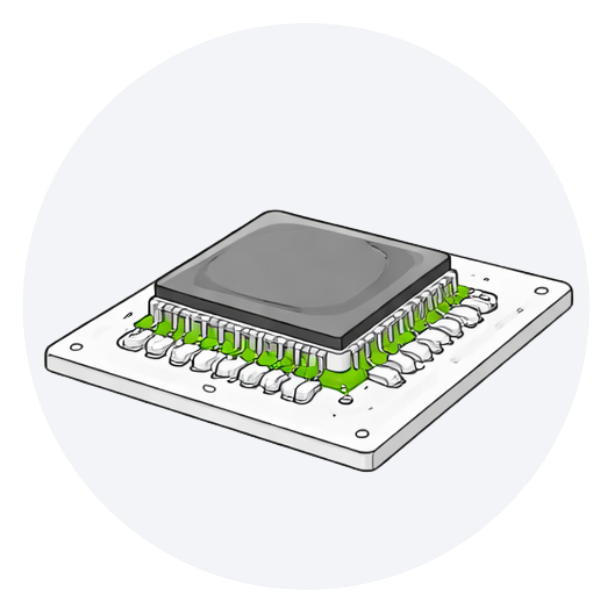

Component-Level Reinforcement
Component-level reinforcement focuses on strengthening critical areas of the PCB, particularly solder joints and interconnections that are vulnerable to mechanical and thermal stress. Underfills are commonly used to fill the gap between components and the substrate, creating a more mechanically robust structure.
By redistributing stress away from solder joints, underfills significantly improve resistance to thermal cycling, vibration, and mechanical shock. This enhances the reliability of fine-pitch components such as BGAs and CSPs, which are especially susceptible to fatigue-related failures.
Unlike surface coatings, this approach is localized, targeting only high-risk components without affecting the entire assembly. This makes it a highly efficient solution for improving durability without adding unnecessary material or weight.
Improves solder joint reliability, enhances resistance to thermal cycling and vibration, and provides targeted mechanical reinforcement for critical components.
Localized protection only, does not provide full environmental sealing, and may add complexity to assembly and rework processes.
Automotive electronics, power modules, high-performance computing systems, and applications with high vibration or thermal cycling demands.
Assembly-Level Protection

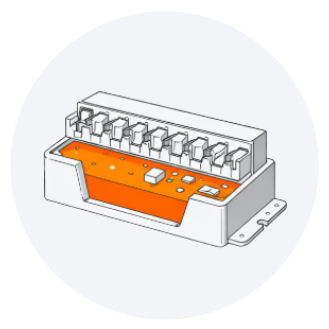

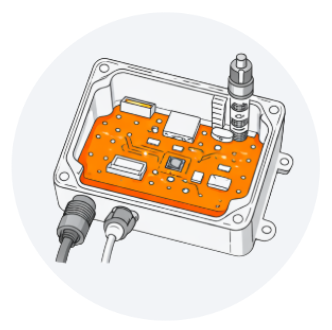

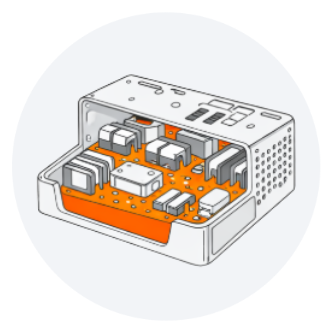

Assembly-level protection provides comprehensive coverage by enclosing part or all of the PCB within protective materials such as potting compounds and encapsulants. These materials create a physical barrier that isolates the electronics from environmental and mechanical stressors.
Potting and encapsulation deliver strong protection against moisture, chemicals, and contaminants, while also providing vibration damping, shock absorption, and structural reinforcement. In addition, thermally conductive formulations can support heat dissipation in high-power applications.
This level of protection is essential for electronics operating in harsh environments. However, it typically reduces reworkability and increases system weight and processing complexity, requiring careful consideration during design and manufacturing.
Complete environmental sealing, strong mechanical reinforcement, excellent vibration and shock resistance, and improved durability in harsh conditions.
Limited or no reworkability, added weight, more complex processing, and potential challenges in thermal expansion management.
Battery management systems (BMS), industrial and outdoor electronics, automotive under-hood systems, and aerospace or defense applications.
Integrated Protection Approach
In many advanced applications, optimal reliability is achieved by combining multiple protection levels. For example, a PCB may use underfill for critical components, conformal coating for surface protection, and selective potting for high-risk areas.
This integrated approach ensures that each failure mode—whether environmental or mechanical—is addressed with the most appropriate material solution.
Conformal and Nano Coatings
Conformal coatings are thin protective films applied to PCB surfaces to guard against environmental exposure.
Nano coatings are ultra-thin protective layers designed for advanced, lightweight protection without impacting form factor.
What they do
They mechanically anchor components to the PCB, reducing stress on solder joints and protecting against vibration, shock, and handling damage.
- Conformal Coating - Provide a continuous protective layer against moisture, dust, chemicals, and corrosion while maintaining electrical insulation.
- Nano Coating - Deliver water repellency and contamination resistance at a microscopic level with minimal thickness and added weight.
Where they are used
IP-rated Assemblies

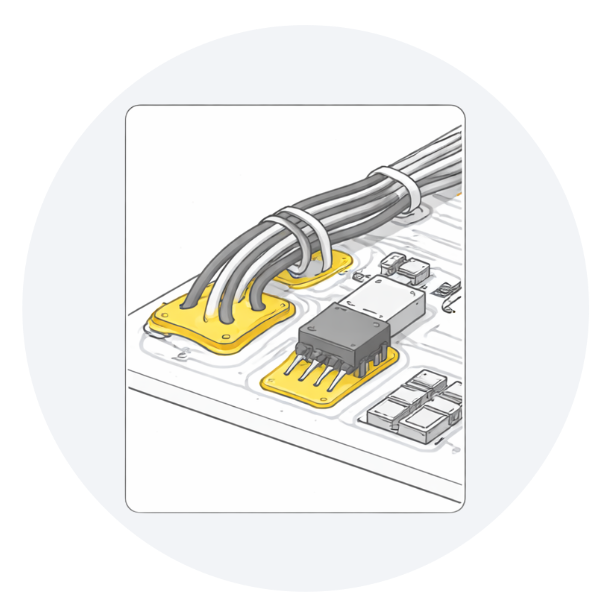

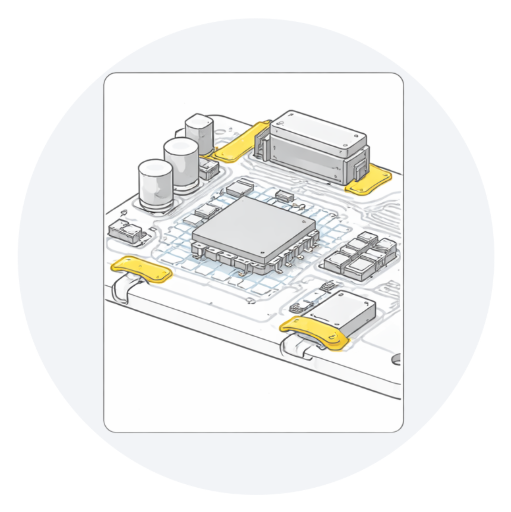

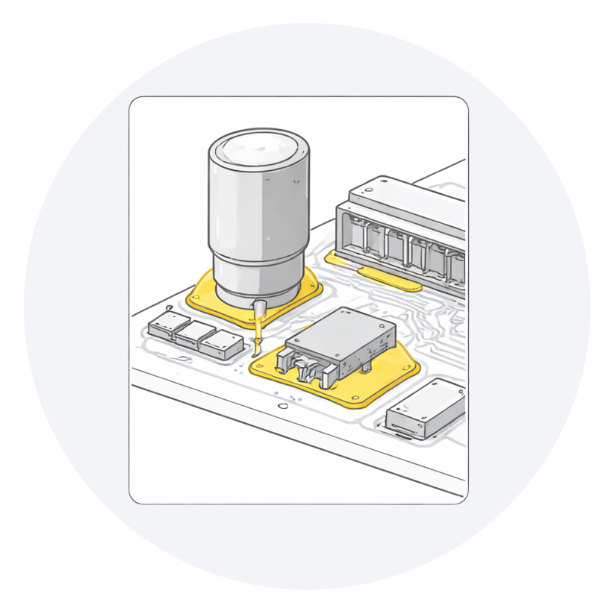

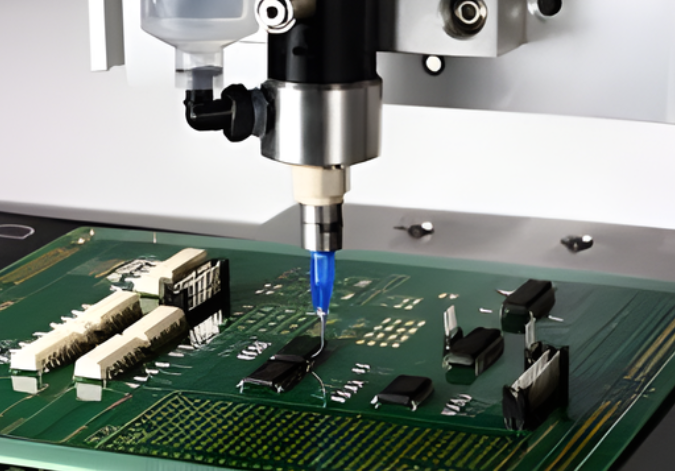

Staking Adhesives

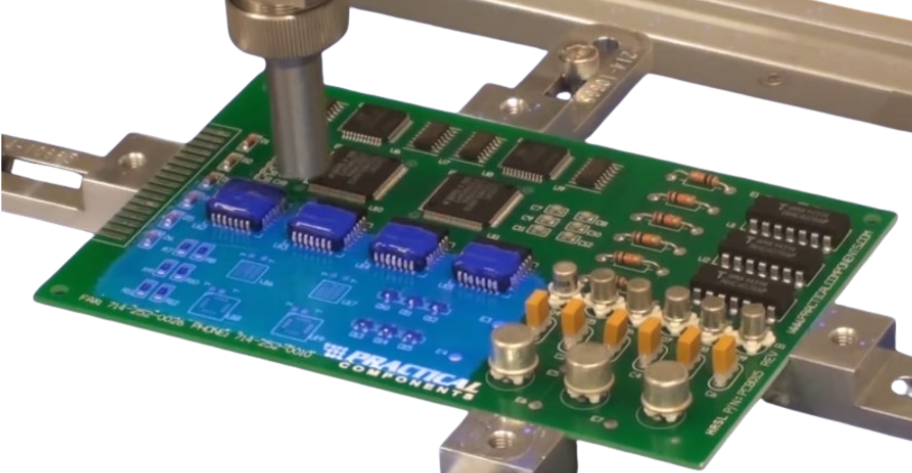

Staking adhesives are used to secure and reinforce components on PCB assemblies, preventing movement and improving mechanical stability under demanding conditions.
Typical materials
Epoxy adhesives, silicone adhesives, UV-curable adhesives, acrylic adhesives
What they do
They mechanically anchor components to the PCB, reducing stress on solder joints and protecting against vibration, shock, and handling damage.
Where they are used
Wearables & Consumer Devices
High-Density PCB Assemblies
Sensitive Sensor Applications
Encapsulation Materials
Encapsulant materials are protective compounds used to fully enclose PCB components, providing robust environmental and mechanical protection.
Globtop, Dam and Fill, Potting compounds, Underfills
Typical materials
Epoxies, polyurethanes, silicones, hybrid resin systems
What they do
They provide complete sealing against moisture, chemicals, and contaminants while offering strong mechanical support, vibration resistance, and enhanced thermal management. They also improve electrical insulation and long-term reliability in harsh environments.
Where they are used

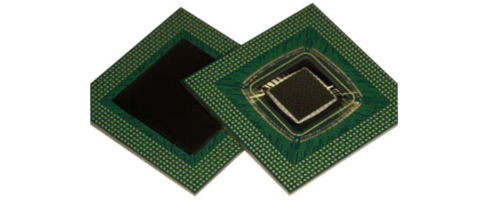

Globtop encapsulation for PCB

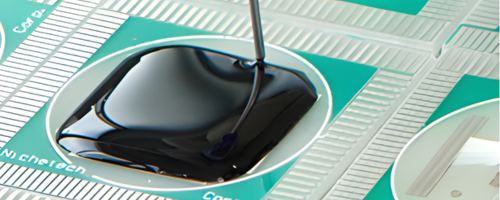

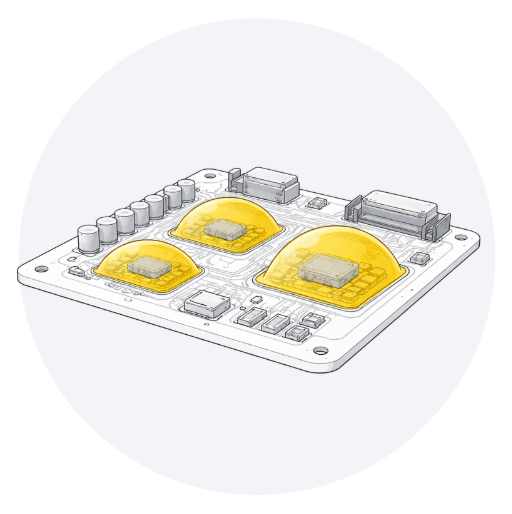

Encapsulates individual components with a resin dome, providing cost-effective protection against mechanical damage and contamination.

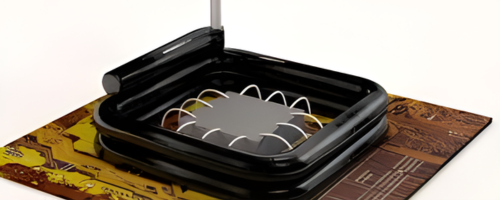

Dam & Fill Encapsulation for PCB

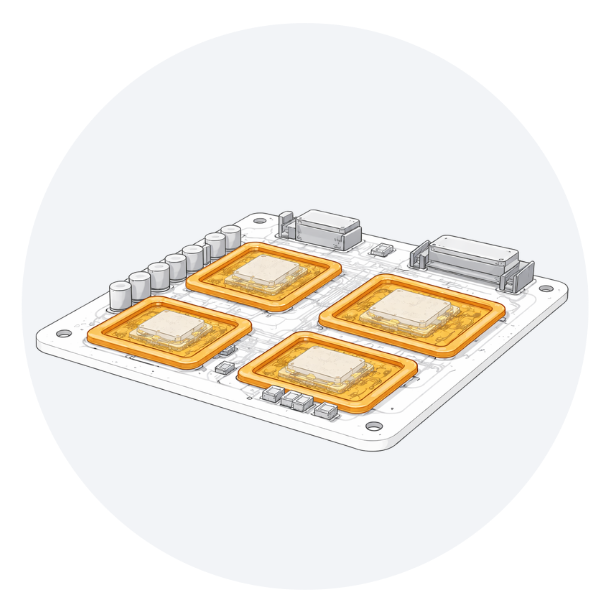

Creates a defined barrier and fills targeted areas for controlled, localized protection without spreading to adjacent components.

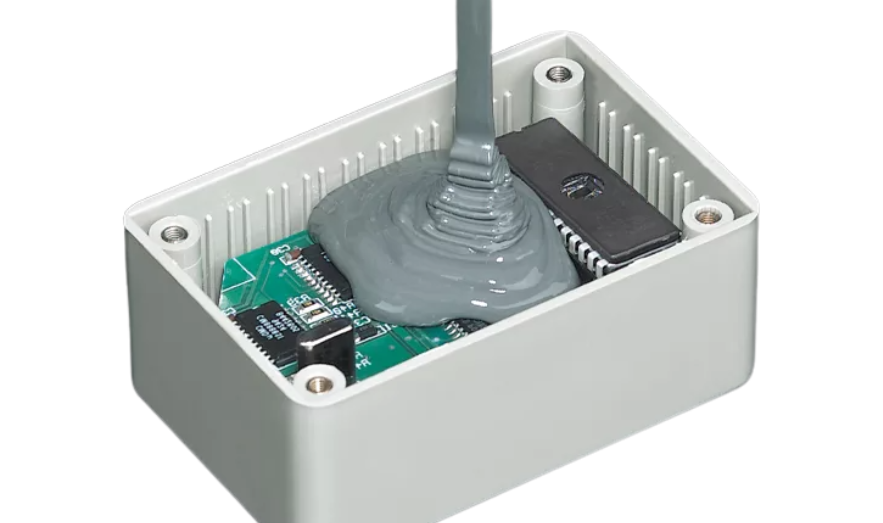

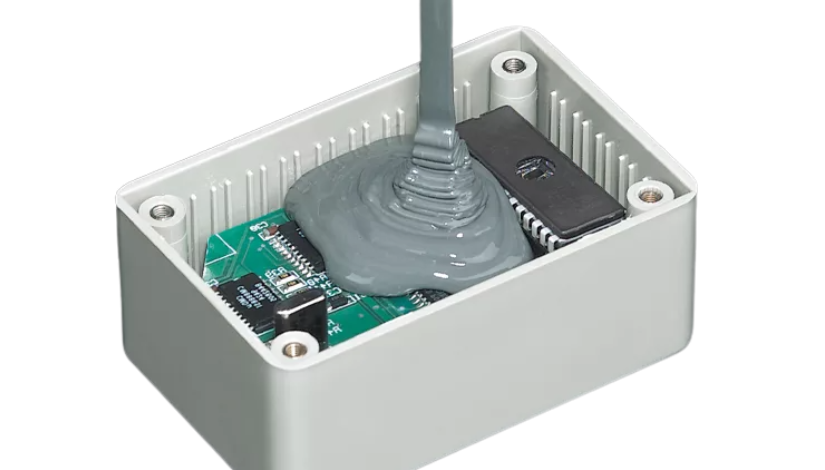

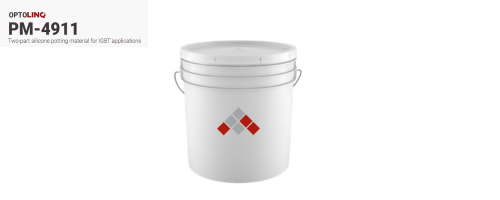

Harsh Environment Electronics Potting
Fully encapsulates the assembly for maximum protection, offering strong resistance to moisture, vibration, and environmental exposure.

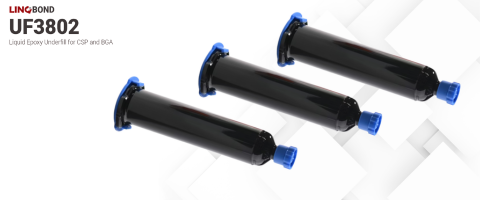

Underfills for BGA, CSP, and Flip-Chip Packages

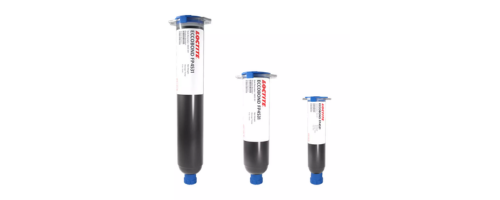

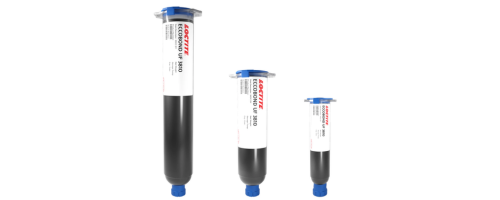

Fills gaps beneath components to reduce stress on solder joints and improve reliability under thermal and mechanical strain.
Protection and Reinforcement for PCB Assembly Solutions
Protecting and reinforcing PCB assemblies is critical to ensuring long-term reliability in demanding operating environments. From moisture and chemical exposure to mechanical stress and thermal cycling, modern electronics require carefully selected material systems that safeguard performance at every stage of the assembly. Learn about leading material suppliers offering advanced solutions for conformal coating, nano-protection, staking, encapsulation, underfill, dam & fill, and potting applications. Each portfolio addresses specific protection and reinforcement needs across PCB architectures, helping manufacturers improve durability, electrical stability, and overall system reliability.
Henkel Potting Solutions
Henkel offers one of the most comprehensive portfolios for PCB protection and reinforcement, spanning staking, encapsulation, underfill, dam & fill, glob top, and full potting systems. Their LOCTITE® and STYCAST™ brands are widely used in high-reliability electronics manufacturing.
Material focus
Epoxy and acrylic staking adhesives, glob top encapsulants, dam & fill systems, capillary underfills, and thermally conductive potting compounds
Typical applications
Component staking, die and chip protection, BGA underfill, chip encapsulation (glob top), PCB edge sealing (dam & fill), and full board potting for environmental protection
CAPLINQ LINQBOND Potting Solutions
CAPLINQ’s LINQBOND portfolio provides a flexible and application-driven range of materials for PCB protection and reinforcement. Designed for manufacturing compatibility and long-term reliability, LINQBOND covers staking, glob top, dam & fill, underfill, and potting systems.
Material focus
Epoxy and polyurethane staking adhesives, glob top encapsulants, dam & fill resins, capillary underfills, and potting compounds tailored for electronics assembly
Typical applications
Component staking, die protection, chip encapsulation, edge sealing, BGA underfill, and full PCB environmental encapsulation

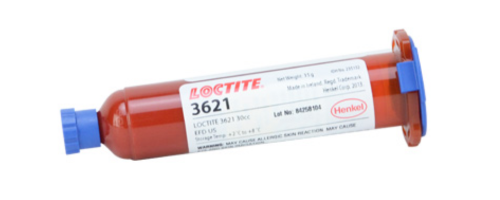

Dymax & Henkel Staking Adhesive Solutions

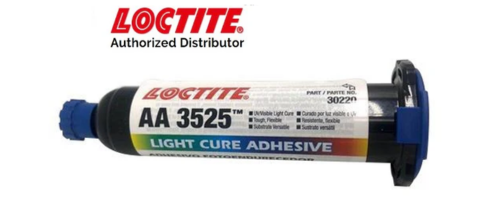

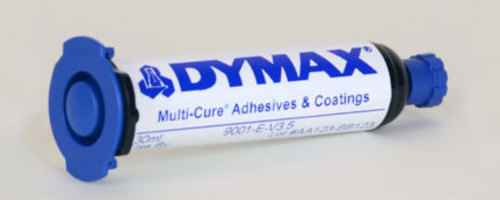

Dymax and Henkel provide high-performance staking adhesive solutions designed for PCB assembly and component reinforcement. These materials are engineered to improve mechanical stability, secure components, and enhance reliability under vibration and thermal stress conditions.
Material focus
Light-curable acrylic adhesives, UV-curable systems, and dual-cure staking materials for precision dispensing and rapid processing
Typical applications
Component staking, wire tacking, connector reinforcement, strain relief, and vibration resistance in electronic assemblies

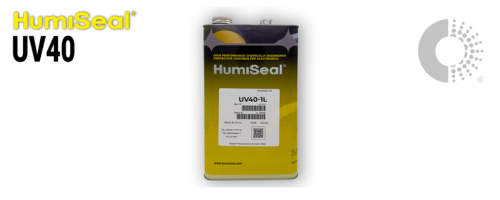

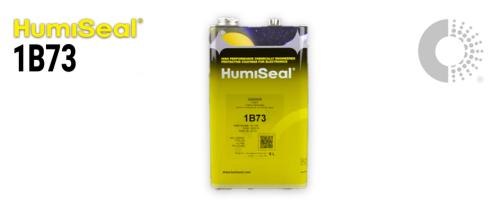

Humiseal Conformal Coating Solutions
Conformal Coatings best suited for your application
An easy way to protect a PCB and increase its longevity is to apply a Conformal Coating . A conformal coating is a thin film specifically designed to safeguard electronic assemblies. It can protect from dust, corrosion, and moisture by creating a protective layer that envelopes the PCB and all its components. Conformal coatings also electrically insulate the PCB, reducing the risk of electrical failures. Dymax develops light-curable materials optimized for rapid curing and precision reinforcement in PCB assembly. Their staking adhesives are widely used to secure components and enhance mechanical reliability.
Material focus
Acrylic, polyurethane, silicone, and UV-curable conformal coatings
Typical applications
Moisture protection, corrosion resistance, chemical shielding, and high-voltage insulation for PCB assemblies
HumiSeal™ Conformal Coatings are based on different chemistries, including acrylics, silicones, synthetic rubbers, and UV-curable acrylates. Each chemistry offers distinct properties suited for specific application requirements, such as electrical insulation, moisture resistance, chemical protection, or mechanical flexibility. These coatings are also available with varied curing mechanisms (e.g. moisture, heat, UV), allowing compatibility with different production speeds and process constraints.
FEATURED PRODUCTS

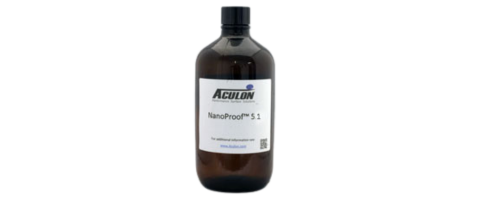

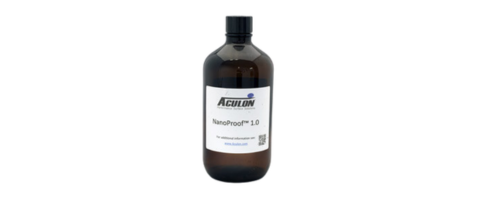

Aculon Nano Coating Solutions
Aculon provides ultra-thin nano-coating solutions that deliver advanced environmental protection without altering the form factor or functionality of PCB assemblies. Their coatings are ideal for miniaturized and sensitive electronics.
Material focus
Fluoropolymer-based nano coatings and surface modification technologies
Typical applications
Waterproofing, corrosion resistance, and contamination prevention for compact and high-density PCB assemblies
FEATURED PRODUCTS
Frequently Asked Questions About PCB Protection and Reinforcement
Do conformal coatings make the electronics waterproof?
Conformal coatings provide strong resistance to moisture, humidity, and contaminants, but they do not make electronics fully waterproof. They are designed to protect against environmental exposure rather than complete immersion. For waterproofing, full encapsulation, potting, or other coatings are typically required.
How do I choose the right protection method for my PCB assembly?
The right method depends on your operating environment, mechanical stresses, thermal conditions, and design complexity. Conformal coatings are ideal for lightweight protection, staking adhesives add mechanical stability, underfills improve solder joint reliability, and potting provides maximum environmental sealing for harsh conditions.
Can multiple protection materials be used in a single PCB assembly?
Yes, many PCB assemblies use a combination of materials to address different risks. For example, underfill may be used on BGAs, staking adhesives on large components, and a conformal coating applied across the board for overall environmental protection.
When is full potting necessary?
Full potting is necessary when PCB assemblies are exposed to extreme conditions such as high moisture, chemicals, vibration, or temperature fluctuations. It is commonly used in automotive, industrial, and outdoor applications where maximum protection and durability are required.
