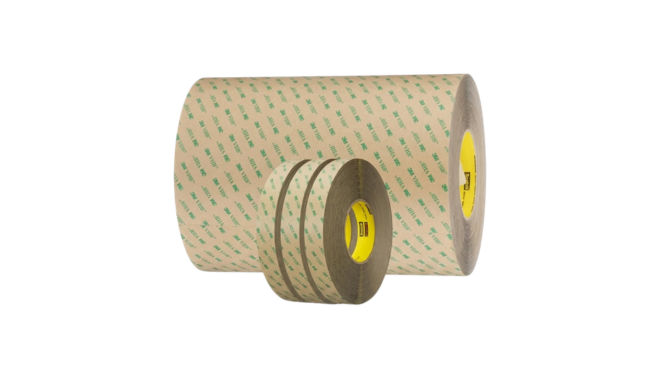

3M™ VHB™ Transfer Tape F9473PC

Harmonization Code : 3506.91.90.99 |   Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
Main features
  • Transparent, double sided, 10 mil (0.26 mm) VHB™ transfer tape
  • Short term temperature tolerance of up to 500 °F (260 °C)
  • Operating temperature tolerance of up to 300°F (149°C)

Product Description

3M™ VHB™ Adhesive Transfer Tape F9473PC is a 10 mil (0.26 mm) transparent, double-sided tape engineered with 3M™ High Performance Acrylic Adhesive 100MP for exceptional bond strength and long-term durability. Combining a thin profile with powerful adhesion, it delivers reliable performance across a wide range of indoor and outdoor applications. The tape is mounted on a 58 lb polycoated kraft (PCK) liner for easy handling and precise application.

Product Key Features

  • Utilizes 3M™ Acrylic Adhesive 100MP for superior bonding performance
  • 10 mil thickness provides strong bonds while maintaining a low-profile design
  • Withstands up to 500°F (260°C) short-term and 300°F (149°C) continuous use
  • Excellent resistance to chemicals, UV exposure, and solvents

Applications

  • Replacing mechanical fasteners such as rivets, spot welds, and screws
  • Bonding decorative metal trim and components
  • Attaching flexible printed circuits (FPC) to aluminum stiffeners or heat sinks
  • Panel-to-frame bonding in industrial assemblies
  • General industrial joining and metal fabrication
  • Indoor and outdoor bonding applications requiring high strength and durability
Product Family
3M-F9473PC
19
55
0.26
Transparent

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 2 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Adhesive Layer
Adhesive Layer
A layer that is applied to one surface or both to bind items together and resist their separation
 Acrylic
Density (g) 1.012 g/cm3
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
 260 μm
