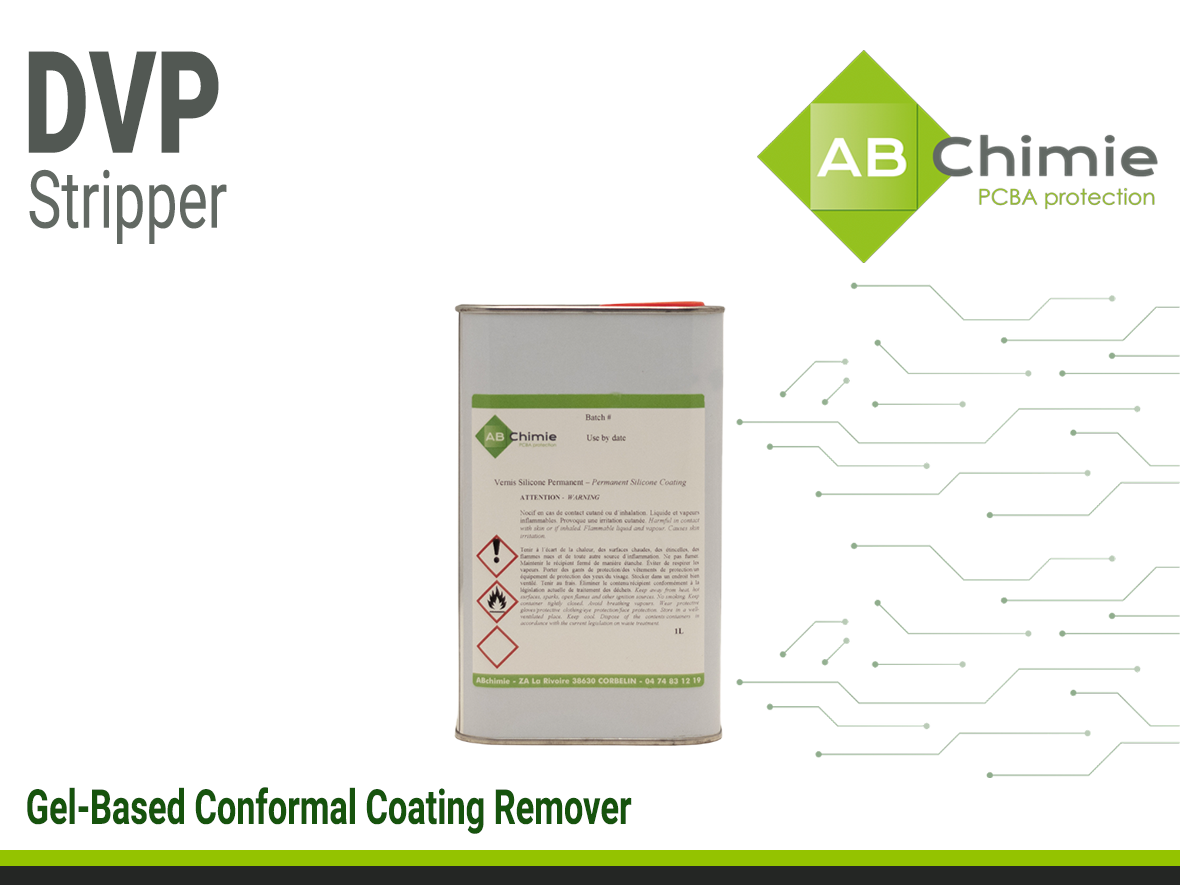

ABchimie DVP Permanent Coating Stripper

Harmonization Code : 3814001000 |
Main features
  • Designed for controlled application
  • Strong solvency
  • Easy to apply and remove

Product Description

ABchimie DVP is a powerful gel‑based solvent system specifically developed to remove conformal coatings that are resistant to standard solvents. It is particularly effective for stripping coatings where component replacement, repair, or rework is required. Its high‑efficiency formulation makes it suitable for use on tough, solvent‑resistant chemistries, including UV‑curable materials and thin resin layers.

Due to the presence of flammable solvents, DVP must not be applied to live electrical equipment or near ignition sources. Users should consult the appropriate MSDS before handling the product.

Product Key Features

  • Highly effective at removing solvent‑resistant conformal coatings
  • Gel formulation ensures strong adhesion to vertical and complex surfaces
  • Suitable for dismantling or reworking PCBs with hardened coatings
  • Designed for controlled application to minimize spreading

Applications

  • Removal of highly resistant conformal coatings such as ABchimie526UV and ABchimie746 E UV
  • Stripping thin resin layers during PCB repair or rework
Product Family
ABC-DVP
1L Bulk

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
 1
Thermal Properties
Flash Point
Flash Point
The flashpoint of a solvent is the lowest possible temperature at which it can vaporize to form an ignitable vapor.

Flashpoint is often confused with “autoignition temperature”, which is the temperature at which a solvent ignites without an ignition source.
 23 °C

Additional Information

Instructions for Use

  1. Dispense with a silk brush or a syringe the gel where you want to remove the coating.
  2. Leave the gel for a few minutes depending the thickness you want remove.
  3. The coating will lift off and you will remove easily the coating.
  4. Rinse with SND solvent.
  5. Proceed to repair.
  6. Clean.
  7. Recoat if necessary.
