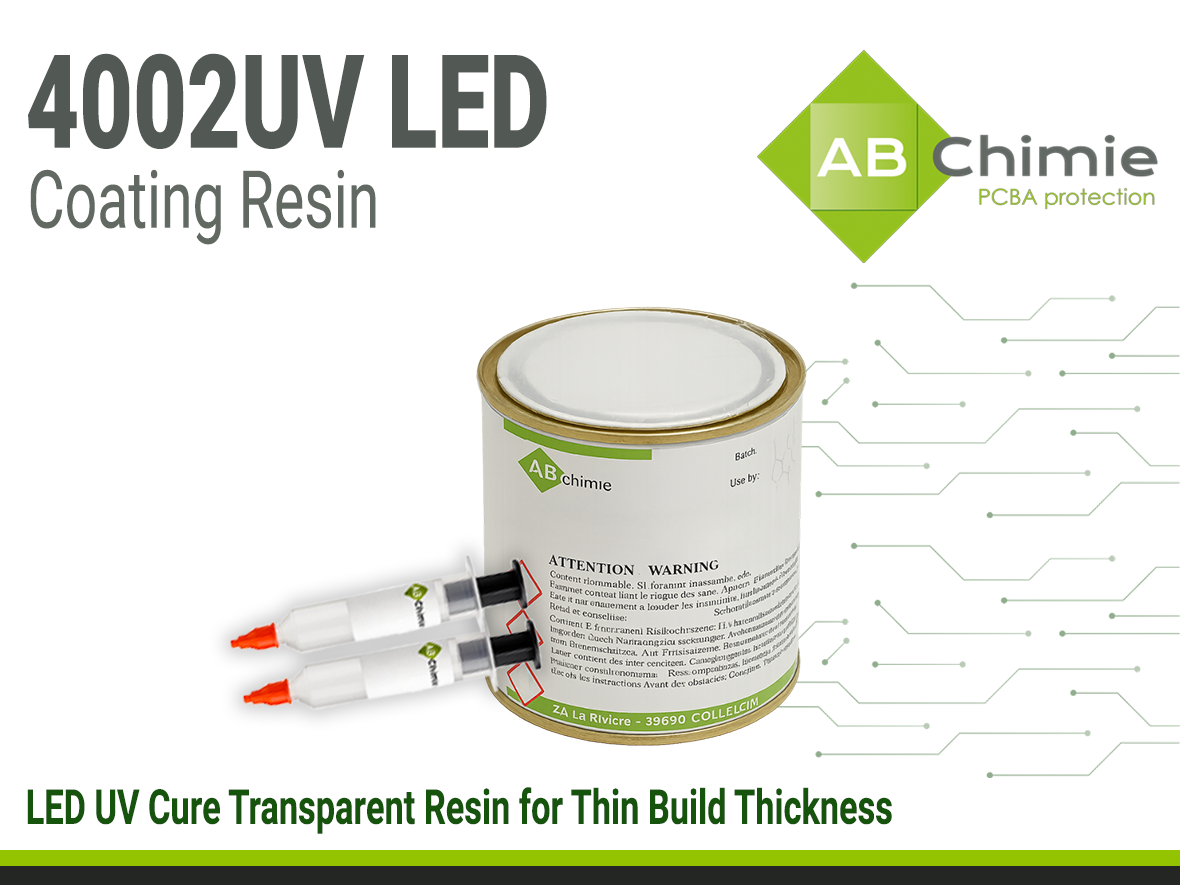

ABchimie 4002UV LED Cure Resin
- One-component
- Fast UV LED Curing
- Urethane Acrylate Coating
Product Description
ABChimie® 4002UV LED is a transparent resin conformal coating designed to provide mechanical and environmental protection to electronic components and assemblies. Its viscosity allows for thin build thickness (up to 1mm). ABChimie 4002UV is ideal for PCB protection.
ABChimie 4002UV LED is a urethane acrylate that exhibits excellent adhesion to various substrates, including flexible materials such as plastics. One of its advantages is that it cures rapidly under UV LED light (395 nm), has zero VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 4002UV is in full compliance with REACH and RoHS regulations.
Product Key Features
- Transparent UV-curing resin
- Thin film thickness
- Excellent adhesion to PCBs and plastics
- Fast UV cure for high volume production
- Solvent-free formulation (no VOCs)
- Silicone free
- LED Curing for worker / environmental safety
Applications
- Conformal coating for Printed circuit assemblies.
- Protection for plastic casings or covers.
- Protection for optically clear applications ex. lenses.
Technical Specifications
| General Properties | |
| Appearance Appearance Appearance at room temperature. | Clear liquid |
| Pot Life Pot Life Pot life is the amount of time it takes for the viscosity of a material to double (or quadruple for lower viscosity materials) in room temperature after a material is mixed. It is closely related to work life but it is not application dependent, less precise and more of a general indication of how fast a system is going to cure. | 12 months |
| Physical Properties | |
| Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application | 2000 mPa.s |
Additional Information
Frequently Asked Questions About ABChimie® 4002 UV LED
What are typical applications for ABChimie® 4002 UV LED?
ABChimie® 4002 UV LED is a UV-curable conformal coating designed to protect printed circuit board assemblies (PCBs) and components in demanding manufacturing environments, including:
- Automotive electronics (e.g., control units, sensors)
- Industrial automation (e.g., motor drives, PLCs)
- Consumer electronics (e.g., smart devices, wearables)
- Other high-reliability electronic assemblies
What is the recommended curing method for ABChimie® 4002 UV LED?
ABChimie® 4002 UV LED is UV-curable and should be cured with a mercury lamp. The minimum UVA dose is 3000 mJ/cm² for a 1 mm thickness. The mercury lamp-curable version is ABChimie® 4002 UV LED. Higher UVA doses do not negatively affect final properties.
Learn More About ABChimie® 4002 UV LED
ABChimie® 4002 UV LED is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable conformal coating delivers rapid curing, excellent electrical insulation, and strong environmental resistance—ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.
Main Advantages of ABChimie 4002 UV LED
ABChimie® 4002 UV LED cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.
ABChimie® 4002 UV LED provides excellent mechanical protection. This hardness helps resist scratches, abrasion, and minor impacts, ensuring long-term stability of encapsulated components.
ABChimie® 4002 UV LED forms a clear, optically transparent protective layer that allows excellent visibility of underlying components. The coating maintains transparency after curing, supporting applications where visual inspection, light transmission, or component identification is required, while still providing durable protection.
ABChimie® 4002 UV LED bonds strongly to flexible substrates, including plastics and polymer-based PCBs. Its adhesion ensures reliable protection even on surfaces that bend or flex, ideal for wearables, flexible electronics, and lightweight assemblies.
How to Choose a Resin
Selecting the most suitable resin requires consideration of key factors:
- ✔ Norms & Compliance
- ✔ Environment / Exposure Conditions
- ✔ Repairability
- ✔ Electrical Performance
- ✔ Application Method
- ✔ Operating Temperature
Compliance You Can Trust ✅
ABChimie® 4002 UV LED meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:
- REACH Compliant
- RoHS 2011/65/EU Compliant
Curing Tip: ABChimie 4002 UV LED cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
Ref. Leistung / ref power ln % over wavelength in nm
Ref. Leistung / ref power ln % over wavelength in nm
Key Curing Properties
LED
395 nm
3000 mJ/cm2
Coating Thickness
1 mm
Typical property values shown for reference only and should not be used as specifications.
Alternative to Mercury Lamp Curing of ABChimie 4002 UV LED
ABChimie 4002 UV LED is also available in the mercury lamp version, which cures with a mercury lamp.
ABChimie 4002 UV [Go to 4002 UV Product Page↗]
- Thixotropic resin
- Fluorescent under UV light
- Excellent adhesion to flexible substrates
- Immediate curing with UV exposure
Best suited for: High-speed process looking to use LED light for curing
