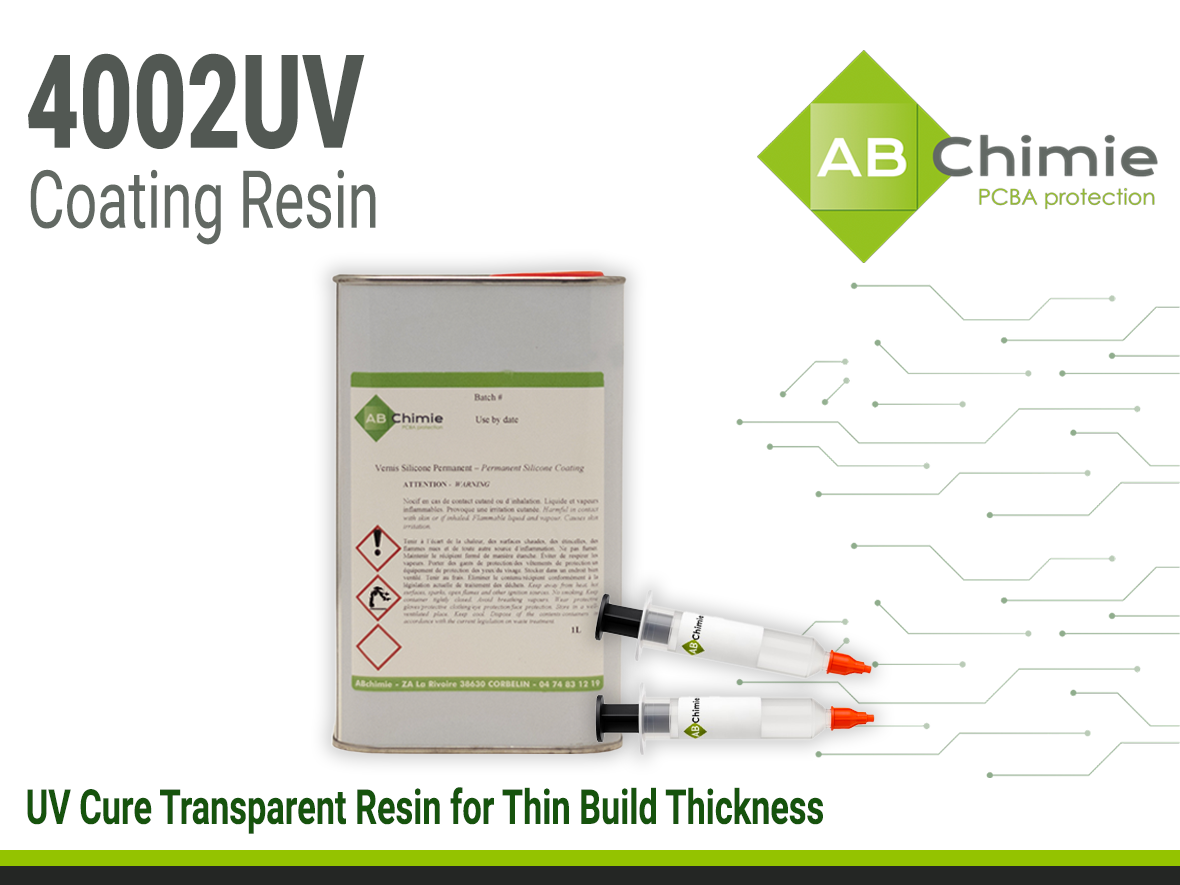

ABchimie 4002UV UV Cure Resin

Harmonization Code : 3906909090 | Acrylic polymers in primary form Others>Others

Main features

One-component
Fast UV Curing
Urethane Acrylate Coating

Product Description

ABChimie® 4002UV is a transparent resin conformal coating designed to provide mechanical and environmental protection to electronic components and assemblies. Its viscosity allows for thin build thickness (up to 1mm). ABChimie 4002UV is ideal for PCB protection.

ABChimie 4002UV is a urethane acrylate that exhibits excellent adhesion to various substrates, including flexible materials such as plastics. One of its advantages is that it cures rapidly under UV light, has zero VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 4002UV is in full compliance with REACH and RoHS regulations.

Product Key Features

Transparent UV-curing resin
Thin film thickness
Excellent adhesion to PCBs and plastics
Fast UV cure for high volume production
Solvent-free formulation (no VOCs)
Silicone free

Applications

Conformal coating for Printed circuit assemblies.
Protection for plastic casings or covers.
Protection for optically clear applications ex. lenses.

Specifications
Additional Information

Technical Specifications

General Properties
Appearance Appearance Appearance at room temperature.	Clear liquid
Physical Properties
Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application	2000 mPa.s

Additional Information

Frequently Asked Questions About ABChimie® 4002 UV

What are typical applications for ABChimie® 4002 UV?

ABChimie® 4002 UV is a UV-curable conformal coating designed to protect printed circuit board assemblies (PCBs) and components in demanding manufacturing environments, including:

Automotive electronics (e.g., control units, sensors)
Industrial automation (e.g., motor drives, PLCs)
Consumer electronics (e.g., smart devices, wearables)
Other high-reliability electronic assemblies

Why choose ABChimie® 4002 UV?

ABChimie® 4002 UV delivers rapid UV curing, excellent electrical insulation, optical transparency, and strong adhesion to flexible substrates. It supports high-throughput manufacturing while providing durable protection for sensitive components.

What is the shelf life of ABChimie® 4002 UV?

ABChimie® 4002 UV has a shelf life of 12 months when stored at 5–30°C in tightly sealed containers. Prior to use, allow the product to equilibrate for 24 hours at 18–32°C for optimal performance.

What happens after the shelf life?

Using ABChimie® 4002 UV past its shelf life may alter viscosity, affecting uniformity and application performance. Always use an in-date product for reliable results.

What is the recommended curing method for ABChimie® 4002 UV?

ABChimie® 4002 UV is UV-curable and should be cured with a mercury lamp. The minimum UVA dose is 1000 mJ/cm² for a 100 μm thickness. The mercury lamp-curable version is ABChimie® 4002 UV. Higher UVA doses do not negatively affect final properties.

What is the maximum thickness for ABChimie® 4002 UV?

ABChimie® 4002 UV can be applied up to 1mm.

What safety precautions should I take?

Use ABChimie® 4002 UV in a well-ventilated area, avoid skin and eye contact, and follow all Safety Data Sheet (SDS) guidelines. Keep away from open flames and sparks.

Can I adjust the viscosity?

ABChimie® 4002 UV can be customized for variable viscosities. Contact our team for guidance.

Learn More About ABChimie® 4002 UV

ABChimie® 4002 UV is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable conformal coating delivers rapid curing, excellent electrical insulation, and strong environmental resistance—ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.

Main Advantages of ABChimie 4002 UV

UV Curing

ABChimie® 4002 UV cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.

MECHANICAL PROTECTION

ABChimie® 4002 UV provides excellent mechanical protection. This hardness helps resist scratches, abrasion, and minor impacts, ensuring long-term stability of encapsulated components.

OPTICAL TRANSPARENCY

ABChimie® 4002 forms a clear, optically transparent protective layer that allows excellent visibility of underlying components. The coating maintains transparency after curing, supporting applications where visual inspection, light transmission, or component identification is required, while still providing durable protection.

EXCELLENT ADHESION ON PLASTIC SUBSTRATES

ABChimie® 4002 UV bonds strongly to flexible substrates, including plastics and polymer-based PCBs. Its adhesion ensures reliable protection even on surfaces that bend or flex, ideal for wearables, flexible electronics, and lightweight assemblies.

How to Choose a Resin

Selecting the most suitable resin requires consideration of key factors:

✔ Norms & Compliance
✔ Environment / Exposure Conditions
✔ Repairability
✔ Electrical Performance
✔ Application Method
✔ Operating Temperature

Compliance You Can Trust ✅

ABChimie® 4002 UV meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:

REACH Compliant
RoHS 2011/65/EU Compliant

Curing Tip: ABChimie 4002 UV cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
