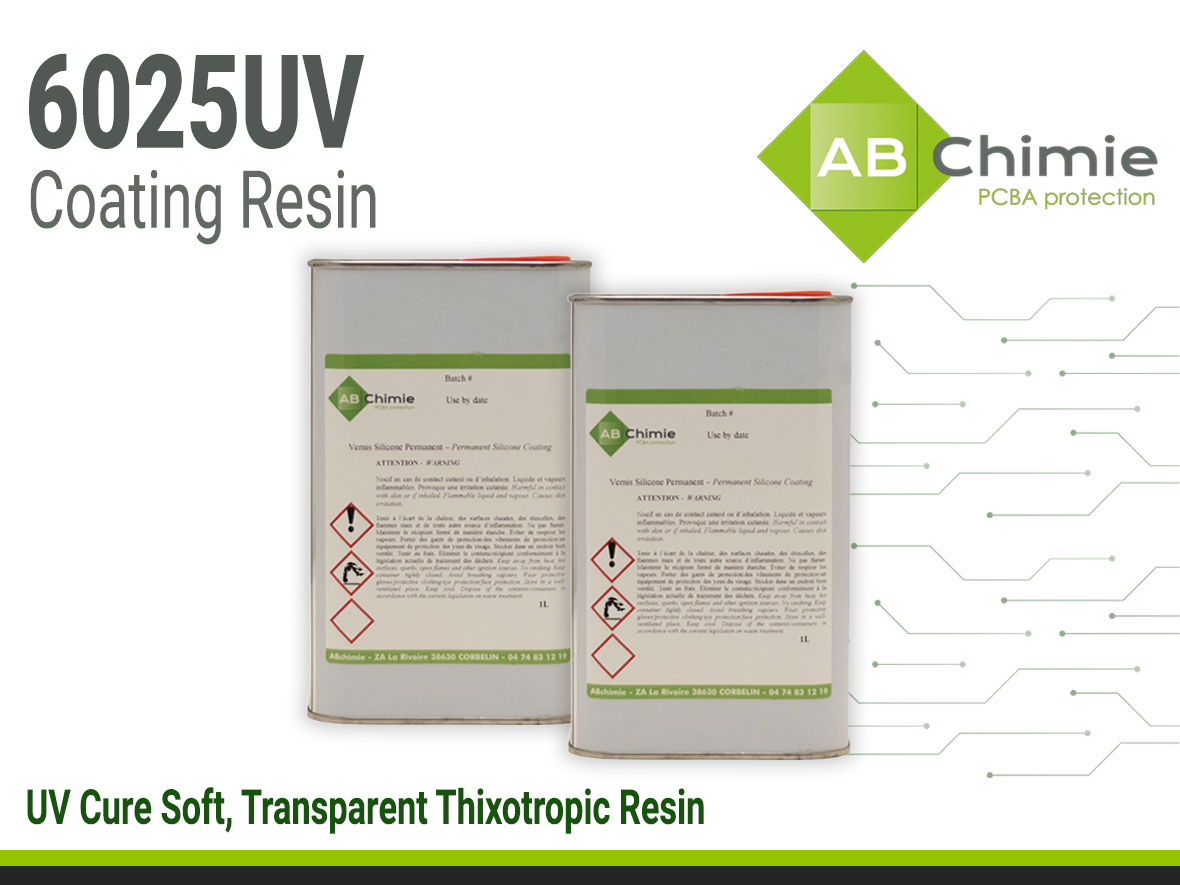

ABchimie 6025UV Soft Thixotropic Resin
- One-component
- Fast UV Curing
- Shock Absorbing
Product Description
ABChimie® 6025UV is a soft, transparent resin coating designed to provide mechanical and environmental protection to electronic components and assemblies. Its thixotropic quality allows for controlled application with high thicknesses (up to 4mm) without sagging. The resin is soft, which allows it to absorb shock easily. These qualities make it ideal for encapsulation or localized protection in applications where shock absorption is required.
ABChimie® 6025UV is acrylic-based and has excellent adhesion to many substrates, including flexible ones like plastics. One of its advantages is that it cures rapidly under UV light, has zero VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 6025UV is in full compliance with REACH and RoHS regulations.
Product Key Features
- Transparent, thixotropic UV-curing resin
- Shock absorbing
- Allows for thick, controlled application without sagging
- Fast UV cure for high-sp
- Solvent-free formulation (no VOCs)
Applications
- Encapsulation of electronic components requiring high volumes, localized protection, and a thick coating
- Sensors on PCBs, wire-bonded chips, and reinforcement of solder joints.
- Can be used to seal plastic casings on PCBs.
- Ideal for applications that might be exposed to impacts, drops, or vibrations.
- Printed circuit assemblies.
Technical Specifications
| General Properties | |
| Appearance Appearance Appearance at room temperature. | Thixotropic translucent liquid |
| Density (g) | 1.08 g/cm3 |
| Thermal Properties | |
| Flash Point Flash Point The flashpoint of a solvent is the lowest possible temperature at which it can vaporize to form an ignitable vapor. Flashpoint is often confused with “autoignition temperature”, which is the temperature at which a solvent ignites without an ignition source. | 100 °C |
| Mechanical Properties | |
| Durometer (Shore A) | 60 |
Additional Information
Frequently Asked Questions About ABChimie® 6025 UV
What are typical applications for ABChimie® 6025 UV?
ABChimie® 6025 UV is a UV-curable resin designed to protect printed circuit board assemblies (PCBs) and components in demanding manufacturing environments, including:
- Automotive electronics (e.g., control units, sensors)
- Industrial automation (e.g., motor drives, PLCs)
- Consumer electronics (e.g., smart devices, wearables)
- Other high-reliability electronic assemblies
Learn More About ABChimie® 6025 UV
ABChimie® 6025 UV is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable resin delivers rapid curing, excellent electrical insulation, and strong environmental resistance—ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.
Main Advantages of ABChimie 6025 UV
ABChimie® 6025 UV cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.
ABChimie® 6025 UV cures to a Shore hardness of A60 , providing excellent mechanical protection. This hardness helps resist scratches, abrasion, and minor impacts, ensuring long-term stability of encapsulated components.
ABChimie® 6025 UV is thixotropic: it maintains a stable, non-running consistency at rest but flows easily under shear during application. This ensures precise placement, minimal sagging, and uniform coverage before rapid UV curing.
ABChimie® 6025 UV bonds strongly to flexible substrates, including plastics and polymer-based PCBs. Its adhesion ensures reliable protection even on surfaces that bend or flex, ideal for wearables, flexible electronics, and lightweight assemblies.
How to Choose a Resin
Selecting the most suitable resin requires consideration of key factors:
- ✔ Norms & Compliance
- ✔ Environment / Exposure Conditions
- ✔ Repairability
- ✔ Electrical Performance
- ✔ Application Method
- ✔ Operating Temperature
Compliance You Can Trust ✅
ABChimie® 6025 UV meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:
- REACH Compliant
- RoHS 2011/65/EU Compliant
Curing Tip: ABChimie 6025 UV cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
Ref. Leistung / ref power ln % over wavelength in nm
Ref. Leistung / ref power ln % over wavelength in nm
Key Curing Properties
Mercury
200-400 nm
1500 mJ/cm2
1 mm
Typical property values shown for reference only and should not be used as specifications.
Alternative to Mercury Lamp Curing of ABChimie 6025 UV
ABChimie 6025 UV is also available in the LED - version, which cures by LED Lamp.
ABChimie 6025 UV LED [Go to 6025 UV LED Product Page↗]
- Thixotropic resin
- Fluorescent under UV light
- Excellent adhesion to flexible substrates
- Immediate curing with UV LED exposure
Best suited for: High-speed process looking to use LED light for curing
