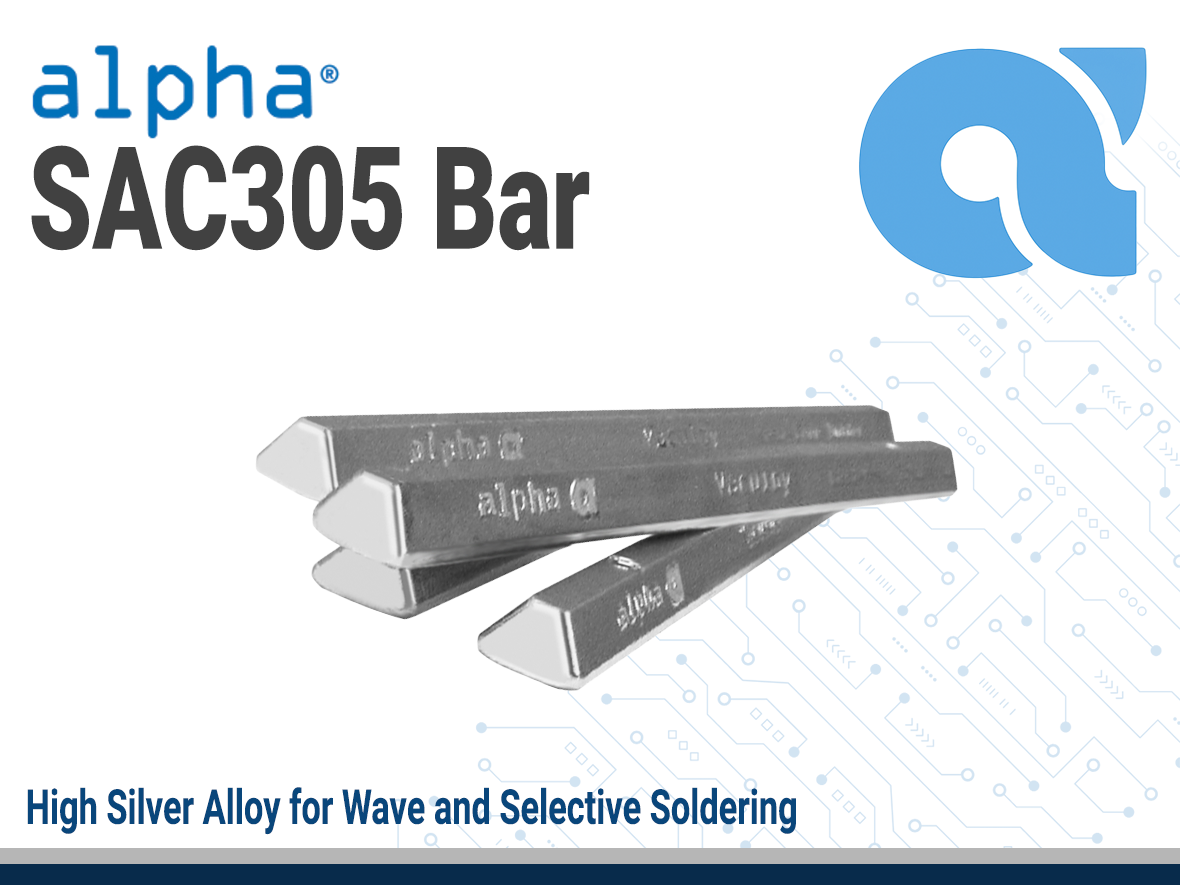

ALPHA Vaculoy SAC305 Solder Bar

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Fast wetting
  • Excellent solderability
  • Very good drainage

Product Description

ALPHA SAC305 Solder Bar is a high-performance, lead-free alloy designed as a direct replacement for the industry-standard Sn63Pb37. It is the flagship of the SAC series (Tin-Silver-Copper), widely recognized for its excellent wetting characteristics and joint reliability in wave soldering and surface mount applications.

Product Key Features

  • Produced using the proprietary Vaculoy alloying process, which removes impurities—specifically oxides—to ensure low drossing and high-quality solder joints.
  • Fully lead-free and suitable for modern electronics manufacturing where environmental standards are a priority.
  • Fast wetting, in back to back tests 0.65s compared to 1.00s, for Sn/Cu-based materials
  • Excellent solderability due to fast wetting speed

Applications

  • Wave and selective soldering applications
Product Family
ALPHA SAC305
1kg Bar

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 4 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

Thermal Properties
Melting Temperature
Melting temperature 217 - 219 °C
Specific Heat Capacity
Specific Heat Capacity
Specific heat capacity is the amount of heat energy required to raise the temperature of a substance per unit of mass. The specific heat capacity of a material is a physical property. It is also an example of an extensive property since its value is proportional to the size of the system being examined.
 0.232 J/(g⋅°C)
General Properties
Density (g) 7.37 g/cm3
