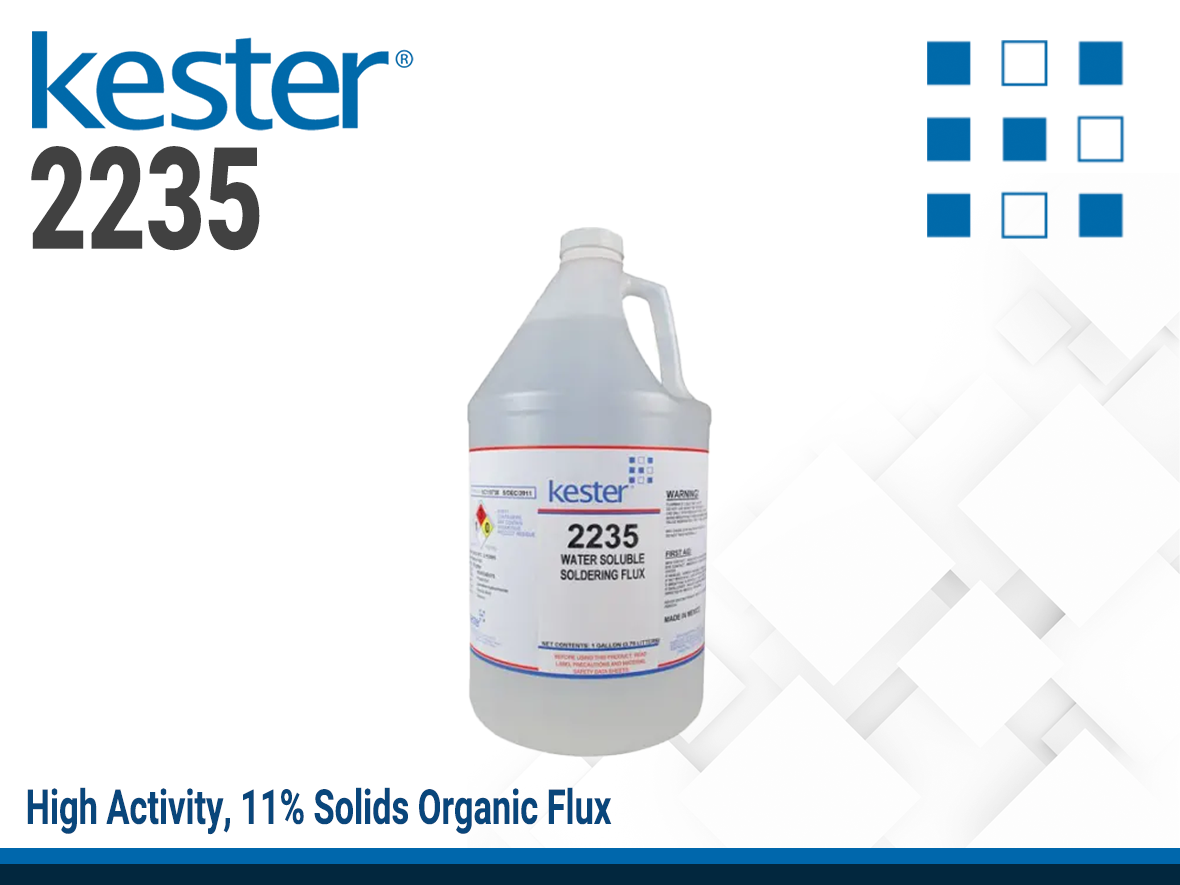

KESTER 2235 Soldering Flux
- Minimizes icicling and bridging
- Compatible with most masks and laminates
- High activity
Product Description
KESTER 2235 is a high activity 11% solids organic flux designed for automated soldering of circuit board assemblies where a more aggressive flux is required, but reliability considerations are paramount. 2235, a flux with comparably low solids in respect to other fluxes in the same category, will produce fewer skips on the bottom side surface mount pads. The residue after soldering is effectively removed in standard water cleaning systems. Although possessing high activity, boards exhibit high ionic cleanliness after water cleaning, exceeding the requirements of MIL-P-28809. No offensive odors or excessive smoke are emitted during soldering. The flux will not create excessive foaming in standard water cleaning systems. 2235 is classified as ORH1.
Product Key Features
- Minimizes icicling and bridging
- Chemically compatible with most masks and laminates
- High activity
- Classified as ORH1.
Applications
- Highly recommended for surface mount PCBs.
Technical Specifications
| General Properties | |
| Solids | 11 % |
| Specific Gravity Specific Gravity Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume. For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless. | 0.856 |
