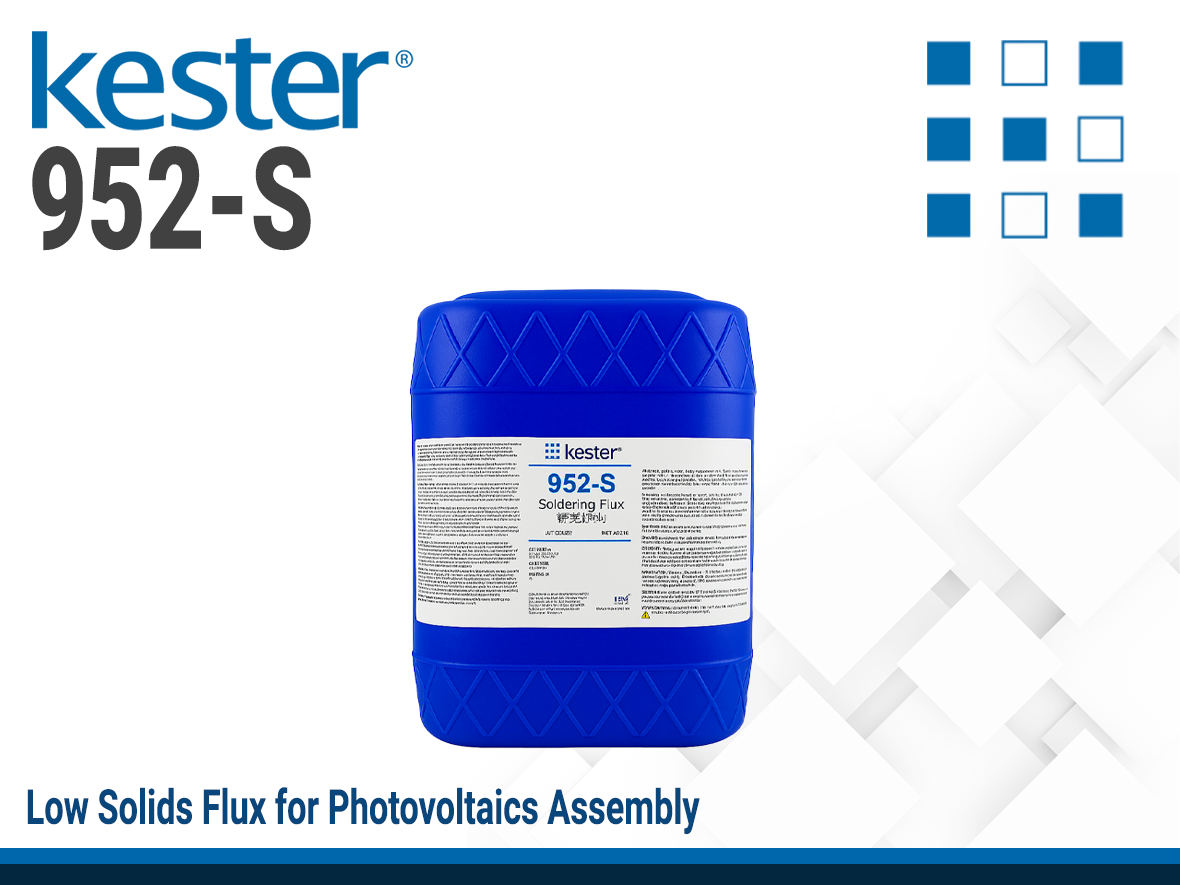

KESTER 952-S Soldering Flux
- Formulated for photovoltaic applications
- High reliability ribbons
- Halogen-free & low-solids
Product Description
KESTER 952-S is a zero-halogen, non-rosin organic flux designed specifically for use in tabber and stringer equipment of Photovoltaic Assembly (PV) module industry by soldering tabs to cell contacts. 952-S could be applied directly to interconnecting ribbon by hand soldering or auto-equipment with tabber and stringer soldering system, by dipping or spraying. The extremely low solids content (around 2%) and nature of the activator system results in practically no residue left on the cell after soldering. Cell are dry and cosmetically clean as they exit the tabber and stringer machine. 952-S has a wider operating window varying with temperature range, and can be used in SnPb, SnAgPb and Pb-free alloys. 952-S is classified as ORL0.
Product Key Features
- Zero-halogen
- Produces high reliability ribbons for interconnecting solar cells
- High throughput
- Leaves uniform residues
- Low solids
Applications
- Can be applied either through spraying or dipping in photovoltaic electronics assembly.
Technical Specifications
| General Properties | |
| Solids | 2 % |
| Specific Gravity Specific Gravity Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume. For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless. | 0.803 |
