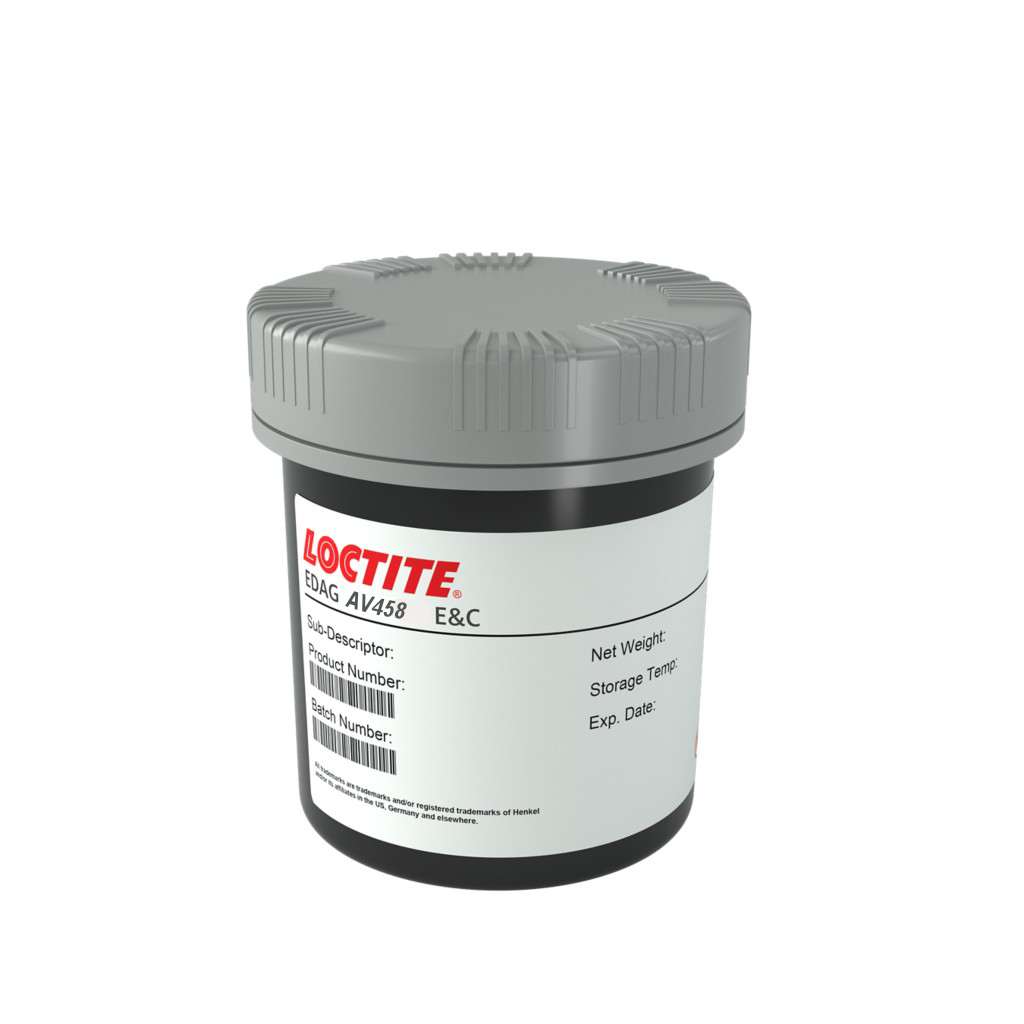

LOCTITE EDAG AV458 E&C

Harmonization Code : 32159090 |   Printing ink, writing or drawing ink, and other inks, whether or not concentrated or solid, specifically for those classified as other within that category
Main features
  • Conductive
  • Compatible with PC and Polyester
  • Good flexibility

Product Description

LOCTITE EDAG AV 458 E&C conductive, screen printable ink consist of very finely divided silver and silver chloride particles in a blend of thermoplastic resins. It is specially designed for use as an electrode material in bio medical sensing devices.

LOCTITE EDAG AV 458 E&C is filled with silver and silver chlorid blend. It is applicable manually and semi automatically. It can operate continuously at 100°C, can be used for non critical, flexible, low temperature drying cycles and has good flexibility. Typically used for medical devices such as ECG disposable electrodes and biomedical sensors.

Drying Schedule

  • 30 minutes @ 80°C or
  • 15 minutes @ 95°C or
  • 15minutes @ 120°C





Product Family
AV458
0.4Kg Jar

No longer available

This product is no longer available from CAPLINQ. Please contact us so we can recommend an alternative product.
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Solids 67 %
Shelf Life
Shelf Life @ 5°C 365 days
Physical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
 27,500 mPa.s
