Main features

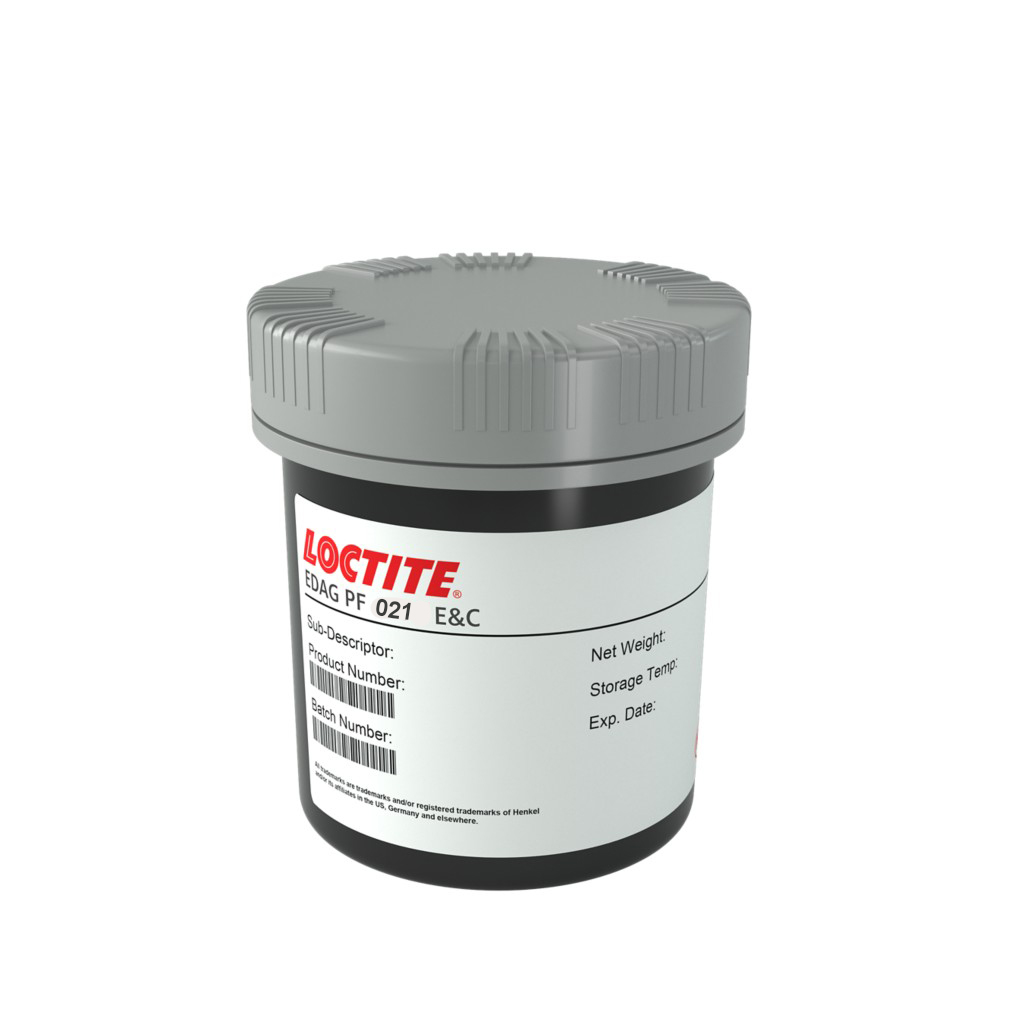

Encapsulating Photopolymer
Prevents Silver migration
Fast UV Cure

Product Description

LOCTITE EDAG PF 021 E&C encapsulating photopolymer is designed to secure low profile surface mount devices (SMD) to rigid or flexible substrates. It is particularly effective for use as a physical and environmental protection of the mounted device.

LOCTITE EDAG PF 021 E&C is a UV curable, clear thermoplastic with a fast UV cure that prevent silver migration and physically protects SMD. It offers ease of process and dot dispensing with a max operating temperature of 204°C.

Specifications
Additional Information

Technical Specifications

General Properties

Shelf Life
Shelf Life @ 25°C	365 days

Mechanical Properties

Elongation

Elongation
Elongation is the process of lengthening something.

It is a percentage that measures the initial, unstressed, length compared to the length of the material right before it breaks.

It is commonly referred to as Ultimate Elongation or Tensile Elongation at break.

176 %

Hardness
Durometer (Shore A)	80

Physical Properties

Viscosity

Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application

11,500 mPa.s

Additional Information

Recommended UV Cure

Light Dose, Joule/cm2: 0.4 to 1.0

For thicknesses >2.0 mils, a longer wavelength bulb is required e.g. Fusion "D". UV measurements were made with an EIT radiometer.

How to use:

1. Mixing/Dilution

Product is ready for use but should be mixed thoroughly using a plastic spatula. (Syringe-packed material needs no mixing).
Mix smoothly from bottom of container , being careful not to whip air into the product.

2. Application

LOCTITE EDAG PF 021 E&C should be applied in a glob over the entire surface if small devices, or along the outside leads of large devices.
Its viscosity is designed to conform to the device and flow out over the substrate just prior to UV curing.
Dot dispensing equipment should be selected based on the exact application, i.e., device size and production speed.
