Automatic liner rewind eliminates waste and cleanup

As the adhesive film is applied to the substrate, the release liner is simultaneously wound back into the applicator body. There is no liner to peel off, set aside, or dispose of separately during the application process, keeping the work area clean and reducing material handling time between bond cycles.

One-handed, trigger-controlled application for fast, consistent results

A single press of the trigger dispenses adhesive in a controlled, consistent line without requiring a second hand to guide or hold the tape. This allows the operator to position the applicator accurately and maintain steady pressure along the bond line, producing a uniform adhesive deposit on any surface geometry.

Consistent adhesive thickness with no oozing, glue lines, or overspray

Transfer tape delivers a uniform adhesive layer of known thickness matched to the tape specification, with no variation from operator technique. Unlike liquid adhesives, hot melt, or aerosol adhesives, the ATG system produces no oozing, squeeze-out, or overspray, keeping adhesive precisely within the intended bond area.

Enclosed gears minimize jamming and adhesive buildup

The applicator's drive gear mechanism is fully enclosed within the body, preventing adhesive from the tape roll from contaminating the gear train during operation. This reduces the incidence of jams and extends the service life of the applicator without requiring frequent cleaning of internal components.

Transparent cover for at-a-glance tape level inspection

The clear applicator body allows operators to see the remaining tape on the roll without opening the applicator or stopping the work. This helps plan roll changes before the tape runs out mid-application and reduces unplanned interruptions on production lines or assembly tasks.

Supports multiple tape widths including 6 mm with the adapter kit

The ATG 700 natively accepts 9 mm, 12 mm, and 19 mm wide tape rolls with no accessories required. The separate 6 mm Hand Dispenser Adapter Kit extends compatibility to narrow 6 mm rolls for precision bonding in tighter geometries, allowing a single applicator body to cover a broader range of tape widths and application types.

Faster than hand-applied double-sided tape

Applying double-sided tape by hand requires peeling the tape from a roll, positioning it on the substrate, and then removing a second liner before bonding. The ATG 700 performs the full application in a single trigger stroke with no liner removal step, reducing application time and the risk of contaminating the adhesive surface before bonding.

Cleaner and safer than liquid or aerosol adhesives

Liquid and aerosol adhesives introduce fumes, overspray, and cleanup requirements that slow down production and create occupational health considerations. The ATG 700 requires no preparation, produces no vapors or strong odors, leaves no residue outside the bond area, and can be operated safely without dedicated ventilation in most industrial work environments.

Interchangeable rolls allow adhesive selection without changing applicators

The ATG system allows rolls to be exchanged for new or previously used adhesive rolls with different performance properties without requiring a separate applicator for each formulation. Operators can switch between general purpose, high temperature, acid free, and high initial adhesion variants using the same ATG 700 body, reducing tool inventory and changeover time on the production floor.

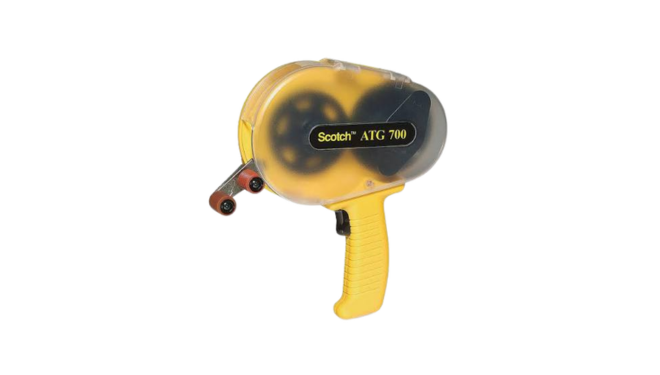

ATG 700 Applicator — Yellow, Model 19600

Standard ATG 700 applicator body for 9 mm, 12 mm, and 19 mm Scotch® ATG transfer tape rolls

The standard ATG 700 applicator accepts rolls up to 55 meters long in widths of 9 mm, 12 mm, and 19 mm. The yellow body is the original and most widely used configuration in the Scotch® ATG range, suitable for light to heavy industrial assembly, packaging, graphics, and print applications. Compatible with the full range of Scotch® ATG adhesive transfer tape formulations. Tape rolls are sold separately.

Hand Dispenser Adapter Kit — 6 mm Rolls

Adapter accessory that enables an ATG 700 applicator to dispense narrow 6 mm adhesive transfer tape rolls

The ATG 700 Hand Dispenser Adapter Kit is an accessory for use with an existing ATG 700 applicator body. Inserting the adapter allows the applicator to accept and dispense 6 mm wide Scotch® ATG transfer tape rolls, extending the system's capability to narrow bonding applications and tight geometry surfaces where wider tape would overhang or waste material. Supplied in cases of 6 adapters. Compatible with the ATG 700 applicator only.

General Purpose ATG Transfer Tapes

Suitable for most standard bonding applications across paper, cardboard, foam, plastic, and light metal surfaces. Available in 9 mm, 12 mm, and 19 mm widths for the ATG 700 applicator.

Typical uses: packaging, display assembly, print mounting, paper bonding, light industrial assembly

High Performance and Specialty ATG Transfer Tapes

Formulations are available for demanding applications including high temperature resistance, high initial tack, and acid-free bonding for archival or sensitive material applications. Compatible with the same ATG 700 applicator body with no tool change required.

Typical uses: automotive interior trim, appliance assembly, archival mounting, fabric and foam bonding

Safe Handling During Operation

• The adhesive transfer tape bonds on contact with most surfaces. Avoid unintended contact between the tape and surfaces not intended for bonding during application.
• Keep the applicator and tape rolls away from dusty environments during storage, as contamination of the adhesive surface before bonding can reduce bond strength.
• Do not apply excessive force to the trigger. Controlled, steady trigger pressure produces the most consistent bead placement and liner rewind performance.
• For industrial and occupational use only.

Maintenance and Storage

• If adhesive contamination is found on the applicator body or roller surfaces, wipe clean with a dry or lightly dampened lint-free cloth. Do not use solvents on plastic components.
• Inspect the rewind spool and gear area periodically for liner buildup. Excess liner accumulation in the rewind spool can cause the liner to back up and jam the feed mechanism.
• Store the applicator with a tape roll loaded to prevent dust from entering the tape path. If storing without a roll, cover the tape inlet to protect internal components.
• Store tape rolls in a cool, dry location away from direct sunlight and heat. Elevated temperatures can affect adhesive performance before the tape is applied.
