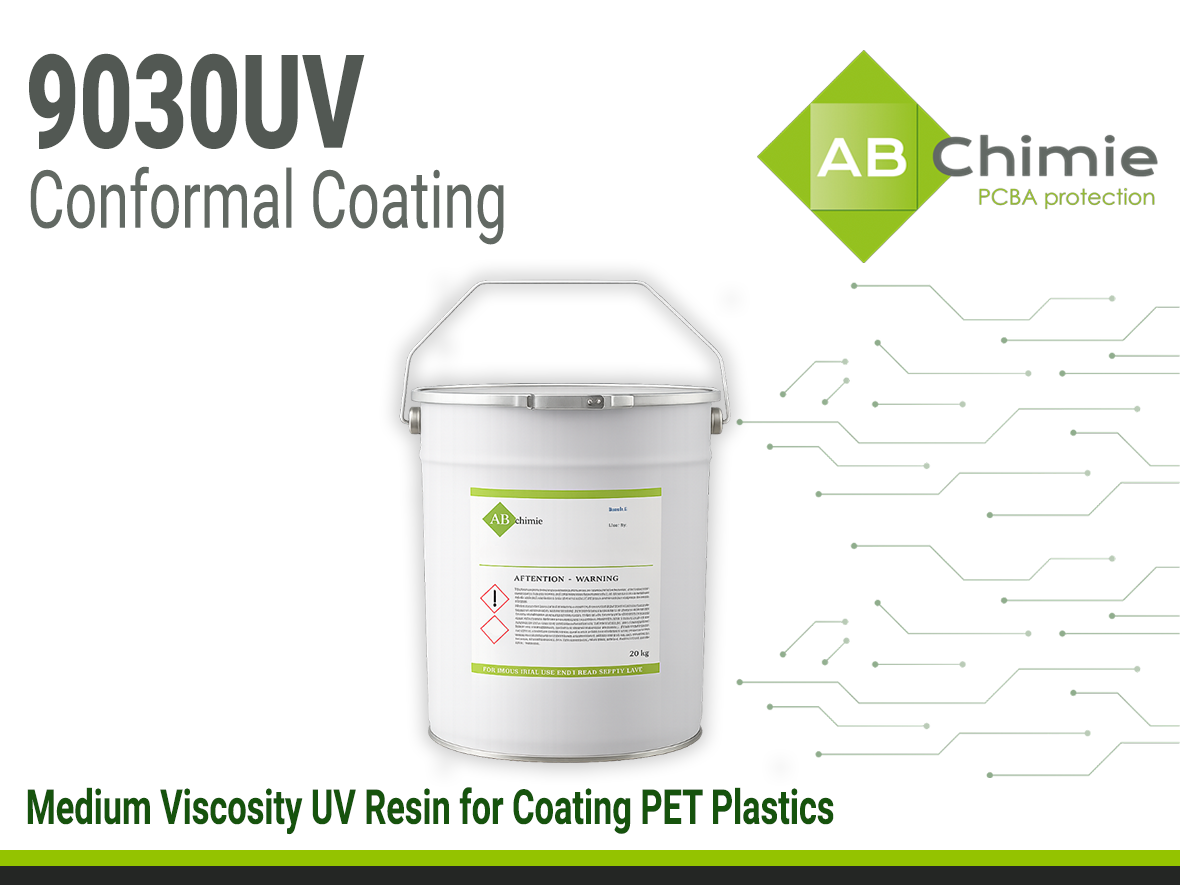

ABchimie 9030 UV Medium Viscosity Resin
- One Component
- UV Cure
- Excellent PET adhesion
Product Description
ABChimie® 9030UV is an acrylate-based resin designed for coating and bonding of PET Plastic. Its medium viscosity provides a durable, transparent layer (2mm thickness) while maintaining substrate integrity. This makes it suitable for applications requiring high clarity and mechanical resistance
ABChimie 9030UV cures rapidly under UV light, has no VOCs, and can be applied to high-speed manufacturing processes to increase productivity. ABChimmie 9030UV is in full compliance with REACH and RoHS regulations.
Product Key Features
- Transparent coverage
- Medium viscosity
- 2mm film thickness
- Excellent adhesion to PET plastic
- Fast UV cure for high volume production
- No VOCs
Applications
- Bonding of PET plastic components in electronic assemblies
- Surface protection of plastics ex. displays, labels, signage.
- Protection for plastic casings or covers.
- Protection for optically clear applications ex. lenses.
Technical Specifications
| General Properties | |
| Appearance Appearance Appearance at room temperature. | Transparent liquid |
| Physical Properties | |
| Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application | 30000 mPa.s |
Additional Information
Frequently Asked Questions About ABChimie® 9030 UV
What are typical applications for ABChimie® 9030 UV?
ABChimie® 9030 UV is a UV-curable resin designed to protect printed circuit board assemblies (PCBs) and components in demanding manufacturing environments, including:
- Automotive electronics (e.g., control units, sensors)
- Industrial automation (e.g., motor drives, PLCs)
- Consumer electronics (e.g., smart devices, wearables)
- Other high-reliability electronic assemblies
Learn More About ABChimie® 9030 UV
ABChimie® 9030 UV is a proven solution for engineers seeking fast, reliable protection of electronic assemblies in demanding manufacturing environments. This UV-curable resin delivers rapid curing, excellent electrical insulation, and strong adhesion to PET, ideal for applications in automotive electronics, industrial automation, consumer electronics, and other high-reliability assemblies.
Main Advantages of ABChimie 9030 UV
ABChimie® 9030 UV cures rapidly under UV light, enabling integration into both batch and inline production. The resin forms a durable, high-performance layer that protects assemblies while supporting high-throughput manufacturing.
ABChimie® 9030 UV cures to a clear, transparent finish, allowing easy visual inspection of components, markings, and solder joints without removing the coating. Its optical clarity helps maintain readability while providing reliable protection.
ABChimie® 9030 UV features a medium viscosity of approximately 30,000 mPa·s, providing an ideal balance between flow control and coverage. This viscosity allows the coating to spread uniformly without excessive running, making it suitable for selective coating, dispensing, or controlled manual application.
ABChimie® 9030 UV exhibits exceptional adhesion to PET (polyethylene terephthalate) and other flexible polymer substrates commonly used in modern electronics. Its robust bonding performance ensures long-term protection even on surfaces that bend, flex, or undergo repeated mechanical stress.
How to Choose a Resin
Selecting the most suitable resin requires consideration of key factors:
- ✔ Norms & Compliance
- ✔ Environment / Exposure Conditions
- ✔ Repairability
- ✔ Electrical Performance
- ✔ Application Method
- ✔ Operating Temperature
Compliance You Can Trust ✅
ABChimie® 9030 UV meets stringent industry standards, ensuring reliability and regulatory adherence for OEMs and contract manufacturers:
Curing Tip: ABChimie 9030 UV cures with UV rays. It is crucial to use the appropriate equipment, as well as the recommended settings, to achieve the best properties of the resin.
Ref. Leistung / ref power ln % over wavelength in nm
Ref. Leistung / ref power ln % over wavelength in nm
Key Curing Properties
Mercury (Miniterm UV 250f Super, Aeroterm)
120 W/cm
1500 mJ/cm2
2 mm
Typical property values shown for reference only and should not be used as specifications.
Alternative to Mercury Lamp Curing of ABChimie 9030 UV
ABChimie 9030 UV is also available in the LED - version, which cures by LED Lamp.
ABChimie 9030 UV LED [Go to 9030 UV LED Product Page↗]
- Thixotropic resin
- Fluorescent under UV light
- Excellent adhesion to flexible substrates
- Immediate curing with UV LED exposure
Best suited for: High-speed process looking to use LED light for curing
