Nacelles, thrust reversers, and ducting sit in a zone where structural bonding requirements overlap with elevated service temperatures, vibration from rotating engine hardware, and exposure to fuel and hydraulic fluid. Structural adhesive films and pastes used here need to carry real mechanical load while tolerating the thermal and chemical environment that's specific to the engine bay, not just general airframe conditions.
This page covers structural adhesive films, pastes, and bonding primers used to join composite and metallic nacelle panels, ducting, and access structures.
Where This Bonding Is Used
Structural film and paste adhesives bonding composite and metallic nacelle skins to internal substructure.
Bonding of composite and metallic ducting sections and thrust reverser components exposed to engine bay heat and vibration.
Bonding primers applied ahead of structural adhesive to protect and prepare metal fittings bonded to composite nacelle structure.
Selection Factors
Continuous-use temperature rating checked against the specific location's actual thermal exposure, since nacelle zones vary significantly from forward cowl to exhaust-adjacent structure.
Film adhesive for controlled bondline over large panel areas, or paste for gap-filling, repair, or vertical/overhead application.
Mechanical durability under the continuous, high-frequency vibration generated near rotating engine hardware.
Retained bond strength after exposure to jet fuel, hydraulic fluid, and de-icing chemicals over the joint's service life.
Whether the substrate, especially at a metal-to-composite joint, needs a corrosion-inhibiting bonding primer ahead of the structural adhesive.
Specific OEM specification approval, such as BMS or comparable customer specs, confirmed for the platform in question.
Frequently Asked Questions
Is nacelle bonding materially different from general fuselage or wing bonding?

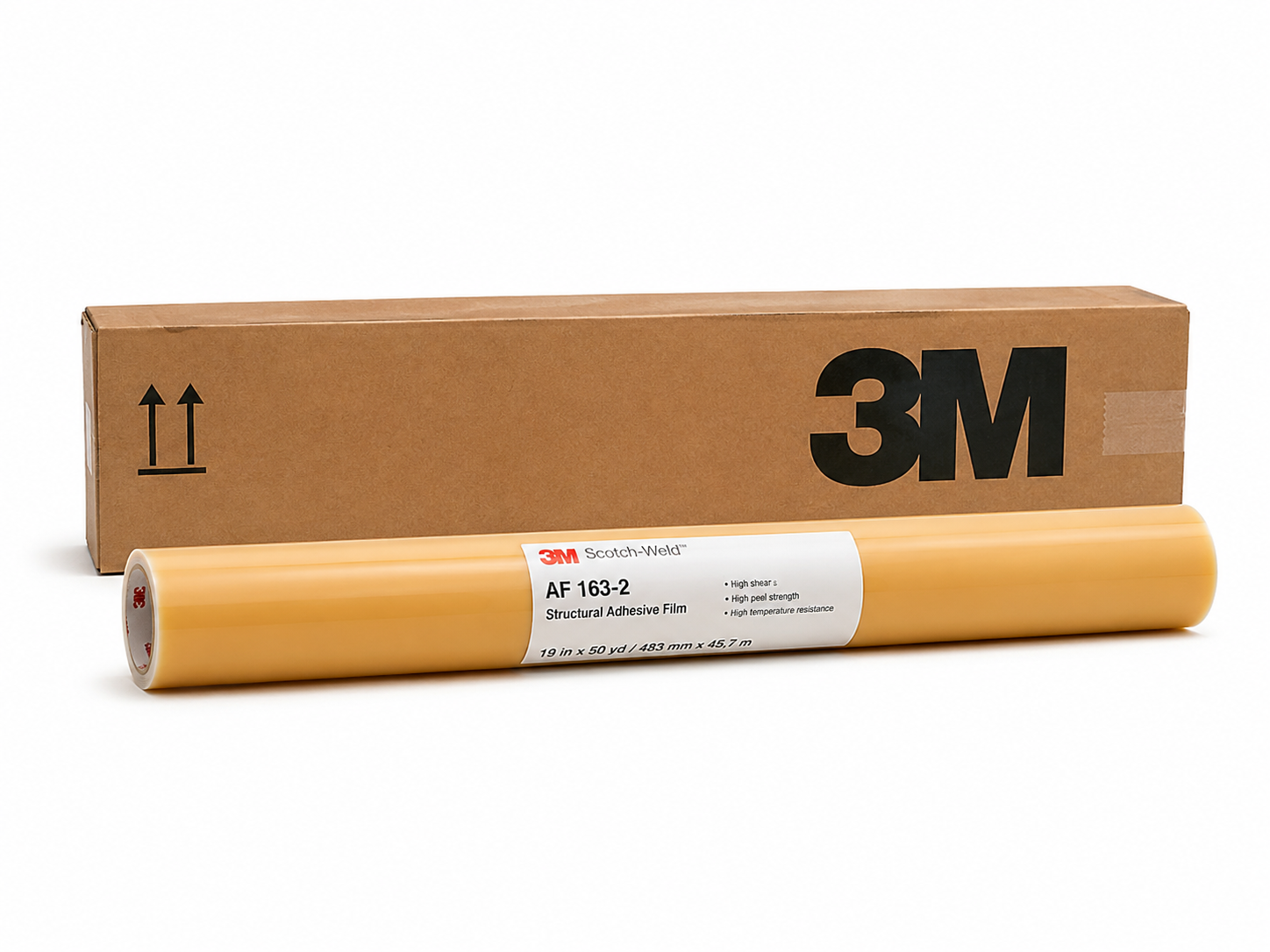

The adhesive chemistry can be shared (AF 163-2 and EC-3448 are used on both), but the nacelle zone typically runs at higher sustained temperatures and sees more direct exposure to fuel and hydraulic fluid than a comparable wing or fuselage joint. The same product may be specified in both locations, but the specific location's thermal and chemical exposure should still be checked against the datasheet rather than assumed to match general airframe conditions.
Do I need a bonding primer for every metal-to-composite joint in the nacelle?
A bonding primer is commonly used at metal-to-composite joints to protect the prepared metal surface and improve adhesive wet-out, but requirements vary by specific metal alloy, composite type, and platform bonding specification. The applicable specification for the joint in question should be the deciding factor rather than a blanket rule.
Can EC-3448 be used to repair a joint that was originally bonded with AF 163-2 film?

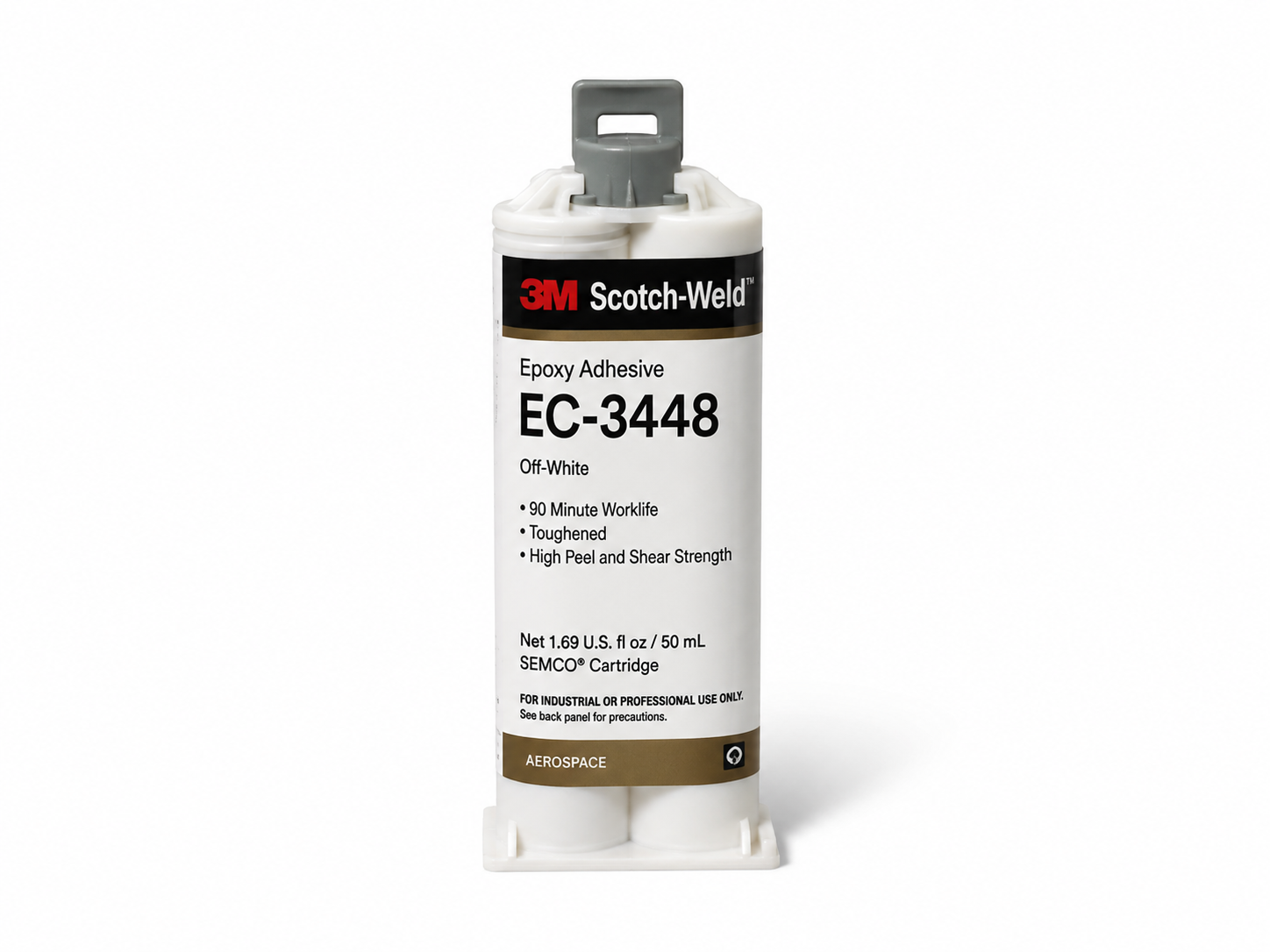

EC-3448 is documented as the paste version of the AF 163-2 chemistry, specifically intended to extend that adhesive system into paste form for repair and situations where a pre-formed film can't be positioned. That said, repair procedures should follow the platform's approved repair manual rather than a general substitution assumption.
Are these products qualified to a specific OEM specification?

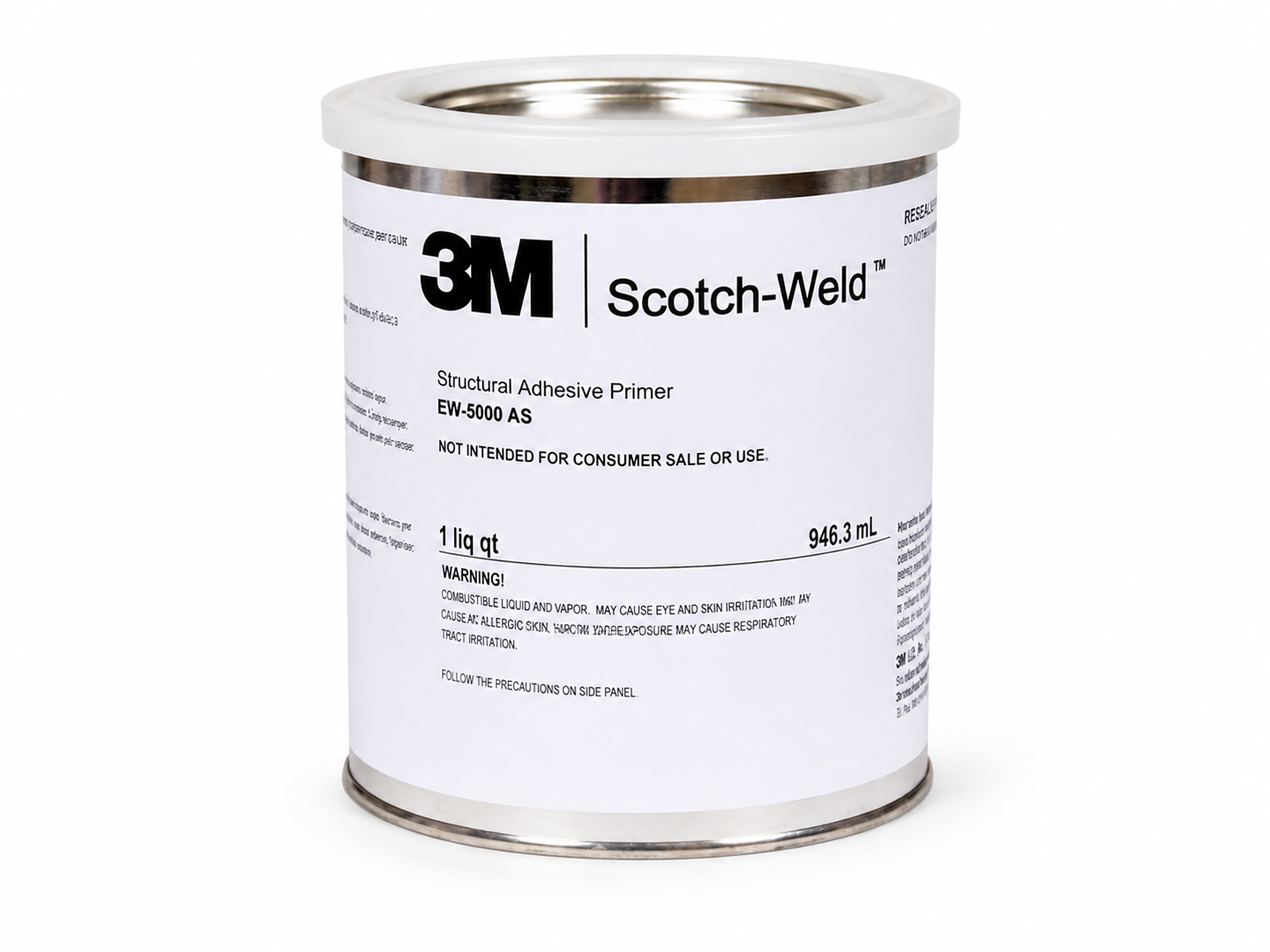

The AF 163-2 family and EW-5000AS are both documented by 3M against popular specs including BMS 5-101 and BMS 5-129. Qualification status can vary by specific grade, form factor, and revision, so current approval status should be confirmed against the platform's bonding specification before use. Contact the technical team for documentation.
Do you provide support for nacelle bonding material selection?
Yes. The Krayden technical team works directly with engineers on adhesive and primer selection, datasheets, and application support for new platform qualification, production, or repair work.
Need Help Selecting a Nacelle or Ducting Adhesive?
Selection depends on the service temperature zone, substrate combination, and any applicable OEM specification. The Krayden technical team provides material selection support, datasheets, and application guidance across structural films, pastes, and bonding primers.
