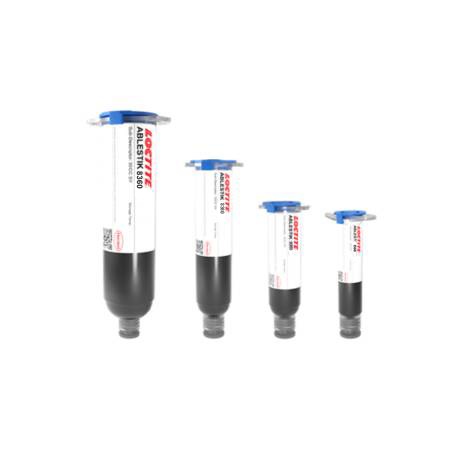

LOCTITE ABLESTIK 8360
Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other
- Excellent dispensability
- Miinimal resin bleed
- Minimal tailing and stringing
LOCTITE ABLESTIK 8360 electrically conductive, epoxy die attach adhesive is designed for high reliability packaging applications. Its unique properties result in superior autoclave reliability test performance of the final assembled devices.
LOCTITE ABLESTIK 8360 offers excellent dispensability with minimal tailing and stringing. It has a low amount of condensable volatiles and high purity. LOCTITE ABLESTIK 8360 meets the requirements of MIL-STD-883, Method 5011
- 1 hour @ 175°C
- 5ºC per minute ramp to 175ºC + 1 hour @ 175ºC
- 2 hours @ 100°C + 30 minute ramp to 175°C + 1 hour @ 175ºC
| Work life @25°C |
Work life @25°C
Work life is the amount of time we have to work with a material until it is no longer able to be easily worked and applied on a substrate.
It is based on the change in viscosity and it can rely on the application requirements.
| Thixotropic index |
Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten.
A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads.
It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.
| Viscosity |
Viscosity is a measurement of a fluid’s resistance to flow.
Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.
A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
|Moisture absorption||0.55 %|
| Volume Resistivity |
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.
| Glass Transition Temperature (Tg) |
Glass Transition Temperature (Tg)
The glass transition temperature for organic adhesives is a temperature region where the polymers change from glassy and brittle to soft and rubbery. Increasing the temperature further continues the softening process as the viscosity drops too. Temperatures between the glass transition temperature and below the decomposition point of the adhesive are the best region for bonding.
The glass-transition temperature Tg of a material characterizes the range of temperatures over which this glass transition occurs.
| Thermal Conductivity |
Thermal conductivity describes the ability of a material to conduct heat. It is required by power packages in order to dissipate heat and maintain stable electrical performance.
Thermal conductivity units are [W/(m K)] in the SI system and [Btu/(hr ft °F)] in the Imperial system.
