Thermal Insulators

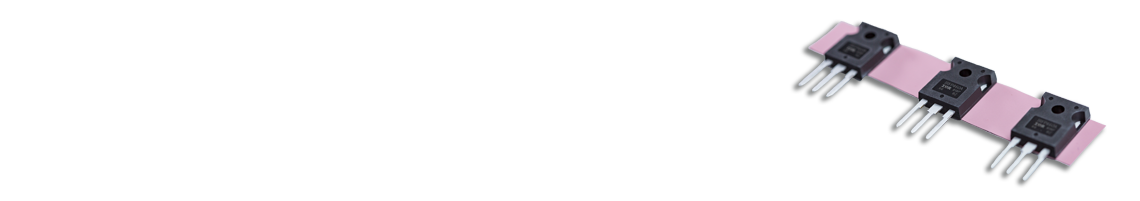

Thermal insulator pads are the latest high-performance thermal conductivity and electrical insulation materials. They are made with silicon resin as the matrix, reinforced with glass fiber as the substrate. They come with single sided Pressure sensitive adhesives for easy assembly.
These thermal insulators are designed to provide low thermal impedance,high breakdown voltage and high isolation for high power and high voltage applications. Integrated fiberglass reinforcement protects the pad from tears, cut-throughs and punctures.
TIP1500 and TIP3500 are designed to be soft and conformal which provide excellent mating surface for low pressure mounting. TIP1500 offers 0.23mm thickness and 1.5 W/m·K thermal conductivity while TIP3500 is available in thicknesses ranging from 0.25mm to 0.50mm with a thermal conductivity of 3.5 W/m·K and superior insulation.
-
TIP 1500 | Thermal insulator pad
- 0.54 - 0.61 Thermal Impedance
- 1.5 Thermal Conductivity
- 0.23mm Thickness
- 8 weeks
-
TIP 3500 | Thermal insulator pad
- 0.18 - 0.23 Thermal Impedance
- 3.5 Thermal Conductivity
- 0.25 - 0.50 mm Thickness
- 8 weeks
-
TGP 1200 | Thermal Gap Pad
- 1.03 Thermal Impedance
- 1.2 Thermal Conductivity
- Competitive cost of ownership
- 16 weeks
-
TIP 5000 | Thermal insulator pad
- 0.15 - 0.18 Thermal Impedance
- 5.0 Thermal Conductivity
- 0.25 - 0.50 mm Thickness
- 8 weeks
-
.png "TG3010I | Thermal Grease")
TG3010I | Thermal Grease
- 0.003 °C•cm²/W Thermal Impedance
- 3.0 W/m•K Thermal Conductivity
- 10μm BLT
- 12 weeks
-
PTM6880 | Phase Change Pad
- 6,0 W/m•K thermal conductivity
- 0.056 ℃•cm²/W
- Improved flowability
- 12 weeks
-
TGP 1500 | Thermal Gap Pad
- 0.94 Thermal Impedance
- 1.5 Thermal Conductivity
- 0.5 - 5 mm Thickness
- 16 weeks
-
TGP 3510PT | Thermal Putty Pad
- 0.45 Thermal Impedance
- 3.5 Thermal Conductivity
- 0.5 - 5 mm Thickness
- In stock
-
TGP 6000PT | Thermal Putty Pad
- 0.27 Thermal Impedance
- 6.0 Thermal Conductivity
- 0.5 - 5 mm Thickness
- 16 weeks
-
PCM 45F | Phase Change Pad
- 0.09 - 0.12 Thermal Impedance
- 2.0 - 2.5 Thermal Conductivity
- Pad form
- 8 weeks
-
TGP 3000 | Thermal Gap Pad
- 0.65 Thermal Impedance
- 3.0 Thermal Conductivity
- Low pressure versus deflection
- 16 weeks
-
TGP 8000PT | Thermal Putty Pad
- 0.19 Thermal Impedance
- 8.0 Thermal Conductivity
- 0.5 - 5 mm Thickness
- 16 weeks
-
PCM 45F-SP | Phase Change Paste
- 0.09 - 0.12 Thermal Impedance
- 2.0 - 2.5 Thermal Conductivity
- High volume resistivity
- 8 weeks
-
TGP3000E | Thermal Gap Pad
- 0.65 Thermal Impedance
- 3.0 Thermal Conductivity
- Excellent surface wetting
- 16 weeks
-
PTM 5000 | Phase Change Pad
- 0.06 - 0.08 Thermal Impedance
- 3.5 - 4.5 Thermal Conductivity
- Pad form
- 8 weeks
-
PTM 5000-SP | Phase Change Paste
- 0.06 - 0.08 Thermal Impedance
- 3.5 - 4.5 Thermal Conductivity
- Stencil Printable
- 8 weeks
-
PTM 6000 | Phase Change Pad
- Higher reliability than PTM5000
- 3.5 - 4.5 Thermal Conductivity
- Pad form
- In stock
-
TGP 5000 | Thermal Gap Pad
- 0.3 Thermal Impedance
- 5.0 Thermal Conductivity
- Good elastic modulus
- 16 weeks
-
PTM 6000HV | Phase Change Paste
- 0.14 Thermal Impedance
- 5.2 Thermal Conductivity
- Optimized for IGBT
- In stock
-
-
TGP 6000 | Thermal Gap Pad
- 0.25 Thermal Impedance
- 6.0 Thermal Conductivity
- Excellent surface wetting
- 16 weeks
-
PTM 7000-SP | Phase Change Paste
- 0.06 Thermal Impedance
- 6.5 Thermal Conductivity
- Paste form
- In stock
-
PTM 7000-SPM | Phase Change Paste
- 0.06 Thermal Impedance
- 6.5 Thermal Conductivity
- Medium drying solvent
- In stock
-
TGP 7500C | Thermal Gap Pad
- 0.16 Thermal Impedance
- 7.5 Thermal Conductivity
- Excellent surface wetting
- 16 weeks
Product Selector Guide
| Product name | Color | Thickness (mm)2 | Hardness (Shore A) | Specific Gravity | Thermal Conductivity (W/m·K) | Thermal Impedance ˚C·in2/W @10psi | Thermal Impedance ˚C·in2/W @50psi | Dielectric Breakdown Voltage (V) | Dielectric Constant @1MHz | Volume Resistivity (ohm·cm) | Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|
| TIP1500 | Pink | 0.19, 0.23 | 90 | 2.21 | 1.5 | 0.91@0.19mm 0.93@0.23mm | 0.54@0.19mm 0.61@0.23mm | >6000 | 5.50 | 1 x 1013 | V-0 |
| TIP3500 | Blue | 0.25-0.50 | 80 | 2.47 | 3.5 | 0.23 | 0.18 | >6000 | 3.30 | 5 x 1013 | V-0 |
| TIP5000 | White | 0.25-0.50 | 90 | 2.5 | 5 | 0.18 | 0.15 | >4500 | 3.5 | 5 x 1013 | V-0 |
Frequently Asked Questions
What are some typical Thermal Insulator applications?
Typical Thermal Grease Applications include:
- Automotive electronics
- Power conversion equipment
- Power supply equipment
- Motor controllers
- Speaker amplifier
- Power switch
What is the main difference between Thermal insulators?
As obvious by the nomeclature and from a quick look at the product properties, the main difference is Thermal conductivity. TIP1500 has a TC of 1.5 (W/m·K) while TIP1500 has a TC of 3.5 (W/m·K). This is a direct consequence of the product\'s thickness.
While they are both V0 non flammable and their breakdown voltage is identical, the dielectric constant and volume resistivity vastly differs. Please refer to the Technical datasheets for additional information.
