As industries continue to electrify and energy demands increase, engineers face growing challenges related to power efficiency, thermal management, system reliability, and space constraints. Whether designing electric vehicles, industrial equipment, or building power infrastructure, efficient current distribution is critical to overall system performance. Bus bars have emerged as a preferred solution for modern electrical systems, providing a low-resistance pathway for power transmission while reducing wiring complexity, improving reliability, and enabling more compact designs. Their versatility makes them a key technology across transportation, manufacturing, energy, and facility power distribution applications.

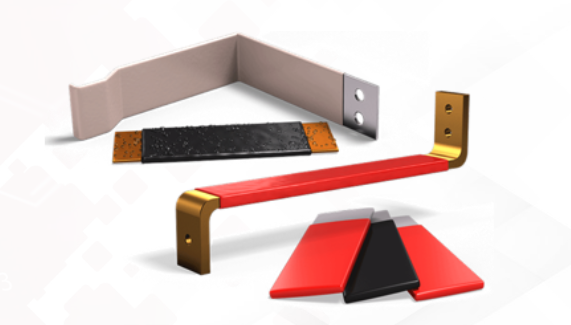

Typical coated copper and aluminum bus bars
Key Design Considerations for Bus Bar Performance include:
Electrical Performance
Bus bars are engineered to minimize resistance, voltage drop, and energy losses while ensuring stable current distribution under load.
Thermal Management
Effective heat dissipation and controlled temperature rise are essential to maintaining reliability in high-power systems.
Material & Insulation Selection
The choice of conductor material and insulation system directly impacts safety, durability, and long-term electrical performance.
Bus Bars for Efficient Power Distribution
Bus bars are used across a wide range of electrical and electronic systems wherever efficient power distribution is critical. While the specific design requirements vary by industry, the fundamental advantages remain consistent: lower electrical losses, improved thermal performance, reduced wiring complexity, and enhanced system reliability. The following sections outline how bus bars are applied across key sectors, from high-power electric mobility systems to industrial equipment and large-scale facility power distribution.
Electric Vehicles

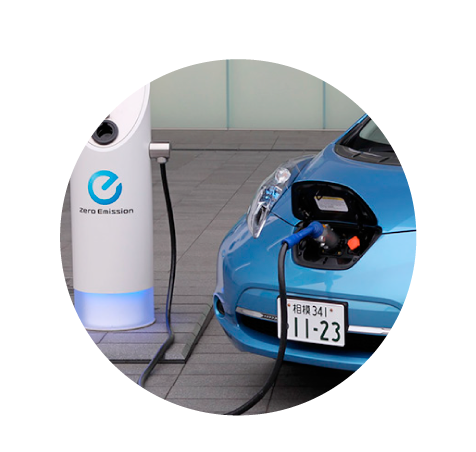

Electric vehicles require efficient power distribution throughout battery packs, power conversion systems, charging infrastructure, and auxiliary electrical systems.
As vehicle architectures move toward higher voltages and larger battery capacities, bus bars provide a compact and reliable method for carrying high currents while minimizing electrical losses.
Lightweight construction, high current capacity, thermal management, and vibration resistance.
Require precise mechanical design and robust insulation to withstand vibration, thermal cycling, and strict automotive safety requirements.
- Battery pack interconnections
- Battery management systems
- Power distribution units (PDUs)
- Inverters and converters
- On-board chargers
- DC fast charging equipment
- E-mobility platforms
Low Power Density Applications
Not all bus bar applications involve extremely high current loads. Many industrial, commercial, and electronic systems benefit from bus bars because they simplify wiring, improve reliability, and reduce assembly complexity.
In low and medium power applications, bus bars often replace traditional cable harnesses while providing a cleaner and more organized electrical architecture.
Simplified assemblies, improved reliability, space optimization, consistent performance.
Can be less cost-effective and unnecessarily rigid compared to flexible wiring solutions in smaller or easily reconfigurable systems.
- Industrial control panels
- Automation equipment
- Power supplies
- Telecommunications equipment
- Consumer appliances
- Renewable energy systems
- UPS equipment
Facilities Power Distribution

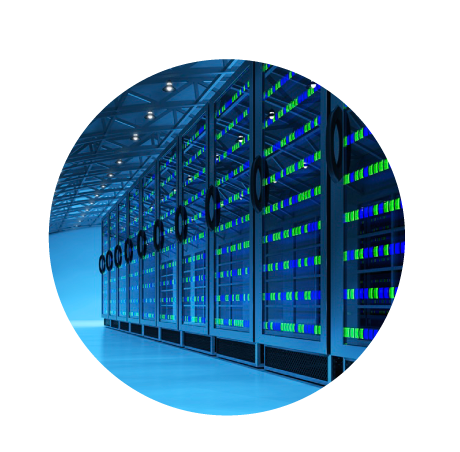

Commercial buildings, manufacturing facilities, data centers, hospitals, and utility infrastructure require safe and reliable power distribution systems capable of handling large electrical loads.
Bus bars are widely used in electrical distribution equipment because they provide efficient current transfer while supporting scalable and modular system designs.
High current capacity, reduced energy loss, ease of maintenance, and long service life.
Require careful installation planning and can be less flexible and more disruptive to modify or expand compared to conventional cabling.

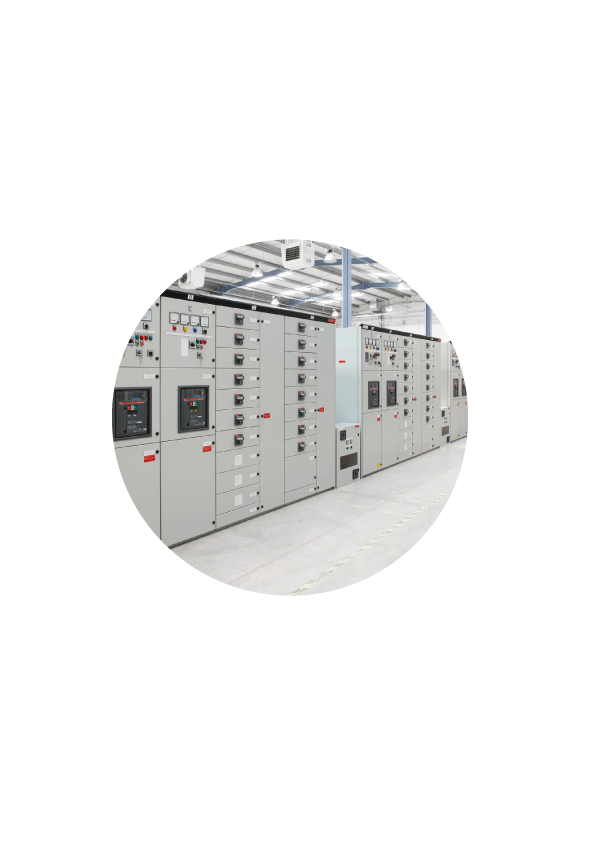

- Switchgear
- Panel boards
- Busway systems
- Motor control centers
- Uninterruptible power supplies (UPS)
- Generator systems
- Energy storage installations
- Renewable energy integration
How Bus Bars Enable Efficient Power Distribution
The performance of a bus bar system is not only defined by its materials, but also by how effectively it manages current flow, thermal behavior, and electrical protection within a compact structure. By combining optimized conductor design with advanced insulation and integration methods, bus bars deliver a highly efficient and reliable approach to power distribution across modern electrical systems.
Step 1: Current Collection and Distribution
Electrical power is collected from a source and distributed through a low-resistance conductive bus bar structure instead of complex wire harnesses.
Step 2: Controlled Conductive Pathway
The bus bar geometry ensures stable, low-impedance current flow while minimizing voltage drop, heat generation, and energy losses.
Step 3: Protection and Integration
8Insulation coatings and mounting systems protect the conductor, ensure electrical safety, and allow seamless integration into compact system architectures.
LINQSOL Epoxy Coating Powders for Broad Voltage Applications
Insulation coatings and mounting systems protect the conductor, ensure electrical safety, and allow seamless integration into compact system architectures.
Key Performance Requirements for Bus Bar Epoxy Coating Powders
It should achieve smooth, uniform coatings with either low or high thicknesses. No sagging is especially important for medium to high-voltage coating applications.
High toughness prevents cracks in coatings when thin conductors bend; Fine-grind high dielectric strength powders for spray applications
High edge coverage enables powder build thickness, crack resistance, and corner toughness.
The build thickness capability brings thickening, adhesion across layers, and insulation voltage achieved. A high build rate of powder brings higher productivity yields.
Long-Term Protection with CAPLINQ Epoxy Coating Powders
Bus bars are exposed to thermal cycling, humidity, vibration, and corrosive environments that can compromise performance over time. CAPLINQ epoxy coating powders form a robust protective barrier that enhances corrosion resistance, mechanical durability, and electrical safety, supporting long service life in demanding electrical applications.
Visual of aluminum bus bar coated with BCP-1507
Key Application Considerations
Physical and Thermal Performance
- Impact resistance and flexibility
- Adhesion strength
- Moisture resistance
- Long-term thermal aging (RTI Rating)
- Flammability and ignition (UL94 V-0)
Electrical Performance
- High dielectric strength, surface/volume resistivity
- Excellent arc resistance, UL-CTI Rating
Environmentally Friendly
- Halogen-free and RoHS compliant
Great Manufacturing Productivity
- High build rate enables faster coating line speed
- Possible coating thickness to suit board voltage needs

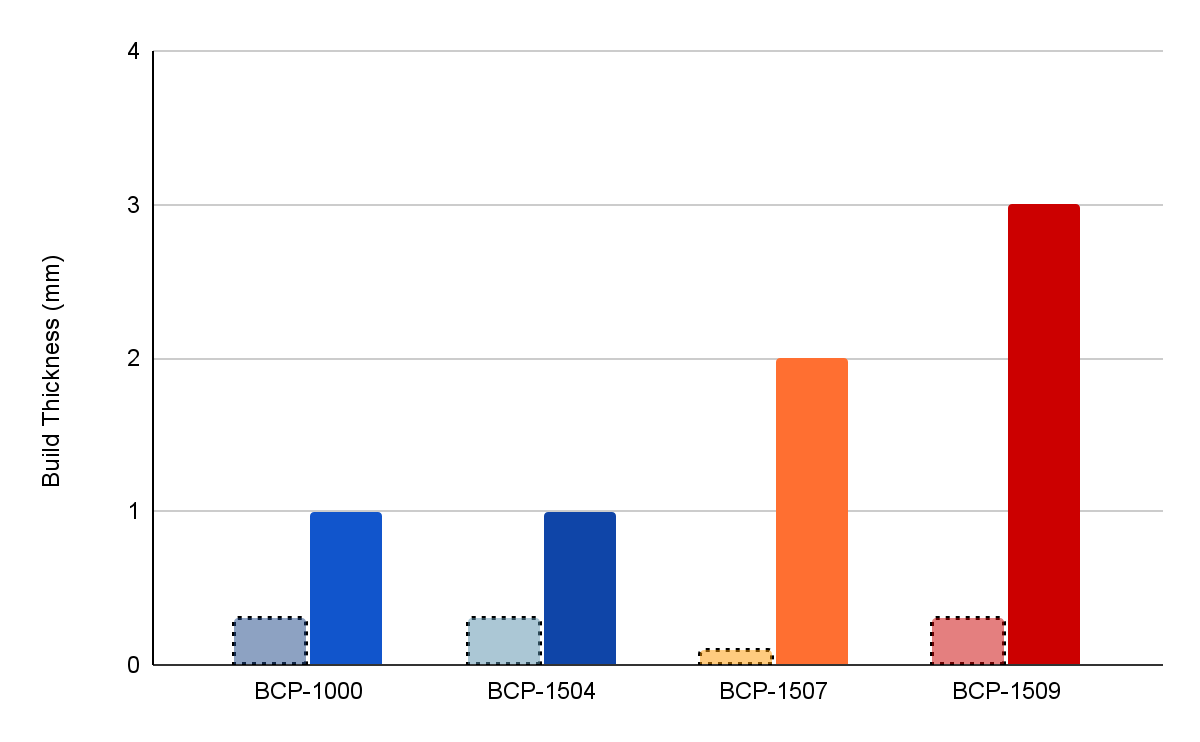

| BCP-1000 | BCP-1504 | BCP-1507 | BCP-1509 | |
| Specific Gravity, g/cc | 1.45±0.05 | 1.52±0.05 | 1.50 | 1.50 |
| Glass Plate Flow | 18-22mm@150°C, 45° | 10-22mm@150°C, 60° | 19-20 mm@180°C | 19-20 mm@180°C |
| Hot Plate Gel Time | 70 sec@150°C | 45±15 sec@160°C | 60 sec@180°C | 60 sec@180°C |
| Edge Coverage, % | 45 | 45 | 45 | 45 |
| Hardness, shore D | >80 | >90 | - | - |
| Impact Resistance, cm | >50 | >50 | >50 | >50 |
| Dielectric Strength (kV/mm) | >42 | >35 | >35 | >35 |
| Flammability, UL94 | V-0 | V-0 | V-0 | V-0 |
| Min. Coating Thickness | 0.3mm | 0.3mm | 0.1mm | 0.3mm |
| Max. Coating Thickness | 1mm | 1mm | 2mm | 3mm |
| Electrostatic Spray | ■■■ | ■□□ | ■■■ | ■■■ |
| Dip Coating | ■□□ | ■■■ | ■■■ | ■■■ |
| Available Color | ●●●●● | ●● | ●●●●● | ● |
| Preheat Temperature | 180~240 °C | 150~180 °C | 180~230 °C | 180~230 °C |
| Curing Conditions | 200°C x 15min | 200°C x 15min | 200°C x 30min | 200°C x 30min |
The values and performance characteristics discussed on this page are representative and should not be considered universal design requirements.
