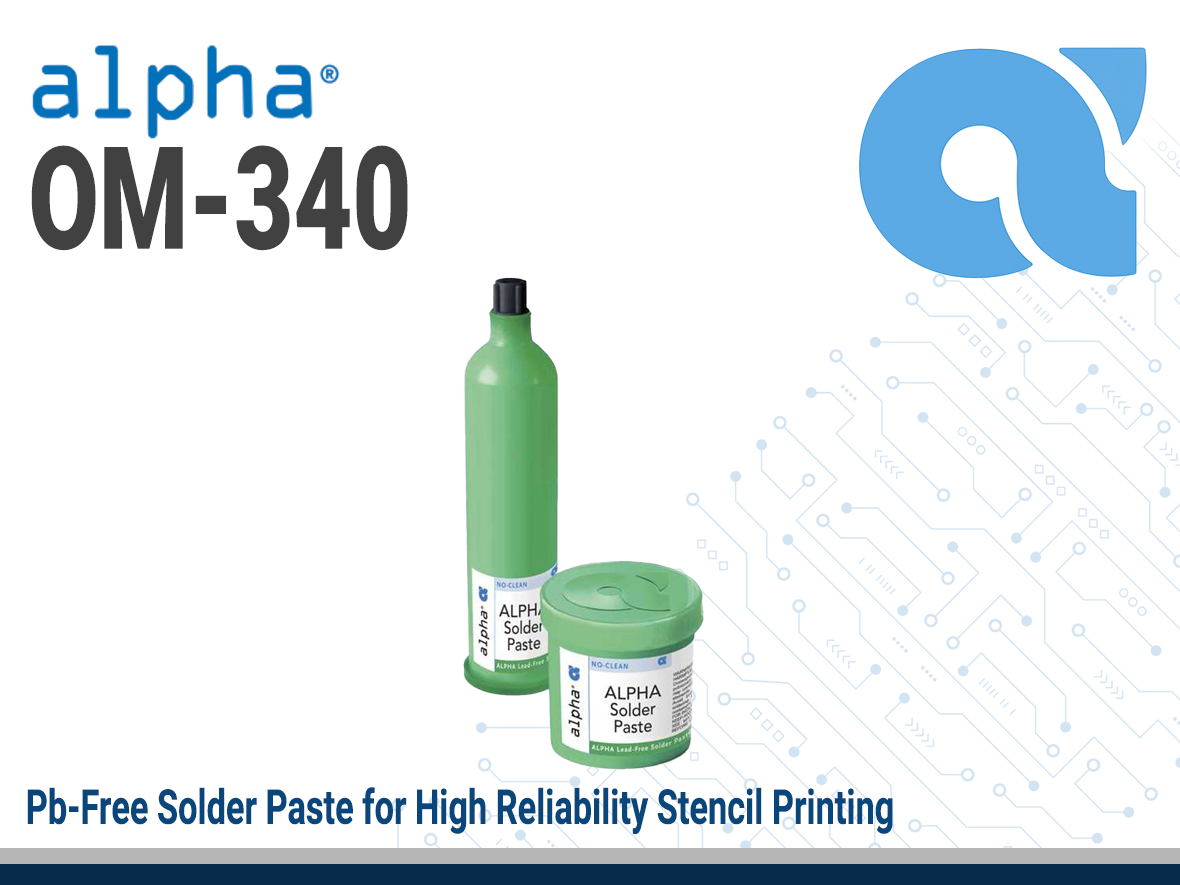

ALPHA OM340 Solder Paste

Harmonization Code : 3810.10.00 |   Soldering, brazing or welding powders and pastes consisting of metal and other materials
Main features
  • Available in different alloys
  • Maximizes reflow yield for Pb-free processing
  • Excellent print consistency

Product Description

ALPHA OM-340 is a versatile lead-free, no-clean solder paste, formulated for a wide array of applications. It offers the best-in-class low defect rate for head-in-pillow defects together with excellent first pass yield on ICT/pin testing. OM-340 also shows remarkable print capability performance on different board designs, particularly with ultra-fine feature repeatability and high throughput applications.

ALPHA OM-340 is formulated to deliver excellent visual joint cosmetics and best in class in circuit pin test yields. Additionally, it meets IPC Class III requirements for voiding and ROL0 IPC classifications, ensuring maximum long-term product reliability.

Product Key Features

  • Maximum reliability
  • Excellent solder and flux cosmetics after reflow soldering
  • Ensures excellent print capability on diverse board designs
  • Low head in pillow defects

Applications

Product Family
AP-OM340
SAC305
T4
500g Jar

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

Chemical Properties
Flux Type
Flux Type ROL0
Physical Properties
Particle Size
Particle Size Type 3, 4, 4.5, 5, 6
General Properties
Alloy Type
Alloy Type
A metallic element type
 SAC305, SAC405, Sn96Ag4, SACX® Plus 0307, SACXPlus 0807, Innolot
Shelf Life
Shelf Life @ 5°C 180 days

Additional Information

ALPHA OM-340 SAC305 & Innolot Typical Reflow Profile Recommendation

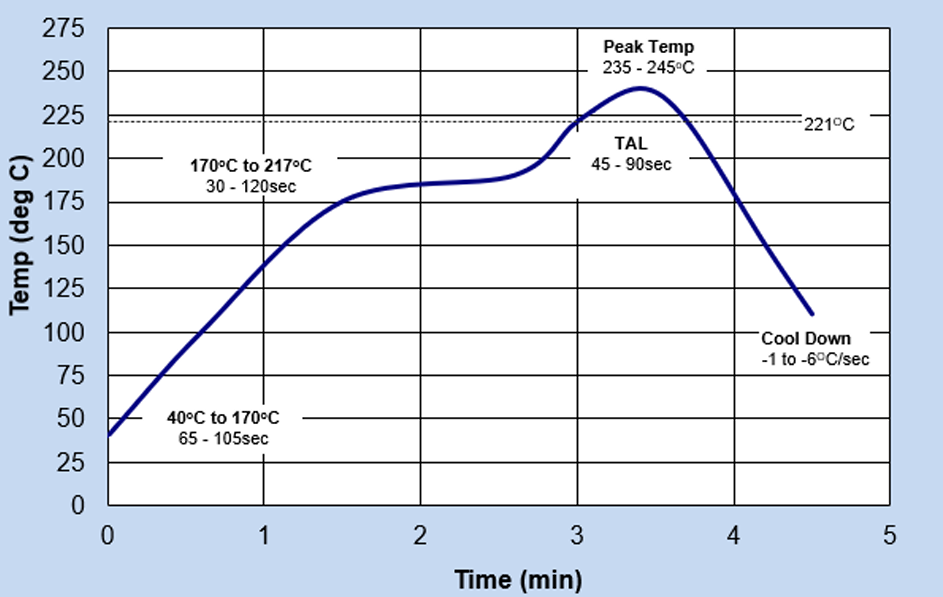

Soak Profile (SAC305 & Innolot)

OM340SoakProfile

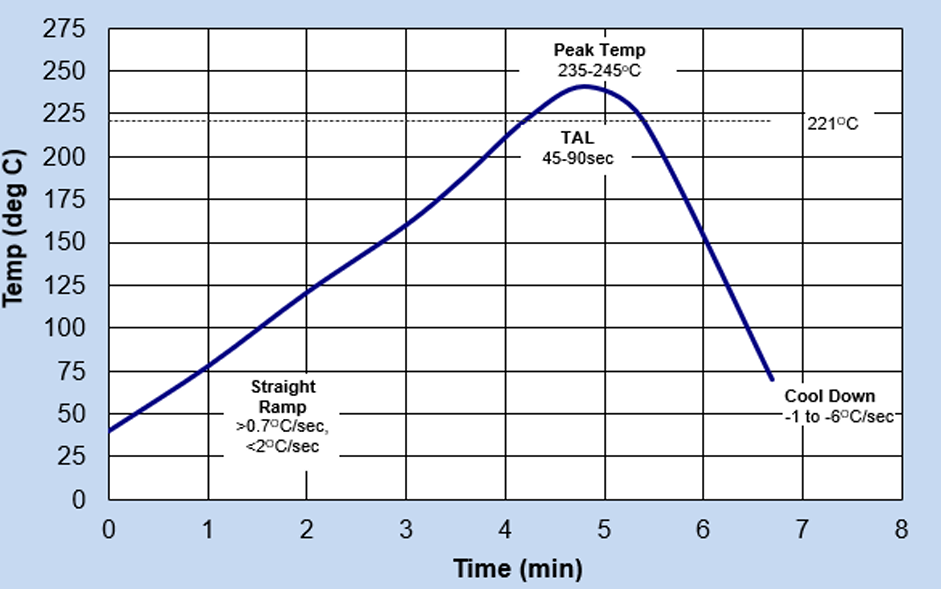

Straight Ramp (SAC305 & Innolot)

StraightRamp
