DK52 Gray Insulating Coating Powder

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • DK52 Coating Powder
  • Gray, insulating, epoxy based
  • For high voltage fuses and low voltage bus bars

Product Description

A uniquely flexible insulating coating powder for high voltage fuses, lightning arrestors, low voltage busbars and other niche applications

DK52 Gray is a flexible, moisture resistant epoxy coating powder developed for the insulation of high voltage fuses, axial leaded fuses, and other high voltage electrical apparatus. It offers very high flexibility, which provides maximum efficiency of low voltage busbar designs, which can often involve complex shapes. Besides being very flexible, DK52 Gray carries a UL recognition (RTI) for 100,000 hours at 105°C making it ideal for applications requiring high thermal stability. The fusion bonded coating is smooth, tough, and moisture resistant for applications up to 600V. DK52 Gray is UL recognized.

Advantages of DK52 Gray for High Voltage Fuses and other Niche Applications

  • Very flexible epoxy coating powder
  • High voltage fuses and low voltage busbars

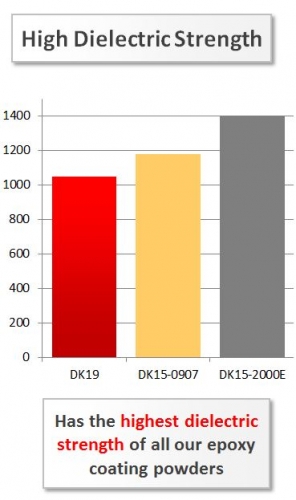

  • Very high dielectric strength
  • Meets minimum RTI rating

Typical applications and uses of {product_name} include:

  • Low Voltage (600V) Copper, Aluminum and Brass Busbars
  • High Voltage Fuse Coating
  • Leaded Axial Fuse Coating
  • Lighting Arrestors
  • Switchgear Equipment for Power Distribution
Read More
Product Family
DK1008
EU Pail (15.88kgs)

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 8 weeks Shipping in 8 weeks

Technical Specifications


Additional Information

Pricing & Availability

Pricing for DK52 Gray Insulating Coating Powder

Pricing and Volume Price Breaks for DK52 Gray Insulating Coating Powder are available by contacting us. You cannot order this product directly online.

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has warehouses and ships from both Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied. If your shipping address is to the United States, we request your company’s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order. If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders.

Minimum Order Quantity for DK52 Gray Insulating Coating Powder

The minimum order quantity for this package size is (s).

Shipping Charges for DK52 Gray Insulating Coating Powder

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

  • Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Europe BV (Amsterdam, the Netherlands)
  • Canada, USA, Mexico and South America: Shipping from CAPLINQ Corporation (Ottawa, Canada)


Payment option for DK52 Gray Insulating Coating Powder

During the checkout process, you will be presented with several payment options including:

  • Credit Card (We accept VISA and Mastercard)
  • Bank Transfer (You will be given the payment instructions at the time of order placement)
  • PayPal (Where you can also pay with American Express Cards)
  • Purchase Order (You must be preapproved first. See our Online Credit Application)

Availability for DK52 Gray Insulating Coating Powder

To the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order. Contact us if anything is unclear or you need more assistance.

Technical Specifications

Short Description of DK52 Gray Insulating Coating Powder

Technical Datasheets for DK52 Gray Insulating Coating Powder

TDS (English) Kapton_Technical_Data_Sheet Click to access DK52 Gray Insulating Coating Powder Technical Data Sheet
*Note that only registered users may access technical datasheets

Competitive Crossovers

#shortdesc
Compare price and quality of DK15-0907 Red Insulating Epoxy Coating Powder to these other brands

Please see the section above for a list of Competitive Brands that DK52 Gray Insulating Coating Powder competes against.

Videos & Other Media

Videos & Other Related Media

Please visit or subscribe to our YouTube Channel.

See this video that shows the difference between a good and a bad fluidized epoxy coating powder bed.

Product Reviews

Product Reviews for DK52 Gray Insulating Coating Powder

Customer Reviews:

There are yet no reviews for this product.
Please log in to write a review.

Packaging Details

Packaging Details for DK52 Gray Insulating Coating Powder

The following information is specifically related to each unit of measure of DK52 Gray Insulating Coating Powder. If you which to compare this to other product sizes, click on the respective product from the list above and check here for values specific to that product. These values are taken from our internal database and are used in the calculation of the gross weight and packaging dimensions of the goods during shipping. You can use these values to to approximate delivery charges using your own carrier.

Each unit of DK52 Gray Insulating Coating Powder has the following:

  • Unit of Measurement:
  • Dimensions (length x width x height): 0 x 0 x 0
  • Weight: 0.0000
