SAC305 Solder Preforms on Tape & Reel

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • SAC 305 on Tape & Reel
  • Designed for Pick & Place
  • Available for all sizes of solder spheres

Product Description

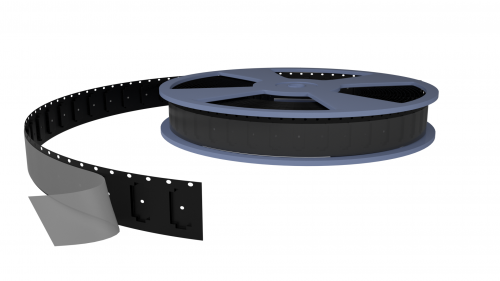

LINQALLOY SAC305 on Tape & Reel

Caplinq offers SAC305 solder spheres on a Tape and Reel. Arrangements range from 7" up to 12 and 13" reels. Our SAC305 solder sphere product offering includes lead-free and lead-tin solder spheres ranging in diameter from 60 to 890 micron.

When using solder spheres in integrated circuits (IC’s) the production process can require a very precise amount and placement of the solder material. IC’s are made in high volumes through an automated process and the different components that are part of the IC are placed using a pick and place machine. Examples of packaging techniques that use solder spheres in the production of IC’s are ball grid arrays (PBGA, CBGA, TBGA and µBGA) and flip chips (C4).

To be able to use our solder spheres in these high volume, automated processes we can package your solder spheres on tape and reel. Our tape and reel solder spheres can be used on almost all existing pick and place tape feeders, which means you can keep using your existing pick and place equipment to ensure your solder material is placed with the right speed and precision. Our tapes and reel packaging service is available for all solder sphere sizes.

Product Family
TR-SAC305
0603 Preforms mm 0402 Preforms mm
12 inch reel 13 inch reel
15000 kpcs 25000 kpcs

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 4 - 6 weeks Shipping in 4 - 6 weeks Shipping in 4 - 6 weeks

Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
Sn96.5Ag3.0Cu0.5
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
7.4
Metal Loading
Copper (Cu)
Copper (Cu)
Copper is a soft malleable and ductile metal with a very high thermal and electrical conductivity.
0.5 %
Silver (Ag) 3 %
Tin (Sn) 96.5 %
Thermal Properties
Melting Temperature
Liquidus Melting Temperature
Liquidus Melting Temperature
Liquidus, is the temperature point at which an alloy becomes completely liquid.
221 °C
Solidus Melting Temperature
Solidus Melting Temperature
Solidus is the temperature point at which a completely solid alloy starts melting and becoming softer.
217 °C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
Yes

Additional Information

Preform

Length(mm)

Width(mm)

Height(mm)

Volume(mm3)

0201

0.60

0.30

0.30

0.054

0402

1

0.50

0.50

0.250

0603

1.6

0.8

0.8

1.020

0805

2.03

1.27

0.76

1.960

1206

3.56

1.52

0.77

4.170



Packaging

0201

0402

0603

0805

1206

7” reel

20,000

10,000

4,000

3-4,000

3-4,000

12” reel

-

25,000

15,000

15,000

15,000

Dielectric

Paper

Paper

Plastic

Plastic

Plastic
