TGP 1200 | Thermal Gap Pad

Harmonization Code : 3824.99.96.99 |   Prepared binders for foundry moulds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included : Other : Other: Other
Main features
  • 1.03 Thermal Impedance
  • 1.2 Thermal Conductivity
  • Competitive cost of ownership

Product Description

Honeywell's TGP1200 has a very competitive cost of ownership and is ideal for not extremely demanding applications. It is naturally tacky, and requires no additional adhesive which could inhibit thermal performance.

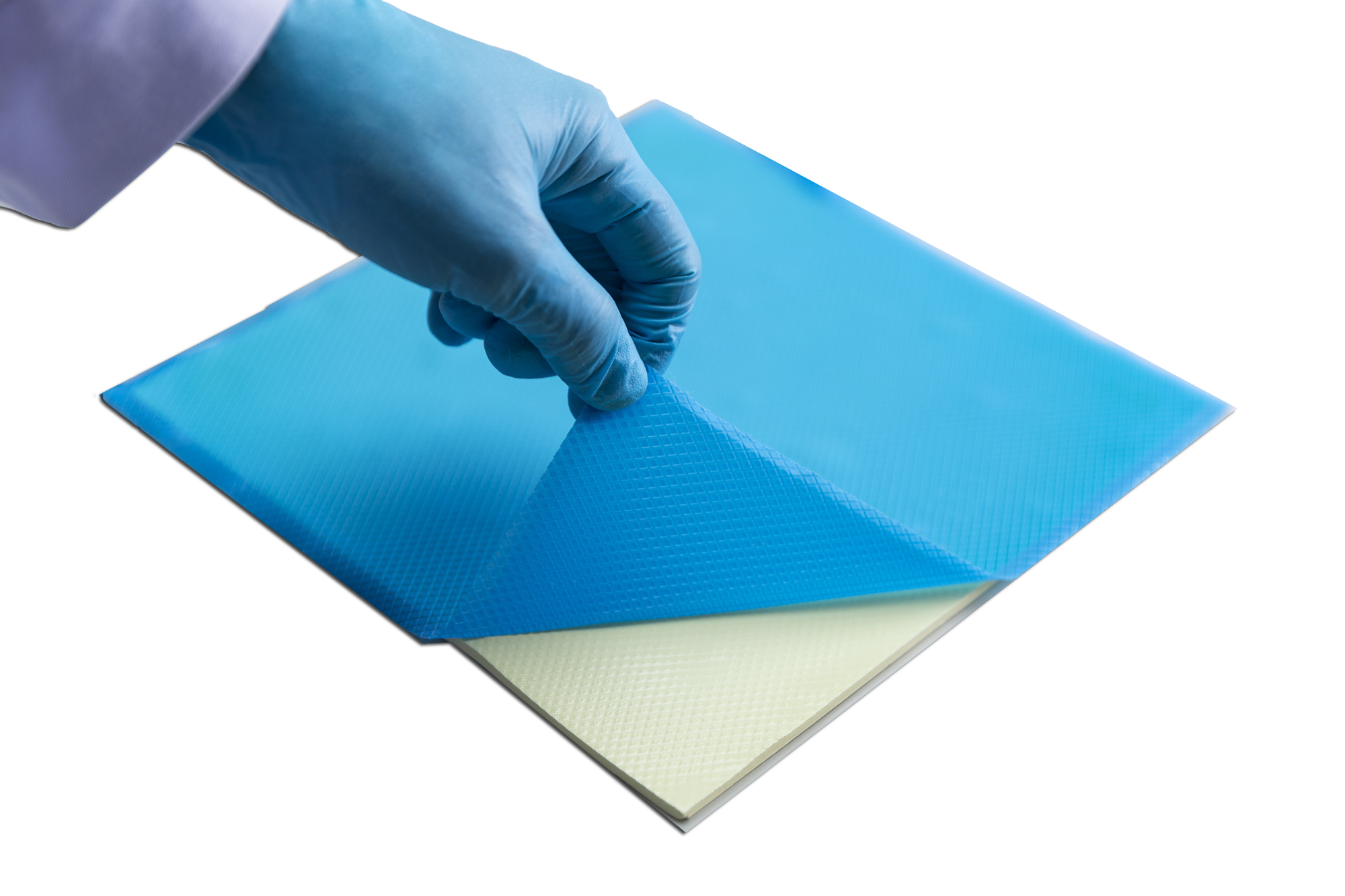

Honeywell's TGP1200 Thermal Gap Pads (TGP) provide high thermal performance with ease of use across a multitude of applications. Their ultra-high compressibility enables low stress and excellent conformity to mating surfaces. They are designed to minimize thermal resistance at interfaces, and maintain excellent performance through reliability testing.

Products have very low hardness and are available in a thickness range from 0.5mm to 5.0mm with 0.25mm intervals.

Product Family
TGP1200
457 x 457 x 1.0mm Sheet 457 x 457 x 2.0mm Sheet 457 x 457 x 2.5mm Sheet 457 x 457 x 3.5mm Sheet

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Color
Color
The color
 Blue
Film Thickness 0.5 - 5 mm
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
 1.75
Electrical Properties
Dielectric Constant
Dielectric Constant
Dielectric Constant (k), commonly known as relative permittivity, is a number relating the ability of a material to carry alternating current to the ability of vacuum to carry alternating current.

It determines the ability of an insulator to store electrical energy and is the ratio of electric permeability in vacuum against the electric permeability of a material.

The lower the dielectric constant (κ) and dissipation factor, the less energy is absorbed from an electric field, making it a much better insulator.

It is a dimensionless property that can be affected by various factors such as the
thickness uniformity of a material, insufficient contact between the sample and electrodes, water adsorption and contact resistance.
Dielectric Constant @ 1000 kHz 4.5
Volume Resistivity
Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.
 4.0x1012 Ohms⋅cm
Mechanical Properties
Hardness
Hardness
Hardness is a dimensionless quantity. There is no direct relationship between measurements in one scale and their equivalent in another scale or another hardness test.
Durometer (Shore 00) 30
Thermal Properties
Thermal Conductivity
Thermal Conductivity
Thermal conductivity describes the ability of a material to conduct heat. It is required by power packages in order to dissipate heat and maintain stable electrical performance.

Thermal conductivity units are [W/(m K)] in the SI system and [Btu/(hr ft °F)] in the Imperial system.
 1.2 W/m.K
Thermal Impedance 1.03 °C·cm²/W
UL 94 Rating
UL 94 Rating
Flammability rating classification.
It determines how fast a material burns or extinguishes once it is ignited.

HB: slow burning on a horizontal specimen; burning rate less than 76 mm/min for thickness less than 3 mm or burning stops before 100 mm
V-2: burning stops within 30 seconds on a vertical specimen; drips of flaming particles are allowed.
V-1: burning stops within 30 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
V-0: burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
5VB: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may develop a hole.
5VA: burning stops within 60 seconds on a vertical specimen; no drips allowed; plaque specimens may not develop a hole
 V-0

Additional Information



alt



Thickness range:

  • 0.5-5.0mm with 0.25mm incremental

Thickness Tolerance: >1mm, ±10%

  • 0.5-1mm, ±0.1mm
  • <0.5mm, ±0.05mm
