Ag96 | Linqalloy Silver Bonding wire


Main features
  • ±1% Gold Flash (Au)
  • ±3% Palladium Coating (Pd)
  • Silver (Ag) 96% Balance

Product Description

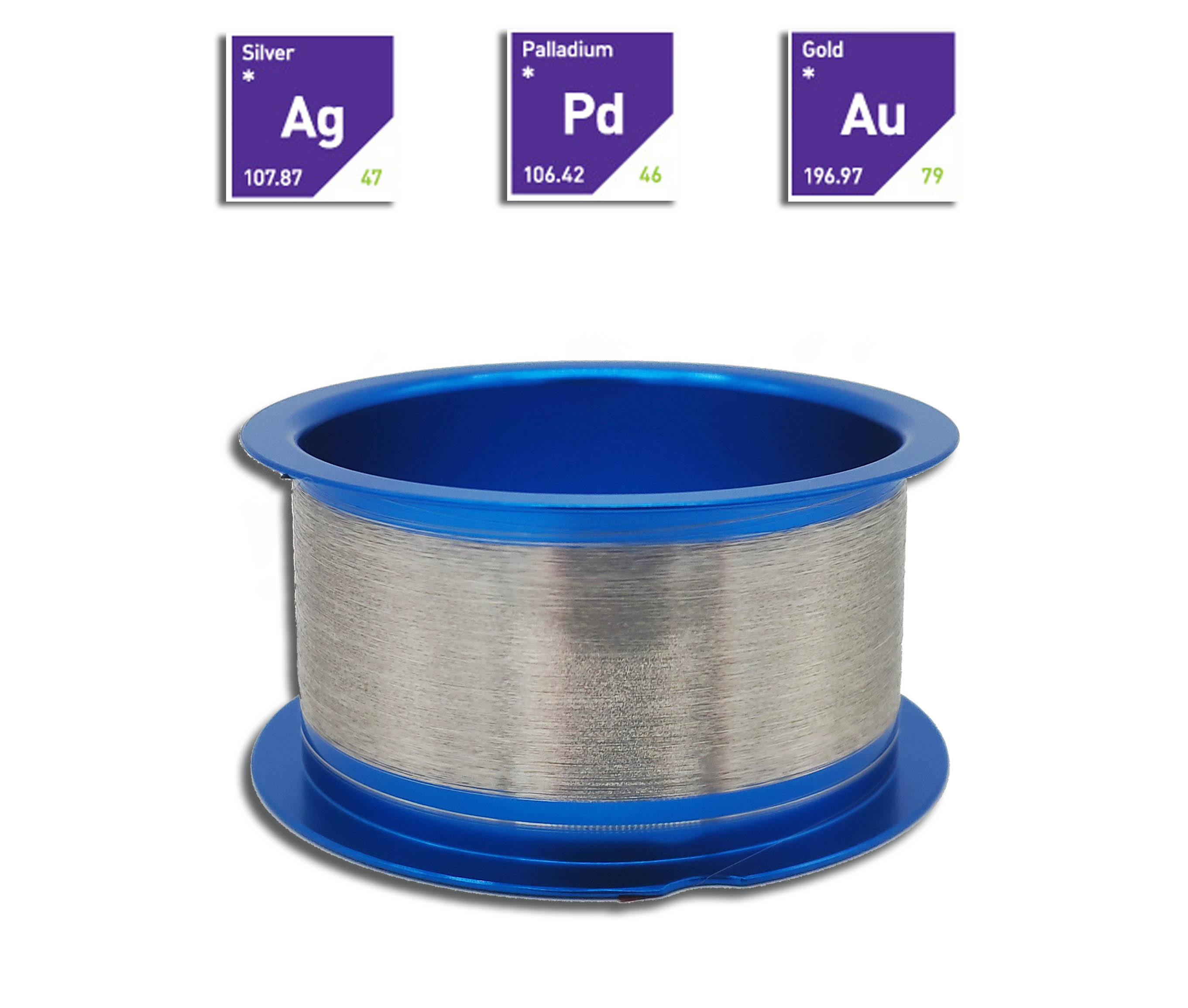

LINQALLOY Ag96 Au Flash, Pd coated Silver wire is a winded,smooth surfaced, unpolluted bonding wire, ideal for LED and IC semiconductor applications. It is available in thicknesses ranging from 18 to 25 microns and is fully compliant with the RoHS requirements of specific hazardous substance control.

LINQALLOY Ag96 is a low purity Silver bonding wire that is softer than traditional Copper wires and much cheaper than Gold wires while maintaining the wire drawing ability and reliability due to the thin Gold layer addition. Meanwhile the Palladium coating enhances the storage reliability while also preventing Ag dissolution. Low purity Silver alloys have higher resistivity, so for applications requiring higher speeds you might want to look at alternatives such as Linqalloy Ag99

Storage conditions:

Gold flash Palladium coated Silver wires can be stored for 12 months in a vacuum sealed bag and need to be used in 48hours after exposure to ambient environment. In a Nitrogen protected environment they have a work life of 7 days.

  • The vacuum sealed product needs to be stored in a stable and clean environment. The optimum storage temperature is ±25℃ with a relative humidity ranging from 30% to 70%.
  • Once unsealed, put the product in a Nitrogen protected environment (up to 7 days). Otherwise, the recommended service life is 48 hours for ambient exposure .
  • It is recommended to use hydrogen-nitrogen mixed gas with a hydrogen content of 5.0% for protection while bonding
Product Family
Ag96

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Technical Specifications

Mechanical Properties
Elongation
Elongation
Elongation is the process of lengthening something.

It is a percentage that measures the initial, unstressed, length compared to the length of the material right before it breaks.

It is commonly referred to as Ultimate Elongation or Tensile Elongation at break.
10 - 20 %
Thermal Properties
Melting Temperature
Melting temperature 980 - 1030 °C
