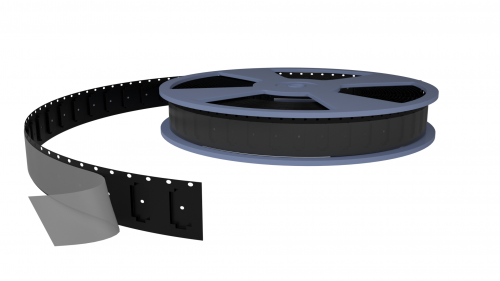

Copper Core SAC305 on 13" Tape & Reel

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Copper core Sn/Ag/Cu alloy on tape & reel
  • Suitable for BGA and flip chip packaging techniques
  • Compatible with almost all existing pick and place feeders

Product Description

LINQALLOY CC- SAC305 are copper core SAC305 solder spheres in a Tape and Reel format of 13 inches. Our CC-SAC305 solder sphere product range encompasses solder spheres of varying diameters, spanning from 300 to 889 microns.

In the production of integrated circuits (ICs), the usage of solder spheres is critical for achieving precise amounts and placement of solder material. Automated production processes facilitate high-volume manufacturing of ICs, with the different components of the ICs being placed using pick and place machines. Packaging techniques such as ball grid arrays (PBGA, CBGA, TBGA, and µBGA) and flip chips (C4) use solder spheres in their production.

To enable the utilization of our solder spheres in these high-volume, automated processes, we offer our solder spheres in a Tape and Reel format. Our Tape and Reel solder spheres are compatible with nearly all existing pick and place tape feeders, enabling seamless integration with your current pick and place equipment. Our Tape and Reel packaging service is available for all sizes of solder spheres. If the solder sphere size you require is not listed in our product range, kindly contact us for a quote.

Product Family
33 cm
40 kpcs
0.350 mm

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
Metal Loading
Copper (Cu)
Copper (Cu)
Copper is a soft malleable and ductile metal with a very high thermal and electrical conductivity.
0.5 %
Silver (Ag) 3 %
Tin (Sn) 96.5 %
Thermal Properties
Melting Temperature
Liquidus Melting Temperature
Liquidus Melting Temperature
Liquidus, is the temperature point at which an alloy becomes completely liquid.
221 °C
Solidus Melting Temperature
Solidus Melting Temperature
Solidus is the temperature point at which a completely solid alloy starts melting and becoming softer.
217 °C
