DK15-0907 | Red Insulating Epoxy Coating Powder

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • DK15-0907 Coating Powder
  • Red, insulating, epoxy based
  • For low and medium voltage bus bars

Product Description

The one powder solution for low and medium voltage busbar and switch gear applications

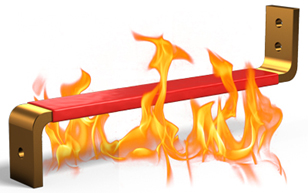

DK15-0907 Red is an epoxy based, "One Powder Solution" coating powder developed for low and medium voltage (600V - 38,000V) bus bars. Used for over 20 years by major power distribution companies for low and medium-voltage bus bar applications, DK15-0907 provides a smooth surface appearance with high edge coverage. The fusion bonded coating is smooth, tough, and moisture resistant for applications up to 38 KV. DK15-0907 is UL recognized for UL94-V0 rating and meets the UL746B Relative Thermal Index (RTI) of 130°C and is currently on-test for an RTI at or above 150°C. Rapid and thick build reduces production cycle times. Particle size is optimized for the fluidized bed coating process.

Advantages of DK15-0907 for Busbar Coating

  • One powder for low and medium voltage busbars
  • Used for more than 15 years by major power distribution companies

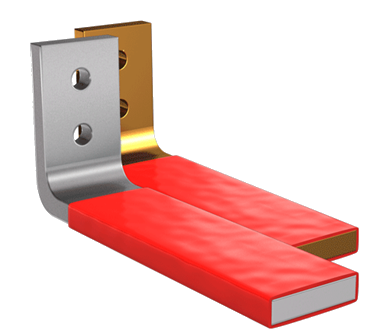

  • Suitable for copper and aluminum bar
  • Smooth, uniform coating build in excess of 200 mils (5 mm)
  • Rapid build rates to reduce cycle times
  • Productivity support including:

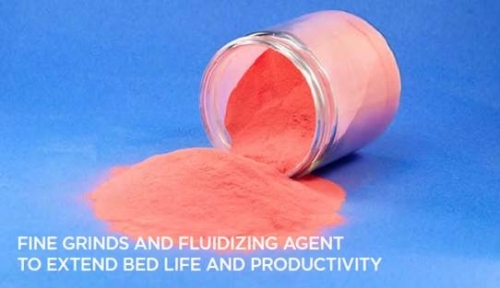

  • Fine grind powder to replenish size distribution
  • Fluidizing agent to promote uniform build
  • Ongoing testing to optimize quality & productivity

Typical applications and uses of DK15-0907 include:

  • Low Voltage (600V) Copper, Aluminum and Brass Busbars
  • Medium Voltage (up to 38kV) Copper, Aluminum and Brass Busbars
  • Switchgear Equipment for Power Distribution
Product Family
DK0907
EU Pail (15.88kgs)

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Technical Specifications
