HB4S | Quartz Sand 99.995%


Main features
  • ≥99.995% SiO2
  • Ultra High purity
  • Flexible Particle Size

Product Description

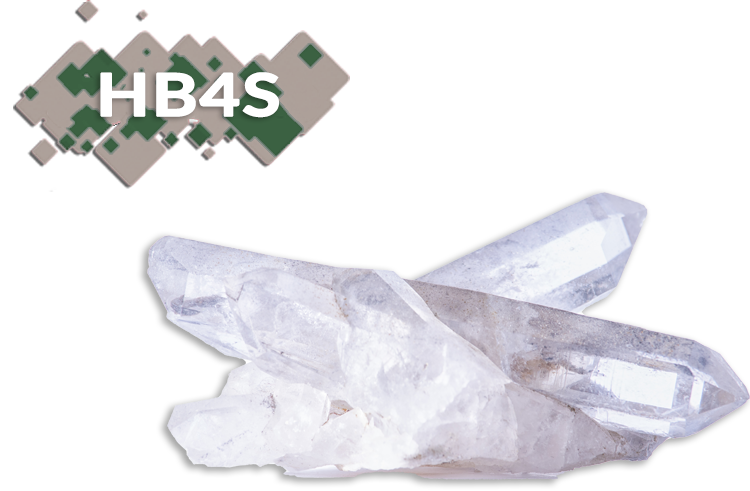

HB4S Quartz sand Silica is produced from chemically treated and water washed high purity quartz, producing an Ultra high purity product. It has all of the benefits of the Quartz sand product line such as low alpha ray emissions, iron, chromium, manganium and copper accompanied by a whopping SiO2 content of 99.995%.

HB4S  is an inherently inert white product that can be used for any kind of optical application. Ultra high purity grade is commonly used as a filler powder in Semiconductor grade Epoxy molding compounds and Copper clad laminates as well as  Silica glass for halogen lamp bulbs.

HB4S is tested and controlled to rigorous standards which ensure consistent chemical and physical properties resulting in predictable and repeatable performance.  As with our entire product line, the particle size distribution is flexible and adjustable to your needs.



Product Family
QS-HB4S
1 Ton Bulk bag

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 4 - 8 weeks Shipping in 4 - 8 weeks

Technical Specifications

Chemical Properties
Silicon Dioxide(SiO2) 99.995 %
Other Properties
Metallic Impurity
Aluminum (Al)
Aluminum (Al)
Aluminium is a metallic element with a silvery-white, soft nonmagnetic, ductile elements that has a melting point of 660.3 C
30 ppm (max)
Chromium (Cr)
Chromium (Cr)
Chemical element with a steely-grey, hard and brittle metal, resists tarnishing and has a high melting point.
0.05 ppm (max)
Copper (Cu) 0.05 ppm (max)
Iron (Fe)
Iron (Fe)
A chemical element with a melting point of 1,538 C
1 ppm (max)
Magnesium (Mg) 1 ppm (max)
Potassium (K) 1 ppm (max)
Sodium (Na) 1 ppm (max)

Additional Information

Particle Size Analysis

Microns % Finer
250 99.5
200 75
180 50
125 20
100 3











Typical Values. They do Not Represent A Specification
