HLT 10000 | Two part Hybrid Thermal Gel

Harmonization Code : 3824.99.96.99 |   Prepared binders for foundry moulds or cores; chemical products and preparations of the chemical or allied industries (including those consisting of mixtures of natural products), not elsewhere specified or included : Other : Other: Other
Main features
  • Dark Gray + Gray
  • 10 Thermal Conductivity
  • The pinnacle of TIM

Product Description

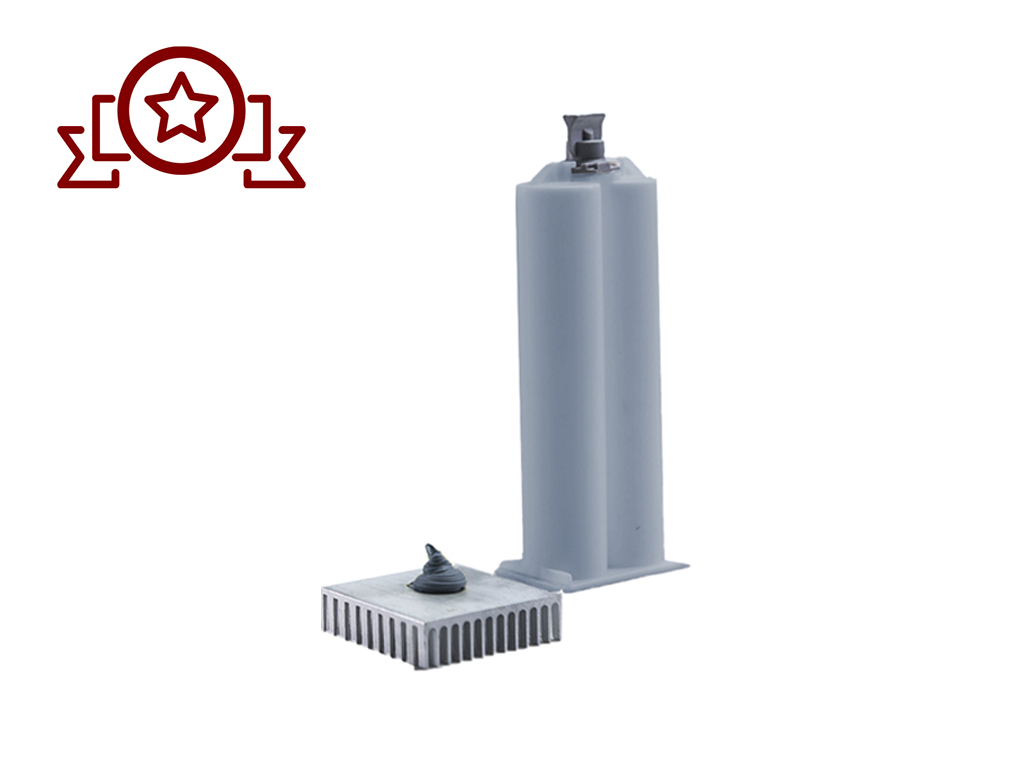

Honeywell HLT 10000 High TC Hybrid TIM is a two-component, dispensable thermal gap filler, which offers the highest thermal conductivity of the entire product line and long-term reliability. This top of the line product is made for the most demanding and delicate applications in the market. It starts with a very low thickness and compresses just as easily, reaching its final thickness in a remarkable rate. It is also easy to dispense and rework, making it ideal for high volume manufacturing. To add to that, it offers reduced oil separation and doesn't exhibit pump out or cracking.

Honeywell HLT 10000 has a thermal conductivity of 10 W/mK accompanied with high reliability and ease of dispense. It can be cured after two-component mixing and can be cured faster under higher temperature. Its high compressibility minimizes thermal resistance at interfaces, while maintaining excellent performance during reliability testing. To make a long story short, this is the best TIM in the market and among other, it can be used for demanding mm wafer antenna 5G applications.

You probably noticed the lack of information and product properties. Since those are top notch products, we go to certain extends to protect Honeywell's IP and competitive advantages. A plethora of information,  including additional data,  images and samples are available once an NDA is in place. Contact us for more details.

Product Family
2x 200cc Syringe

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Technical Specifications

General Properties
The color
Dark Gray - Gray
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 25°C 183 days
Thermal Properties
Thermal Conductivity
Thermal Conductivity
Thermal conductivity describes the ability of a material to conduct heat. It is required by power packages in order to dissipate heat and maintain stable electrical performance.

Thermal conductivity units are [W/(m K)] in the SI system and [Btu/(hr ft °F)] in the Imperial system.
10 W/m.K
