LINQCELL GDP210-MP | 210um Carbon Paper

Harmonization Code : 6815.11.00.00 |   Articles of stone or of other mineral substances, not elsewhere specified or included; Non-electrical articles of graphite or other carbon; Carbon fibres and articles of carbon fibres
Main features
  • 0.21mm - 210um - 8.2mil
  • Treated at 1600°C
  • With MPL and Hydrophobic coating

Product Description

LINQCELL GDP210-MP is a 0.21mm thick carbon paper with a Microporous layer and PTFE. It is commonly used as a gas diffusion layer and electrode for fuel cells. Its through-plane resistivity is around 7.8 mΩcm2. This carbon paper is highly flexible and has excellent air permeability. It can compress down to 160um at 3.5MPa (350 N/cm2).

LINQCELL GDP210-MP is a close alternative to the discontinued Spectracarb 0850. There is also the option to make these with higher heat treatment as GDP210-MPS. This treatment reduces the resistivity and increases the compressibility of the sheets, for applications that require these properties.

Product Family
GDP210-MP
40 x 40 cm

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 6 - 8 weeks Shipping in 6 - 8 weeks In stock
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Basis Weight
Basis Weight
Basis weight refers to the weight measured in pounds off 500 sheets of paper in that paper’s basic sheet size.
 92 g/m2
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
 210 μm
Chemical Properties
Air Permeability
Air Permeability
The air permeability of a fabric is a measure of how well it allows the passage of air through it.
 93 cm3/s/cm2
Mechanical Properties
Tensile Strength (Thin Film)
Tensile Strength (Thin Film)
Tensile strength determines the resistance of a material to break under tension and it measures how much elongating load (or tensile stress) it can handle before fracture.

To make it simple, it measures how much force we have to apply when pulling apart a material before it breaks.
 23 N/cm
Electrical Properties
TP Resistance
TP Resistance
Opposition to the flow of electric current.
 7.8 mΩcm2
Voltage loss 17 mV

Additional Information

LINQCELL GDP210-MP Compressibility

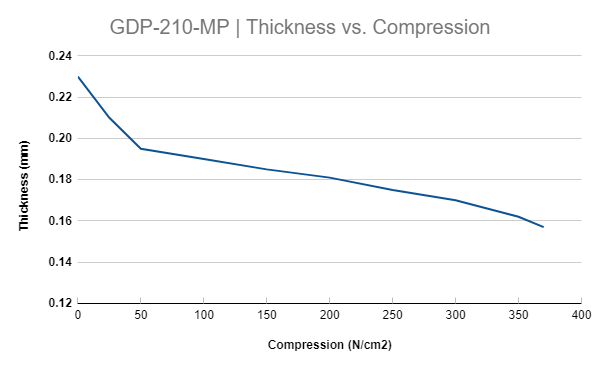

GDP210-MP Thickness vs Compression Pressure
Compressibility vs Compression Pressure



LINQCELL GDP210-MP Electrochemical Performance

Test Settings
Operating Pressure 10 psi
Clamping Pressure 10 psi
Anode Fuel H2
Cathode Fuel Air
Anode Chemical Dose Ratio 1.5 splm
Cathode Chemical Dose Ratio 2.5 splm
GDP210MP Polarization Curve



I see a checkered pattern on the sheet. Is this relevant to MD/XD?

The checkered pattern of  GDP210-MP is caused by the mesh pad that is used to apply the hydrophobic layer.  This has no effect on the products' strength or mechanical characteristics. Generally, the hydrophobic surface will face up, and the other side will not have this pattern.

Sometimes we tend to use a felt pad instead of a mesh, as with GPD-210-MPS, and the checkered pattern is not noticeable. So all in all these have nothing to do with MD/XD and is just a visual result of the methods used to make the surface Hydrophobic.

The only way to tell which side is which is this one:
