Sample Kit | Linqstat VCF, MVCF & XVCF Conductive and Antistatic Films

Harmonization Code : 3920.10.28.99 |   Polymers of Ethylene Plates, Sheets, Film, Foil, Tape, or Strips (Non-cellular), having a thickness not exceeding 0.125mm, having a specific gravity of 0.94 or more
Main features

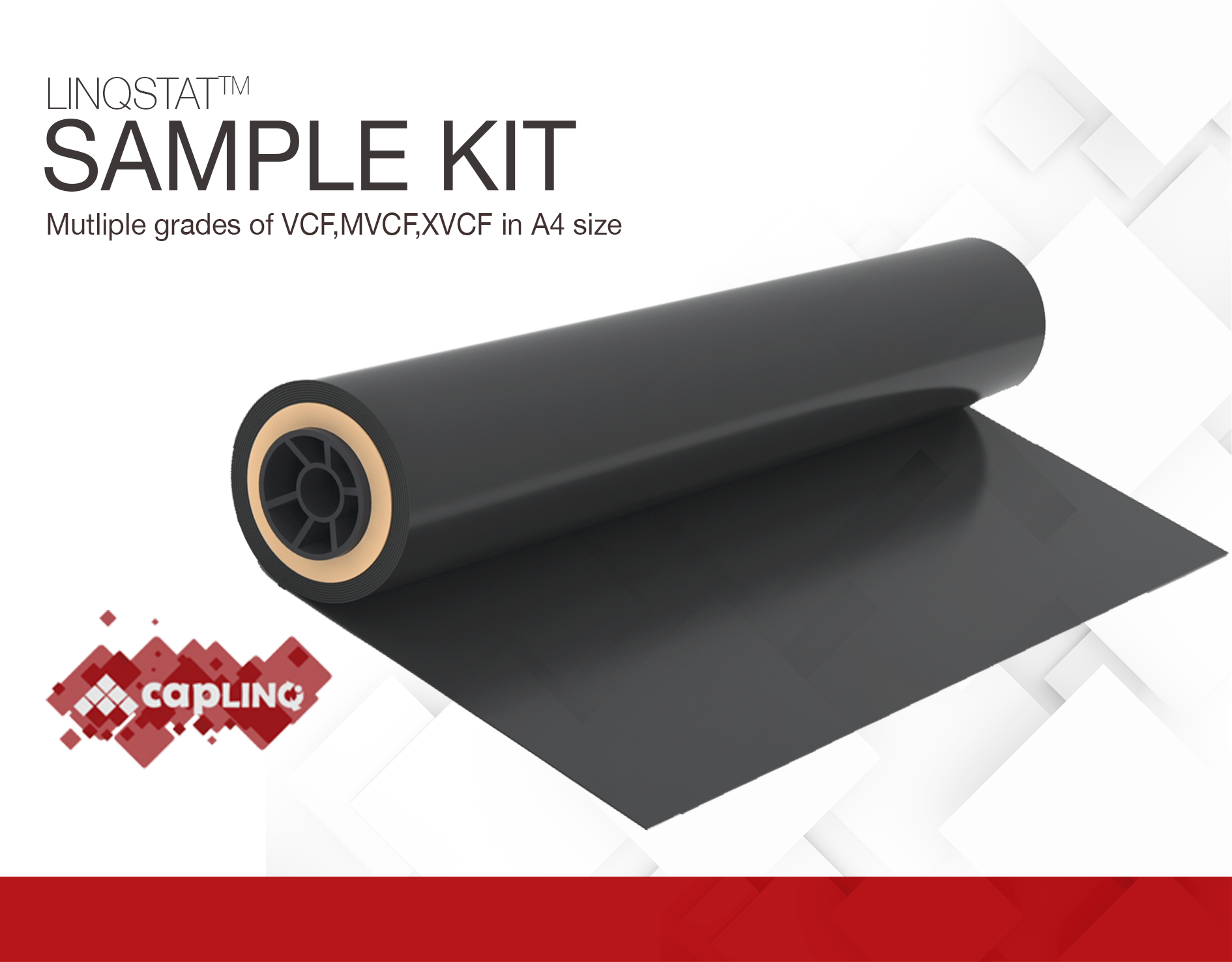

  • Linqstat Sample Kit
  • Complete package with Conductive and Antistatic
  • Carbon loaded PE film with low surface resistivity

Product Description

CAPLINQ offers a range of carbon loaded polyethylene (PE) based LINQSTAT-branded electrically conductive and antistatic plastic film. Our electrically conductive plastics start with a surface resistivity of less than 200,000 ohm-per-square and can go as low as 200 ohms-per-square.

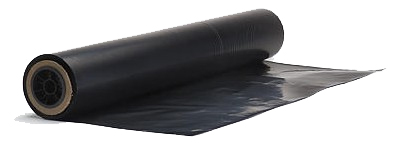

LINQSTAT™ VCF, MVCF- and XVCF-Series electrically conductive plastic sheeting is a black, carbon-filled, volume-conductive polyethylene film designed to provide both physical and static protection in numerous semiconductor, electronics, and Smartcard applications. The different grade of materials allows users to cover a wide range of possible applications.

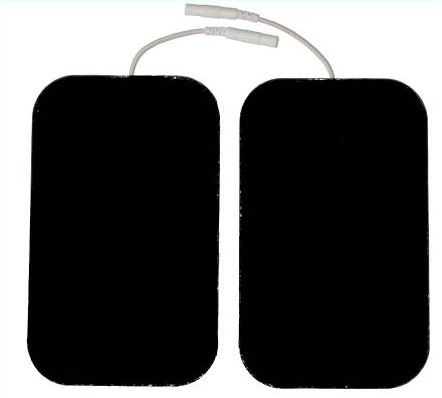

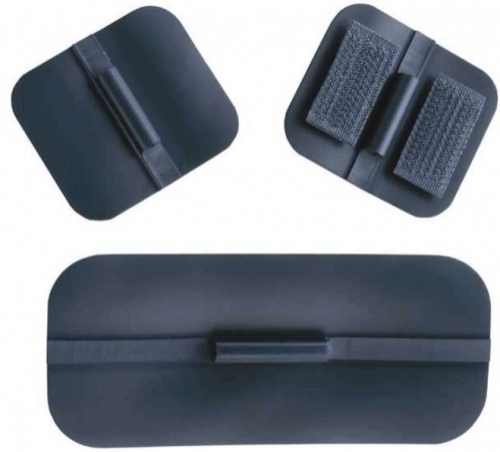

A common application of the conductive polyethylene films is as a pressure sensor. The Linqstat MVCF films can be used as a weak pressure sensor making it useful for applications that have large surface areas and expect large pressure applications. The Linqstat XVCF films are used for more sensitive pressure sensor applications. The VCF Linqstat with lower conductivity levels are perfect for antistatic packaging plastic, for example as an antistatic interleaver for smartcard (micromodule) applications. It’s antistatic properties make the Linqstat films also well suited for EMI and RF shielding applications.

The Sample package includes 1 A4 size sheet of:

  • Linqstat MVCF-8S10K
  • Linqstat MVCF-4S50K
  • Linqstat XVCF-3S500
  • Linqstat XVCF-3.5S200
  • Linqstat XVCF-4S500

Sample kit contents are subject to change based on stock availability at the time of order.

Sample kits are not available at the moment, as we restock on Sample rolls. Contact us for more info.

Product Family
Linqstat VCF/MVCF/XVCF-Sample Kit
Conductive (4 A4 sheets)
Normal Price
Sale Price
Quantity OrderedPrice per Kit
  1 - 99 Kit  $25.00 /Kit
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeks


Technical Specifications

General Properties
Chemistry Type Carbon-Loaded PE
The color
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
Thermal Properties
Heat Sealing
Heat Distortion Temperature
Heat Distortion Temperature
The temperaturea t which a polymer or plastic sample deforms under a specified load
85 °C
Heat Seal Pressure 250 kPa
Heat Seal Temperature 100 °C
Heat Seal Time 3 sec
Heat Sealable Yes
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
