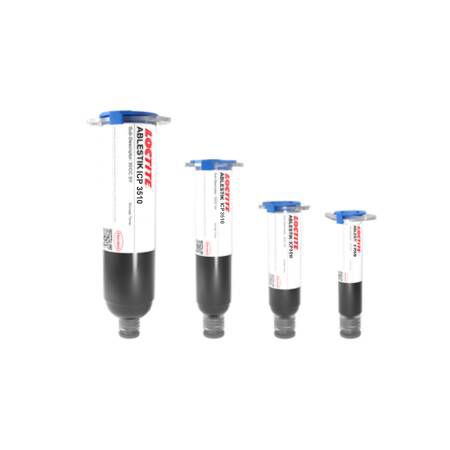

LOCTITE ABLESTIK ICP 3510

Harmonization Code : 3506.91.90.99 | Prepared glues and other prepared adhesives, not elsewhere specified or included; products suitable for use as glues or adhesives, put up for retail sale as glues or adhesives, not exceeding a net weight of 1 kg ; Adhesives based on polymers of headings 3901 to 3913 or on rubber; Other ; Other

Main features

Component assembly
Cost effective
Silver plated Cu filler

Product Description

LOCTITE® ABLESTIK ICP 3510 epoxy adhesive is designed for use in automated assembly and in-line curing operations. This electrically conductive, silver plated copper filled epoxy displays good dispense behavior and can cure fast at high temperatures.

Silver-plated Cu filler makes this material way more cost-effective and less prone to silver price fluctuations while maintaining a great amount of the properties that assembly houses are looking for.

LOCTITE® ABLESTIK ICP 3510 is heat resistant after cure, forms a high-strength bond, and is typically used as a component assembly adhesive that can be used for cameras and sensors.

Cure Schedule

1hour @ 100°C
45minutes @ 120°C
30minutes @ 150°C

Can also cure on a hot plate for 60 seconds maximum @ 180 to 190°C

Specifications

Technical Specifications

General Properties
Density Density Volumetric mass per unit	3.4 kg/m3
Physical Properties
Thixotropic index Thixotropic index Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten. A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads. It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.	4.3
Viscosity Viscosity Viscosity is a measurement of a fluid’s resistance to flow. Viscosity is commonly measured in centiPoise (cP). One cP is defined as the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP. A product like honey would have a much higher viscosity -around 10,000 cPs- compared to water. As a result, honey would flow much slower out of a tipped glass than water would. The viscosity of a material can be decreased with an increase in temperature in order to better suit an application	10,500 mPa.s
Electrical Properties
Volume Resistivity Volume Resistivity Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.	1.4x10^-3 Ohms⋅cm
