LOCTITE GC 10

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • SAC 305 - No refrigeration
  • PCB Assembly
  • Stencil Printable

Product Description

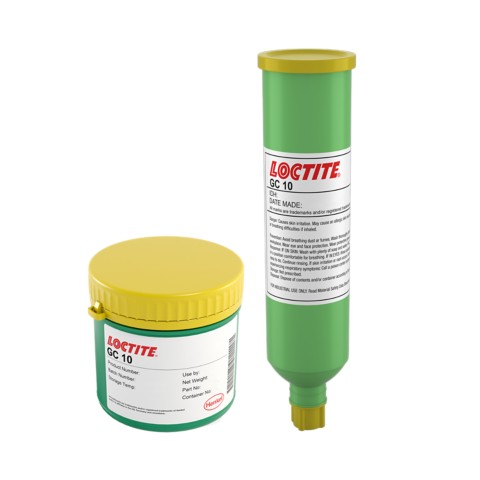

LOCTITE GC 10 is a multi purpose halogen free, zero halogens added, no-clean, low voiding, Pb-free solder paste specially formulated to provide added long term stability over a wide range of temperature conditions. The enhanced paste stability created through its novel formulation strategy increases both field application yields and on-line paste utilization. It is based on SAC305 with multiple powder forms that are distinguished by their Particle size distribution (T3, T4, T5 ranging from 15 to 45um). T3 is the standard particle size, T4 is for smaller component soldering and T5 for very small components like in SiP.

LOCTITE GC 10 also shows excellent solderability when reflowed in both air and nitrogen across a wide range of challenging surface finishes and component metallizations including immersion Ag, OSP-Cu, ENIG and CuNiZn. It supports excellent reflow to overcome industry wide HiP and NWO challenges. The new flux chemistry protects the solder joint longer, improves coalescence and optimizes wetting performance, allowing for very shiny solder joints. It is suitable for use with industry standard SAC alloys.

LOCTITE GC 10 is as Halogen-free flux that passes IC with pretreatment IPC-TM-650 /EN14582 with a ROL0 classification to ANSI/J-STD-004Rev. B. It is ideal for printing down to 0.3 mm pitch with up to 72 hours stencil life and 24 hours abandon time that make it suitable for high speed printing (up to 125mms/1) with an improved paste transfer efficiency. More importantly it exhibits an enhanced process window with superior coalesence and wetting and minimal hot slump at 182°C. A product that produces shiny solder joints with clear, colourless residues for easy post reflow inspection.

Product Family
GC10
0.5Kg Jar
T3 T4 T5

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Not Available Shipping in 8 - 12 weeks

Technical Specifications

General Properties
Metal Loading
Tin (Sn) 96.5 %
Silver (Ag) 3 %
Copper (Cu)
Copper (Cu)
Copper is a soft malleable and ductile metal with a very high thermal and electrical conductivity.
0.5 %
Alloy Type
Alloy Type
A metallic element type
SAC305
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 25°C 365 days
Mechanical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
Viscosity 200000 mPa.s
Thixotropic index
Thixotropic index
Thixotropic Index is a ratio of a material s viscosity at two different speeds in Ambient temperature, generally different by a factor of ten.

A thixotropic material s viscosity will decrease as agitation or pressure is increased. It indicates the capability of a material to hold its shape. Mayonnaise is a great example of this. It holds its shape very well, but when a shear stress is applied, the material easily spreads.

It helps in choosing a material in accordance to the application, dispense method and viscosity of a material.
0.5
Thermal Properties
Melting Temperature
Melting temperature 217 °C

Additional Information

LOCTITE GC 10 contains a stable resin system with slow evaporating solvents and minimal odor. The formulation has been tested to the requirements of the ANSI/J-STD-004B for a type ROL0 classification specification .

Storage:
Optimal storage: 5 to 25oC (± 1.5°C)
Storage information may be indicated on the product container labelling. Material removed from containers may be contaminated during use. Do not return products to the original container. Henkel Corporation cannot assume responsibility for product that has been contaminated or stored under conditions other than those previously indicated. If additional information is required, please contact your local Technical Service Center or Customer Service Representative.


Shelf Life:
Provided that LOCTITE GC 10 is stored in the original container, a minimum shelf life of 365 days at 5 to 25 °C(± 1.5°C) or 31 days at 40°C can be expected.
If stored below 20 °C, allow to stabilize to at least 23°C. Do not use forced heating methods to bring the solder paste up to temperature.
