SAC305 on 13" Tape & Reel

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Lowest cost Sn/Ag/Cu alloy on tape & reel
  • Suitable for BGA and flip chip packaging techniques
  • Compatible with almost all existing pick and place feeders

Product Description

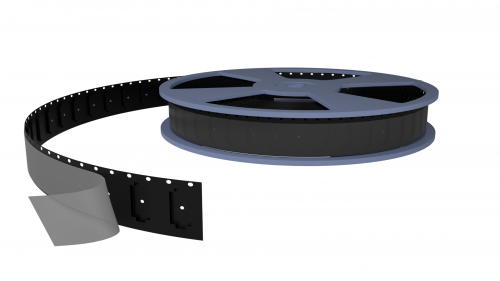

LINQALLOY SAC305 solder spheres on 13" Tape & Reel

Caplinq is pleased to offer SAC305 solder spheres on a 13 inch Tape and Reel. Our SAC305 solder sphere product offering includes lead-free and lead-tin solder spheres ranging in diameter from 60 to 890 micron.

When using solder spheres in integrated circuits (IC’s) the production process can require a very precise amount and placement of the solder material. IC’s are made in high volumes through an automated process and the different components that are part of the IC are placed using a pick and place machine. Examples of packaging techniques that use solder spheres in the production of IC’s are ball grid arrays (PBGA, CBGA, TBGA and µBGA) and flip chips (C4).

To be able to use our solder spheres in these high volume, automated processes we can package your solder spheres on tape and reel. Our tape and reel solder spheres can be used on almost all existing pick and place tape feeders, which means you can keep using your existing pick and place equipment to ensure your solder material is placed with the right speed and precision. Our tapes and reel packaging service is available for all solder sphere sizes. If you don't see the solder sphere size you require, please contact us to request a quote.

Product Family
TR13-SAC305
0.250 mm 0.300 mm 0.350 mm 0.457 mm 0.400 mm 0.500 mm 0.760 mm 0.890 mm
40 kpcs 20 kpcs
Normal Price
$1,345.565
Sale Price
$1,035.05/Reel
Quantity OrderedPrice per Reel
  1 - 2 Reel  $1,035.05 /Reel
  3 - 6 Reel  $524.58 /Reel
  7 - 25 Reel  $430.79 /Reel
  26 - 99 Reel  $309.72 /Reel
  100 - 249 Reel  $268.65 /Reel
  250 - 449 Reel  $247.92 /Reel
  450 - 999 Reel  $245.81 /Reel
Normal Price
$1,345.565
Sale Price
$1,035.05/Reel
Quantity OrderedPrice per Reel
  1 - 2 Reel  $1,035.05 /Reel
  3 - 6 Reel  $524.58 /Reel
  7 - 25 Reel  $430.79 /Reel
  26 - 99 Reel  $309.72 /Reel
Normal Price
$1,080.586
Sale Price
$831.22/Reel
Quantity OrderedPrice per Reel
  1 - 1 Reel  $831.22 /Reel
  2 - 4 Reel  $710.50 /Reel
  5 - 9 Reel  $509.62 /Reel
  10 - 24 Reel  $486.70 /Reel
  25 - 49 Reel  $395.90 /Reel
Normal Price
$720.59
Sale Price
$554.30/Reel
Quantity OrderedPrice per Reel
  3 - 6 Reel  $554.30 /Reel
  7 - 25 Reel  $419.28 /Reel
  26 - 99 Reel  $309.72 /Reel
$184.95
Shipping in 6 - 8 weeks Shipping in 6 - 8 weeks In stock

Quantity:

Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
Sn96.5Ag3.0Cu0.5
Alloy Type
Alloy Type
A metallic element type
SAC305
Specific Gravity
Specific Gravity
Specific gravity (SG) is the ratio of the density of a substance to the density of a reference substance; equivalently, it is the ratio of the mass of a substance to the mass of a reference substance for the same given volume.

For liquids, the reference substance is almost always water (1), while for gases, it is air (1.18) at room temperature. Specific gravity is unitless.
7.4g/cc
Metal Loading
Copper (Cu)
Copper (Cu)
Copper is a soft malleable and ductile metal with a very high thermal and electrical conductivity.
0.5 %
Silver (Ag) 3.0 %
Tin (Sn) 96.5 %
Thermal Properties
Melting Temperature
Liquidus Melting Temperature
Liquidus Melting Temperature
Liquidus, is the temperature point at which an alloy becomes completely liquid.
221 °C
Solidus Melting Temperature
Solidus Melting Temperature
Solidus is the temperature point at which a completely solid alloy starts melting and becoming softer.
217 °C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
Yes
