SAC387 | Pb-free Solder Spheres

Volume Price Breaks can be seen for each product by clicking on its respective link under the DESCRIPTION column and looking to the volume price break table to the right of the product image. Price per unit is reflected in this table and used during checkout.

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has entities in Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied.,

If your shipping address is to the United States, we request your company’s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order.

If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders.

DON'T LIKE THESE PRICES? Tell us what you will pay for what order quantity.

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

• Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Netherlands (Amsterdam)
• Canada, USA, Mexico and South America: Shipping from CAPLINQ Canada (Ottawa)

During the checkout process, you will be presented with several payment options including:

• Credit Card (We accept VISA and Mastercard)
• Bank Transfer (You will be given the payment instructions at the time of order placement)
• PayPal (Where you can also pay with American Express Cards)
• Purchase Order (You must be preapproved first. See our Online Credit Application)

To the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order.

Contact us if anything is unclear or you need more assistance.

Profound Materials was founded in 2000 to manufacture and market tin-lead solder spheres for the microelectronics industry. The company has expanded to occupy a 2,100m2 (22,600 sq.ft.) facility in Kaohsiung, Taiwan where it now manufactures the widest range of solder ball offering with the tightest diameter tolerance to its customers. Early in 2006, Profound Materials achieved its TS 16949:2002 certification and now develops and manufactures its own line of low alpha ball and electro-plating solder spheres.

• Typical applications and uses include
  • Ball-attach applications of ball grid array (BGA) components
  • Ball-attach applications of Chip Scale Package (CSP) components
  • Ball-attach applications for Flip Chip (FC) components
  • BGA solder sphere rework
  • CSP solder sphere rework
• Solder Temperature & Diameter Tolerances

  • Solder Temperature and Diameter Tolerance Specification

    Tin/Lead Eutectic Solder Temperature
    Tin/Lead	錫	鉛	銀	Melting Point (℃)
    	(Sn)	(Pd)	(Ag)	Eutectic	Solidus	Liquidus
    SnA3	10	90	--	--	275	302
    SnB1	62	36	2	179	--	--
    SnA1	63	37	--	183	--	--
    Leadfree (Pb-free) Solder Temperature
    Lead-free	錫	銀	銅	Melting Point (°C)
    	(Sn)	(Ag)	(Cu)	Eutectic	Solidus	Liquidus
    SAC350	96.5	3.5	--	221	--	--
    SAC105	98.5	1	0.5	--	220	225
    SAC125	98.3	1.2	0.5	--	220	225
    SAC305	96.5	3	0.5	--	217	219
    SAC387	95.5	3.8	0.7	--	217	219
    SAC405	95.5	4	0.5	--	217	219
    Diameter Tolerance & Spheroid Tolerance :
    Diameter	Diameter Tolerance			Spheroid Tolerance		Qty/bottle
    0.76 mm	±0.015 mm			1.5%		250KPCS/bottle
    0.65 mm	±0.015 mm			1.5%		250KPCS/bottle
    0.60 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.50 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.45 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.40 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.35 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.30 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.25 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.20 mm	±0.010 mm			1.5%		250KPCS/bottle
    0.15 mm	±0.005 mm			1.5%		1000KPCS/bottle
    0.10 mm	±0.005 mm			1.5%		1000KPCS/bottle

• Technical Specifications

  • METAL LOADING
    Tin (Sn)	: 95.5%
    Silver (Ag)	: 3.8%
    Copper (Cu)	: 0.7%
    Melting Temperature (Solidus)	: 217°C
    Melting Temperature (Liquidus)	: 219°C
    Spheroid Tolerance	: Within 1.5%
    DIAMETER TOLERANCE
    0.075mm - 0.15mm (3-6 mils)	: ±0.005mm (±0.2 mils)
    0.20mm - 0.60mm (8-24 mils)	: ±0.010mm (±0.4 mils)
    0.65mm - 0.76mm (25-30 mils)	: ±0.015mm (±0.6 mils)

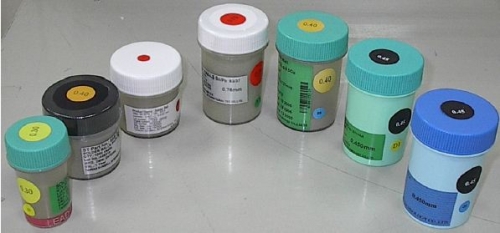

    QUANTITY PER BOTTLE
    0.075mm - 0.45mm (3-18 mils)	: 1 million pieces (1,000 kpcs)
    0.50mm (20 mils)	: 500,000 pieces (500 kpcs)
    0.60mm - 0.76mm (24-30 mils)	: 250,000 pieces (250 kpcs)

• Technical Datasheets

  • TDS (English)	PMTC Sn63Pb37 Eutectic Tin/Lead Solder Spheres
    TDS (English)	PMTC SAC305 Pb-free Solder Spheres
    TDS (English)	PMTC SAC405 Pb-free Solder Spheres
