Tempmate-B3 | Mini Temperature Data Logger
- 0°C to +125°C
- Multi Use - Robust, mini logger
- TempIT software report
Mini temperature data logger

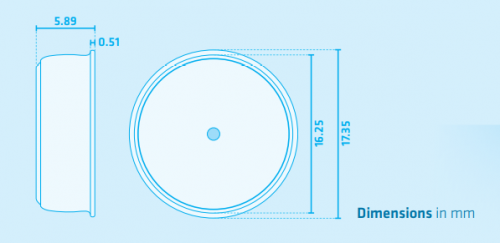

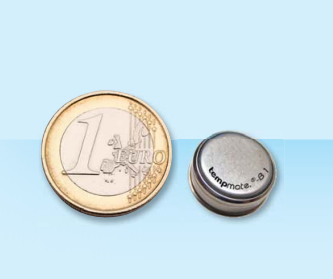

The tempmate.®-B3 mini data loggers can record up to 8,192 temperature measurements. The temperature range spans 0°C to +125°C, with an accuracy rate of up to ±0.5°C. Thanks to its extremely compact construction (about the size of a watch battery), the logger is extremely versatile.
Programming and analysis
The logger is connected to the PC via the separately available USB adapter, and is programmed, read and analysed with the aid of the user-friendly TempIT software. The TempIT-Lite software offers a graphical display and can be downloaded here, free of charge. For more comprehensive analysis, including table view, data export function (for example Excel or Word), MKT, F0, A0 and PU calculations, there is the TempIT-Pro version, which is also available with optional copy protect dongle. It is possible to upgrade from TempIT-Lite to TempIT-Pro at any time.
The mini data loggers in the tempmate.®-Bx range are complemented by a USB adapter that can be connected to any PC to read and analyze the data.
| Auto CSV Generation |
Auto CSV Generation
CSV (comma-separated values) is a simple data file for spreadsheet software.
| Auto PDF Generation |
Auto PDF Generation
PDF (Portable Document Format) will convert a generated document into a pdf file
| Battery Type |
Specific types of battery that can vary from Nickel Cadmium, Nickel-Metal Hydride, Lead Acid Battery, Lithium Ion battery and more.
|Non-replaceable 3.0 V lithium battery|
| Color |
| Connection Interface |
Is an interface between two pieces of equipments that functions such as passing messages, connecting and disconnecting, etc.
| Data Storage Capacity |
Data Storage Capacity
The amount of readings that can be stored in the device
|Number of Uses||Multi-Use|
|Recording Cycle||Set through software days|
|Recording Interval||0.03 - 1,440 min|
|Temperature Accuracy||±0.5°C/±1.5°C °C|
|Temperature Range||0°C to 125°C °C|
|Temperature Resolution||0.5°C °C|
| Certifications |
Confirmation of tested functions, characteristics of a product.
