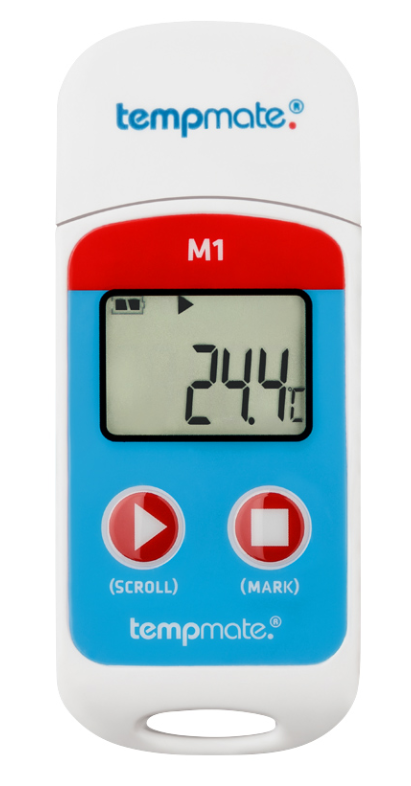

Tempmate M1 | Multi-Use Temperature Logger

Harmonization Code : 9025.19.00.90 |   Hydrometers and similar floating instruments, thermometers, pyrometers, barometers, hygrometers and psychrometers, recording or not, and any combination of these instruments; Other ; Other
Main features
  • -30°C to +70°C
  • Multi Use - Replaceable battery
  • USB - Automatic PDF report

Product Description

Multi-Use Temperature Data Logger

tempmate.®-M1 loggers are specially designed for temperature monitoring in pharmaceutical cold chain logistics. As preprogrammed device tempmate.®-M1 can be instantly used to control your temperature sensitive consignment. The PDF report created contains detailed information such as data curve, every single measurement as a table and statistical information. With the optional free available tempbase.® software, you can ensure individual logger configuration and detailed data analysis or data management is also possible. Moreover, the device does not require labeling per IATA´s Dangerous Goods Regulations.

Programming and analysis

The automatically created PDF report contains extensive information that you can use to assess the goods being monitored: data curve, statistical values such as MIN, MAX, AVG, MKT and every single measurement value shown in table form. The innovative Multi-Use data logger tempmate.®-M1 with integrated USB port is the ultimate data logger for economical temperature monitoring of your stationary refrigerators and transported goods. For carrying out the analysis, the tempmate.®-M1 is connected directly to the USB port. A PDF report is then automatically generated. This shows the temperature profile as well as all individual values plus statistical information. No hardware (such as cables or interfaces) or software required. In order to adjust the data logger’s settings or analyse the measurement data, the free tempbase.®-D software is required. The tempbase.®-D software can be downloaded here .

Your Benefits at a Glance

Product-related temperature monitoring along the entire cold chain, in warehouses or fridges

Cost-effective and reliable

Smart design, intuitive operation

Waterproof and food compatible

Free available software for individual logger configuration

Detailed PDF report including graph and table

Multi-function display with battery indicator

Accessories

The Multi-Use Temperature Data Loggers in the tempmate.®-M1 range are complemented by an external temperature probe, TNS100 and a magnetic holder, ACB100.

Product Family
Tempmate-M1-Series
Standard
Normal Price
$80.016
Sale Price
$61.551/Unit
Quantity OrderedPrice per Unit
  1 - 5 Unit  $61.551 /Unit
  6 - 24 Unit  $50.132 /Unit
  25 - 49 Unit  $42.334 /Unit
  50 - 99 Unit  $36.764 /Unit
  100 - 499 Unit  $25.066 /Unit
  500 - 749 Unit  $22.281 /Unit
  750 - 1999 Unit  $19.496 /Unit
$18.93
Shipping in 4 weeks Shipping in 4 weeks Shipping in 2 weeks

Quantity:

Technical Specifications

General Properties
Auto CSV Generation
Auto CSV Generation
CSV (comma-separated values) is a simple data file for spreadsheet software.
No
Auto PDF Generation
Auto PDF Generation
PDF (Portable Document Format) will convert a generated document into a pdf file
Yes
Battery Included Yes
Battery Type
Battery Type
Specific types of battery that can vary from Nickel Cadmium, Nickel-Metal Hydride, Lead Acid Battery, Lithium Ion battery and more.
Replaceable CR2032
Color
Color
The color
Multi
Connection Interface
Connection Interface
Is an interface between two pieces of equipments that functions such as passing messages, connecting and disconnecting, etc.
USB 2.0, Type A
Data Storage Capacity
Data Storage Capacity
The amount of readings that can be stored in the device
32,000 readings
Number of Uses Multi-use
Recording Cycle Programmable or up to 365 days
Recording Interval 10 sec to 1,440 min
Reprogrammable Yes
Software PDF reader
Startup Mode Button or Programmable
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 15°C (replaceable battery) months
Thermal Properties
Temperature Accuracy ±0.5 °C
Temperature Range -30 to 70 °C
Temperature Resolution 0.1 °C
Other Properties
Certifications
Certifications
Confirmation of tested functions, characteristics of a product.
EN12830, validation certificate, CE, RoHS
