PIT1A-RL | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive on Release Liner

Harmonization Code : 3919.90.80.99 |   Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
  • 1 mil polyimide film
  • Non-silicone, acrylic adhesive
  • >10000V breakdown voltage

Product Description

LINQTAPE PIT1A-RL-Series Polyimide Tape is a high-temperature resistant polyimide tape on a 3mil PET Release Liner. It is designed for high temperature temporary bonding applications and it removes cleanly without adhesive residue after exposure to heat or chemicals. It may also be used in electrical insulation applications that require Class H Tape grade.

Product Applications

Having an acrylic adhesive makes it suitable for higher temperature applications that cannot use silicone adhesives. Finally, being on a liner makes it suitable for applications that require the film to be die-cut.

APPLICATIONS:

  • High Temperature Wafer Dicing Tape
  • Die-cut polyimide parts

PRODUCT FEATURES & BENEFITS:

  • 1-mil polyimide thickness
  • Linered
Product Family
PIT1A-RL-Series
25.4 mm 50.8 mm 508.00 mm 305 mm
33 m
Normal Price
$453.752
Sale Price
$349.04/Roll
Quantity OrderedPrice per Roll
  1 - 2 Roll  $349.04 /Roll
  3 - 9 Roll  $333.00 /Roll
  10 - 24 Roll  $310.07 /Roll
  25 - 500 Roll  $267.49 /Roll
Normal Price
$311.233
Sale Price
$239.41/Unit
Quantity OrderedPrice per Unit
  1 - 2 Unit  $239.41 /Unit
  3 - 9 Unit  $230.81 /Unit
  10 - 24 Unit  $216.49 /Unit
  25 - 499 Unit  $191.51 /Unit
Normal Price
$66.04
Sale Price
$50.80/Roll
Quantity OrderedPrice per Roll
  1 - 4 Roll  $50.80 /Roll
  5 - 9 Roll  $33.87 /Roll
  10 - 24 Roll  $22.01 /Roll
  25 - 500 Roll  $16.09 /Roll
Normal Price
$99.008
Sale Price
$76.16/Roll
Quantity OrderedPrice per Roll
  1 - 4 Roll  $76.16 /Roll
  5 - 9 Roll  $50.77 /Roll
  10 - 24 Roll  $40.61 /Roll
  25 - 500 Roll  $30.46 /Roll
$16.09
Shipping in 2 weeks Shipping in 2 weeks Shipping in 2 weeks

Quantity:

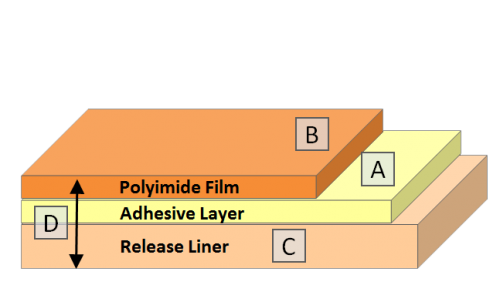

Technical Specifications

General Properties
Adhesive Layer
Adhesive Layer
A layer that is applied to one surface or both to bind items together and resist their separation
Acrylic
Adhesive Thickness
Adhesive Thickness
Adhesive thickness indicates the thickness of an adhesive layer.

It refers to the adhesive thickness of a single side so for double sided tapes it always needs to be multiplied.
38.1 µm
Chemistry Type Polyimide
Color
Color
The color
Amber
Film Thickness
Film Thickness
Film thickness is the thickness of a backing film without taking into account any coatings or adhesive layers. It is measured in micron and the conversion factor to mil is 0.039.
25.4 µm
Release Liner
Release Liner
A paper or plastic-based film sheet used to prevent a sticky surface from prematurely adhering
Single Release Liner
Single or Double-Sided Adhesive
Single or Double-Sided Adhesive
Describes whether a tape is single- or double-sided. If it is single-sided, it has adhesive only on one side of the backing film. If it is double-sided, then it has adhesive on both sides of the backing film.
Single-Sided
Special Layer None
Total Thickness
Total Thickness
Total thickness is taking into account all the films, coatings, adhesives, release liners and special layers and is the maximum thickness of a film or tape.
63.5 μm
Mechanical Properties
Adhesion Strength
Adhesion Strength
Adhesion is the bond strength measurement of a coating to a substrate. When an adhesive is bonded to an item or surface, numerous physical, mechanical and chemical forces come into play, which may have an effect on each other.
26 Oz/in
Electrical Properties
Breakdown Voltage
Breakdown Voltage
Breakdown voltage is the minimum voltage necessary to force an insulator to conduct some amount of electricity.
It is the point at which a material ceases to be an insulator and becomes a resistor that  conducts electricity at some proportion of the total current.

After dielectric breakdown, the material may or may not behave as an insulator any more because of the molecular structure alteration. The current flow tend to create a localised puncture that totally alters the dielectric properties of the material.

This electrical property is thickness dependent and is the maximum amount of voltage that a dielectric material can withstand before breaking down. The breakdown voltage is calculated by multiplying the dielectric strength of the material times the thickness of the film.
>10000 V
Dielectric Strength
Dielectric Strength
Dielectric strength is measured in kV per mm and is calculated by the Breakdown voltage divided by the thickness of the tested material.

Those two properties go hand in hand and while Breakdown voltage is always thickness dependent, dielectric strength is a general material property.

As an example, the dielectric strength of Polyimide is 236 kV/mm. If we place 1mm of Polyimide between two electrodes, it will act as an insulator until the voltage between the electrodes reaches 236 kV. At this point it will start acting as a good conductor, causing sparks, potential punctures and current flow.
197 kV/mm
Volume Resistivity
Volume Resistivity
Volume resistivity, also called volume resistance, bulk resistance or bulk resistivity is a thickness dependent measurement of the resistivity of a material perpendicular to the plane of the surface.
1.0x1013 Ohms⋅cm
Dielectric Constant
Dielectric Constant
Dielectric Constant (k), commonly known as relative permittivity, is a number relating the ability of a material to carry alternating current to the ability of vacuum to carry alternating current.

It determines the ability of an insulator to store electrical energy and is the ratio of electric permeability in vacuum against the electric permeability of a material.

The lower the dielectric constant (κ) and dissipation factor, the less energy is absorbed from an electric field, making it a much better insulator.

It is a dimensionless property that can be affected by various factors such as the
thickness uniformity of a material, insufficient contact between the sample and electrodes, water adsorption and contact resistance.
Dielectric Constant @ 23 ˚C/1 kHz 3.9
Dissipation Factor
Dissipation Factor
Dissipation factor is commonly known as loss tangent or tan delta.



It is a ratio of the loss index and the relative permittivity and it measures the inefficiency of an insulating material to maintain energy (that otherwise dissipates in the form of heat). The lower the factor, the better the insulation.

It is the reciprocal of the quality factor and always refers to a specific temperature and frequency.
Dissipation Factor @ 23°C /1 kHz 0.0036
Thermal Properties
Temperature Resistance
Temperature Resistance
Temperature resistance is the maximum temperature that the material or product can withstand for a period of time.

The temperatures listed should be considered as guidelines for an operating temperature of about 30 minutes. Typically, the material can withstand much longer times at temperatures about 20°C lower and can withstand much higher temperatures for short, intermittent times.
155 ˚C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
Yes
VOC-Free (100% solids content)
VOC-Free (100% solids content)
VOC means Volatile Organic compound. VOCs are evaporating molecules and are literally everywhere around us. Our scents are volatile organic compounds, most of the things that we smell are VOC etc. So what do we mean when we state that a product is VOC free?

A VOC free product, according to the FTC is one where:

1)VOCs have not been intentionally added to the product.

2)The presence of VOCs at that level does not cause material harm that consumers typically associate with VOCs, including but not limited to, harm to the environment or human health.

3)The presence of VOCs at that level does not result in concentrations higher than would be found at background levels in the ambient air.
Yes

Additional Information

Pricing & Availability

Pricing for PIT1A-RL | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive on Release Liner

Volume Price Breaks can be seen for each product by clicking on its respective link under the DESCRIPTION column and looking to the volume price break table to the right of the product image. Price per unit is reflected in this table and used during checkout.

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has entities in Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied.

If your shipping address is to the United States, we request your company?s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order.

If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders.

DON'T LIKE THESE PRICES? Tell us what you will pay for what order quantity.


Shipping Charges for PIT1A-RL | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive on Release Liner

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

  • Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Netherlands (Amsterdam)
  • Canada, USA, Mexico and South America: Shipping from CAPLINQ Canada (Ottawa)




Payment option for PIT1A-RL | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive on Release Liner

During the checkout process, you will be presented with several payment options including:

  • Credit Card (We accept VISA and Mastercard)
  • Bank Transfer (You will be given the payment instructions at the time of order placement)
  • PayPal (Where you can also pay with American Express Cards)
  • Purchase Order (You must be preapproved first. See our Online Credit Application)




Availability for PIT1A-RL | 1-mil Polyimide (Kapton) Tape with Acrylic Adhesive on Release Liner

To the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order.

Contact us if anything is unclear or you need more assistance.

Competitive Crossovers

Compare price and quality of LINQTAPE to DuPont, 3M, Furon, Nittto & these other brands
Popular Brand1
Names
Product
Description
CAPLINQ LINQTAPE
Part#
  • Nitto Permacel P-224
  • DuPont Kapton Tape
  • 3M 1206
1-mil Single-Sided Polyimide (Kapton) Tape with Acrylic-based Adhesive
  • LINQTAPE PIT1A-Series
    ie. LINQTAPE PIT1A/25.4
  • Nitto Permacel P-221
  • DuPont Kapton Tape
  • 3M 5413
  • Saint-Gobain Furon® K250
  • Intertape 4428
1-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT1S-Series
    ie. LINQTAPE PIT1S/25.4
  • Nitto Permacel P-222
  • DuPont Kapton Tape
  • Saint-Gobain Furon® K350
  • Intertape 4429
2-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT2S-Series
    ie. LINQTAPE PIT2S/25.4
  • DuPont Kapton Tape
  • Saint-Gobain Furon® K104
5-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT5S-Series
    ie. LINQTAPE PIT5S/25.4
  • Nitto Permacel P-223
  • DuPont Kapton Tape
1-mil Double-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT1SD-Series
    ie. LINQTAPE PIT1SD/25.4
NittoPermacelDuPontKapton3M1206Saint-GobainFuronIntertape
1 Permacel® Kapton®, 3M®, Furon® and Intertape are registered trademarks of Nitto, DuPont, 3M, Saint-Gobain and Intertape respectively and are not affiliated with this site.
