DK15-0606 Tan Insulating Epoxy Coating Powder

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • DK15-0606 Coating Powder
  • Tan, insulating, epoxy based
  • For low and medium voltage bus bars

Product Description

The one powder solution for low and medium voltage busbar and switch gear applications

DK15-0606 Tan is an epoxy-based coating powder developed for low and medium voltage (600V - 38,000V) bus bars. Used for over 20 years by major power distribution companies for low and medium-voltage bus bar applications, DK15-0606 provides a smooth surface appearance with high edge coverage properties and DK15-0606 is UL recognized for UL94-VO and an RTI of 130ºC operating temperatures. Particle size distribution of DK15-0606 is tailored for application via a fluid bed process.

DK15-0606 Tan is an epoxy based, "One Powder Solution" coating powder developed for low and medium voltage (600V - 38,000V) bus bars. Used for over 20 years by major power distribution companies for low and medium-voltage bus bar applications, DK15-0606 provides a smooth surface appearance with high edge coverage. The fusion bonded coating is smooth, tough, and moisture resistant for applications up to 38 KV. DK15-0606 is UL recognized for UL94-V0 rating and meets the UL746B Relative Thermal Index (RTI) of 130°C and is currently on-test for an RTI at or above 150°C. Rapid and thick build reduces production cycle times. Particle size is optimized for the fluidized bed coating process.

Advantages of DK15-0606 for Busbar Coating

  • One powder for low and medium voltage busbars
  • Used for more than 15 years by major power distribution companies
  • Suitable for copper and aluminum bar
  • Smooth, uniform coating build in excess of 200 mils (5 mm)

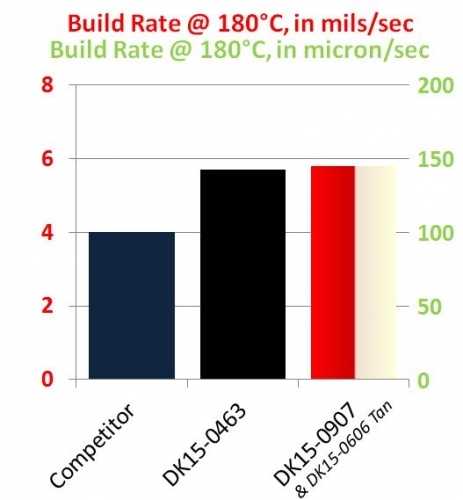

  • Rapid build rates to reduce cycle times
  • Productivity support including:
  • Fine grind powder to replenish size distribution
  • Fluidizing agent to promote uniform build
  • Ongoing testing to optimize quality & productivity

Typical applications and uses of {product_name} include:

  • Low Voltage (600V) Copper, Aluminum and Brass Busbars
  • Medium Voltage (up to 38kV) Copper, Aluminum and Brass Busbars
  • Switchgear Equipment for Power Distribution
Product Family
DK0606
EU Bag Drum (113.4kgs)

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.

Technical Specifications


Additional Information

Pricing & Availability

Pricing for DK15-0606 Tan Insulating Epoxy Coating Powder

Pricing and Volume Price Breaks for DK15-0606 Tan Insulating Epoxy Coating Powder are available by contacting us. You cannot order this product directly online.

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has warehouses and ships from both Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied. If your shipping address is to the United States, we request your company’s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order. If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders.

Minimum Order Quantity for DK15-0606 Tan Insulating Epoxy Coating Powder

The minimum order quantity for this package size is (s).

Shipping Charges for DK15-0606 Tan Insulating Epoxy Coating Powder

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

  • Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Europe BV (Amsterdam, the Netherlands)
  • Canada, USA, Mexico and South America: Shipping from CAPLINQ Corporation (Ottawa, Canada)


Payment option for DK15-0606 Tan Insulating Epoxy Coating Powder

During the checkout process, you will be presented with several payment options including:

  • Credit Card (We accept VISA and Mastercard)
  • Bank Transfer (You will be given the payment instructions at the time of order placement)
  • PayPal (Where you can also pay with American Express Cards)
  • Purchase Order (You must be preapproved first. See our Online Credit Application)

Availability for DK15-0606 Tan Insulating Epoxy Coating Powder

To the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order. Contact us if anything is unclear or you need more assistance.

Technical Specifications

Short Description of DK15-0606 Tan Insulating Epoxy Coating Powder

Technical Datasheets for DK15-0606 Tan Insulating Epoxy Coating Powder

TDS (English) Kapton_Technical_Data_Sheet Click to access DK15-0606 Tan Insulating Epoxy Coating Powder Technical Data Sheet
*Note that only registered users may access technical datasheets

Competitive Crossovers

#shortdesc
Compare price and quality of DK15-0907 Red Insulating Epoxy Coating Powder to these other brands

Please see the section above for a list of Competitive Brands that DK15-0606 Tan Insulating Epoxy Coating Powder competes against.

Videos & Other Media

Videos & Other Related Media

Please visit or subscribe to our YouTube Channel.

See this video that shows the difference between a good and a bad fluidized epoxy coating powder bed.
