LOCTITE ECCOBOND UV9060

Harmonization Code : 3907.30.00.90 |   Polyacetals, other polyethers and epoxide resins, in primary forms; polycarbonates, alkyd resins, polyallyl esters and other polyesters, in primary forms : Epoxide resins : Other
Main features
  • UV & Moisture Cure
  • Cures in shadowed areas
  • Not fluorescent

Product Description

LOCTITE ECCOBOND UV 9060 no flow acrylate encapsulant is designed for local circuit board protection as a UV curing coating/encapsulant with secondary moisture cure in shadow areas. This product will phase out for UV9060F which is the same but is also fluorescent when viewed with ultraviolet (black) light.

LOCTITE ECCOBOND UV 9060 is a one component, fast curable translucent material that is easily dispensed without stringing. It is typically used for assembly applications and the local protection of WLCSP and BGA on circuit boards.

Product Family
UV9060

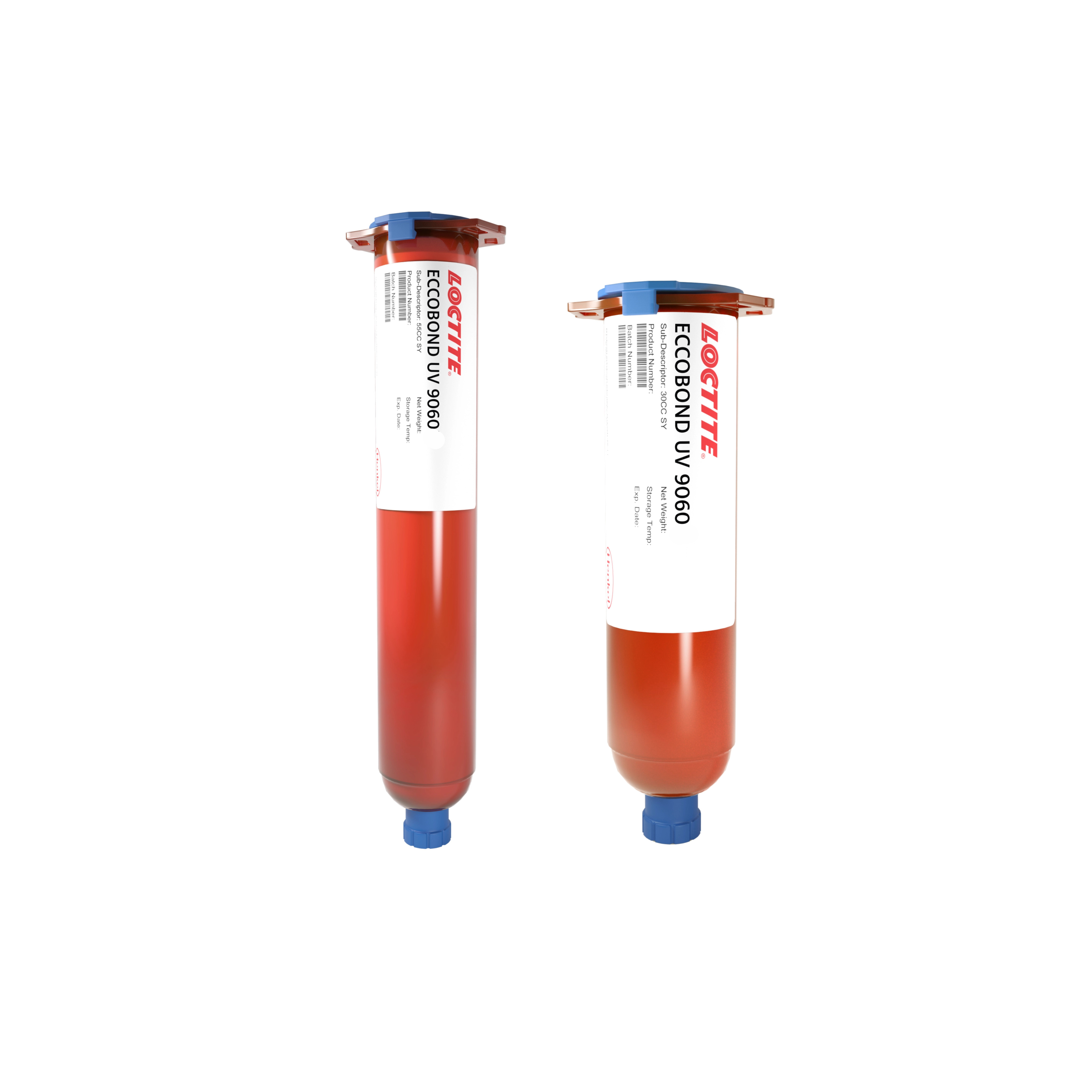

30cc Syringe

No longer available

This product is no longer available or will become obsolete soon. Please contact us so we can recommend an alternative product.

Technical Specifications

General Properties
Shelf Life
Shelf Life
Shelf life is the amount of time after manufacturing that a product is guaranteed to retain its properties.

It differs vastly per product and it is based on temperature and storage conditions.

The properties can be guaranteed for the temperature and time range indicated on the TDS since those are the ones tested to be the best for the product.
Shelf Life @ 5°C 183 days
Physical Properties
Viscosity
Viscosity
Viscosity is a measurement of a fluid’s resistance to flow.

Viscosity is commonly measured in centiPoise (cP). One cP is defined as
the viscosity of water and all other viscosities are derived from this base. MPa is another common unit with a 1:1 conversion to cP.

A product like honey would have a much higher viscosity -around 10,000 cPs-
compared to water. As a result, honey would flow much slower out of a tipped glass than
water would.

The viscosity of a material can be decreased with an increase in temperature in
order to better suit an application
9,000 mPa.s
Mechanical Properties
Hardness
Hardness
Hardness is a dimensionless quantity. There is no direct relationship between measurements in one scale and their equivalent in another scale or another hardness test.
Durometer (Shore A) 68

Additional Information

UV Cure

Light Source and Condition:

Metal halide doped spectrum UV lamp

  • Lamp Power, W/in 300
  • Distance between lamp to substrate, inches 4
  • Irradiance UVA, EIT puck radiometer, mW/cmÇ 566
  • Recommended Dose, seconds 5 to 25

Moisture cure occurs at ambient temperature and humidity.

*Cures at least 0.25 inch under optimum conditions.
