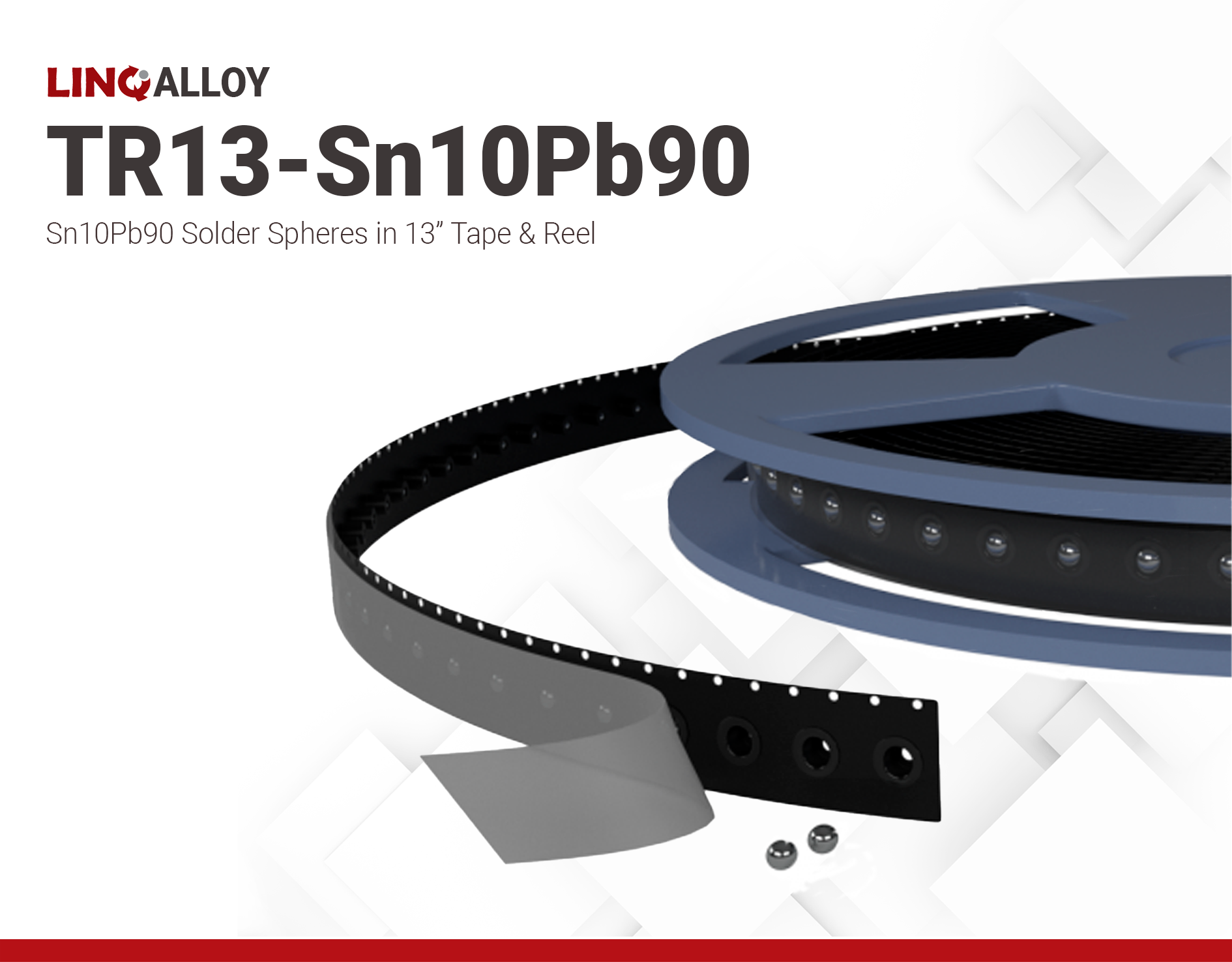

Sn10Pb90 on 13" Tape & Reel

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Sn10Pb90 alloy on tape & reel
  • Suitable for BGA and flip chip packaging techniques
  • Compatible with almost all existing pick and place feeders

Product Description

LINQALLOY TR13-Sn10Pb90 are solder spheres conveniently packaged on a 13-inch tape and reel, designed to optimize integrated circuit (IC) production processes. TR13-Sn10Pb90 provides a reliable and well-established soldering solution for a variety of advanced packaging techniques.

Product Key Features:

  • Optimal Solder Composition: TR13-Sn10Pb90 offers excellent wetting properties and reliable solder joints.
  • Precise Placement for IC Assembly: Ideal for high-volume automated assembly processes, ensuring accurate and consistent solder deposition in applications like Ball Grid Arrays (PBGA, CBGA, TBGA, µBGA) and flip chip (C4) technologies.
  • Seamless Integration with Existing Equipment: Packaged on industry-standard 13-inch tape and reel, TR13-Sn10Pb90 is compatible with virtually all pick and place tape feeders, allowing you to maintain your current production line without significant modifications.

LINQALLOY TR13-Sn10Pb90 have customizable sphere diameter options. Contact us for more information.

Product Family
TR13-Sn10Pb90
40 kpcs
0.500 mm

Catalog Product

Unlike other products we offer, the products listed on this page cannot currently be ordered directly from the website.
Shipping in 4 - 6 weeks Shipping in 4 - 6 weeks Shipping in 4 - 6 weeks
Packaging
TDS, SDS & Technical documents

Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
 Sn10Pb90
Density (g) 10.75 g/cm3
Metal Loading
Lead (Pb) 90 %
Tin (Sn) 10 %
Thermal Properties
Melting Temperature
Eutectic Melting Temperature
Eutectic Melting Temperature
Eutectic melting temperature is the precise temperature point at which an alloy turns from pure solid to liquid.

Eutectic alloys are unique. They do not have a Solidus / Liquidus melting range but they have a single temperature point at which the alloy immediately becomes liquid and vice versa.
 301°C °C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
 Yes
