Sn63Pb37 on 13" Tape & Reel

Harmonization Code : 8001.20 |   Unwrought tin: Tin alloys
Main features
  • Sn63Pb37 alloy on tape & reel
  • Suitable for BGA and flip chip packaging techniques
  • Compatible with almost all existing pick and place feeders

Product Description

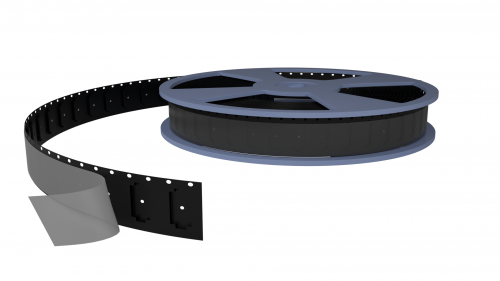

LINQALLOY Sn63Pb37 solder spheres on 13" Tape & Reel

Caplinq is pleased to offer Sn63Pb37 solder spheres on a 13 inch Tape and Reel. Our solder sphere product offering includes lead-free and lead-tin solder spheres ranging in diameter from 60 to 890 micron.

When using solder spheres in integrated circuits (IC’s) the production process can require a very precise amount and placement of the solder material. IC’s are made in high volumes through an automated process and the different components that are part of the IC are placed using a pick and place machine. Examples of packaging techniques that use solder spheres in the production of IC’s are ball grid arrays (PBGA, CBGA, TBGA and µBGA) and flip chips (C4).

To be able to use our solder spheres in these high volume, automated processes we can package your solder spheres on tape and reel. Our tape and reel solder spheres can be used on almost all existing pick and place tape feeders, which means you can keep using your existing pick and place equipment to ensure your solder material is placed with the right speed and precision. Our tapes and reel packaging service is available for all solder sphere sizes. If you don't see the solder sphere size you require, please contact us to request a quote.

Product Family
0.560 mm
20 kpcs
Normal Price
Sale Price
Quantity OrderedPrice per Reel
  6 - 24 Reel  $263.902 /Reel
  25 - 49 Reel  $170.415 /Reel
  50 - 99 Reel  $126.393 /Reel
Shipping in 12 weeks Shipping in 12 weeks Shipping in 12 weeks


Technical Specifications

General Properties
Alloy Composition
Alloy Composition
Composition of the alloy material
Alloy Type
Alloy Type
A metallic element type
Metal Loading
Lead (Pb) 37 %
Tin (Sn) 63 %
Thermal Properties
Melting Temperature
Eutectic Melting Temperature
Eutectic Melting Temperature
Eutectic melting temperature is the precise temperature point at which an alloy turns from pure solid to liquid.

Eutectic alloys are unique. They do not have a Solidus / Liquidus melting range but they have a single temperature point at which the alloy immediately becomes liquid and vice versa.
183 °C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS is a product level compliance based on a European Union Directive which restricts the Use of certain Hazardous Substances in Electrical and Electronic Equipment (RoHS).

Products compliant with this directive do not exceed the allowable amounts of the following restricted materials: lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE), with some limited exemptions
