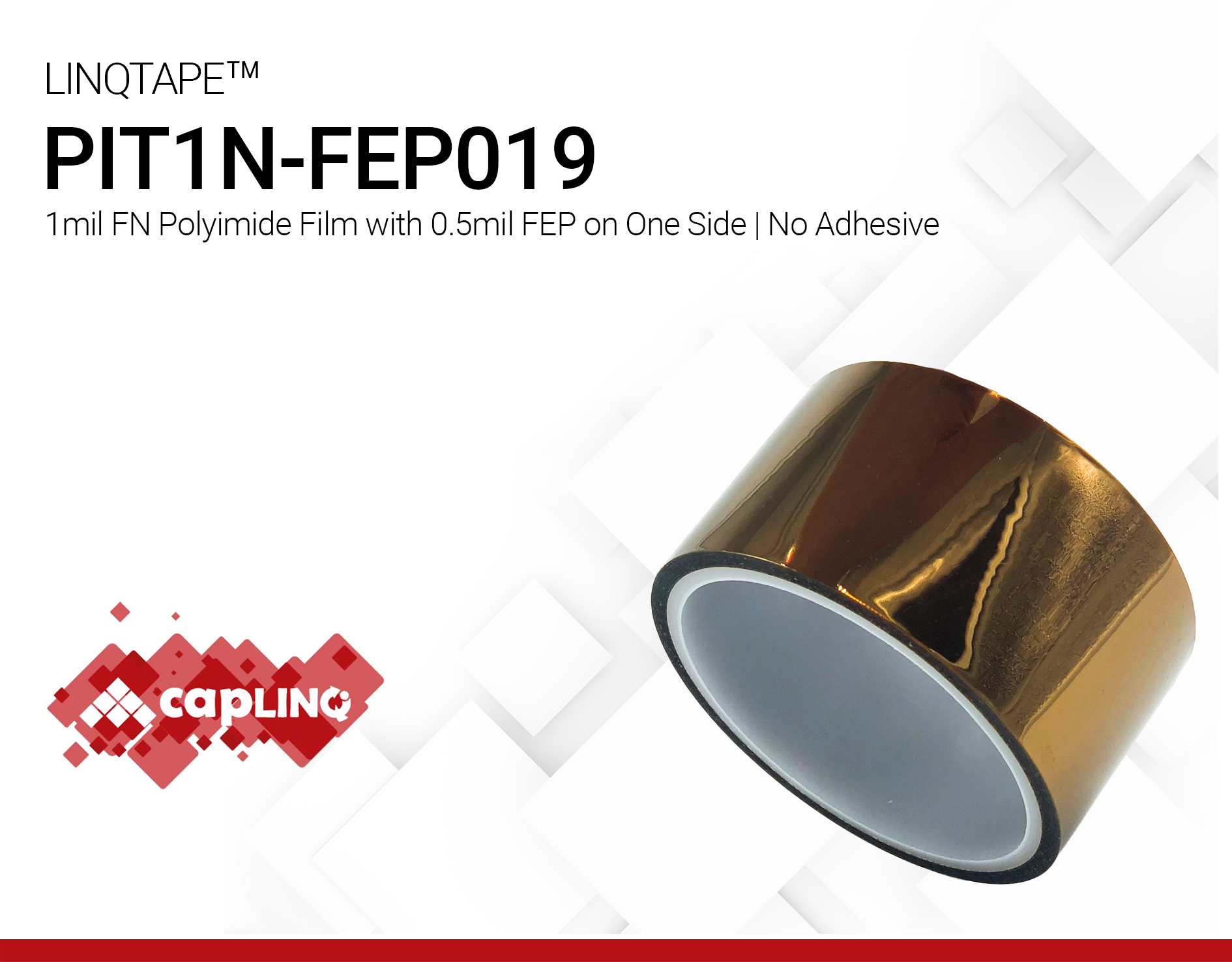

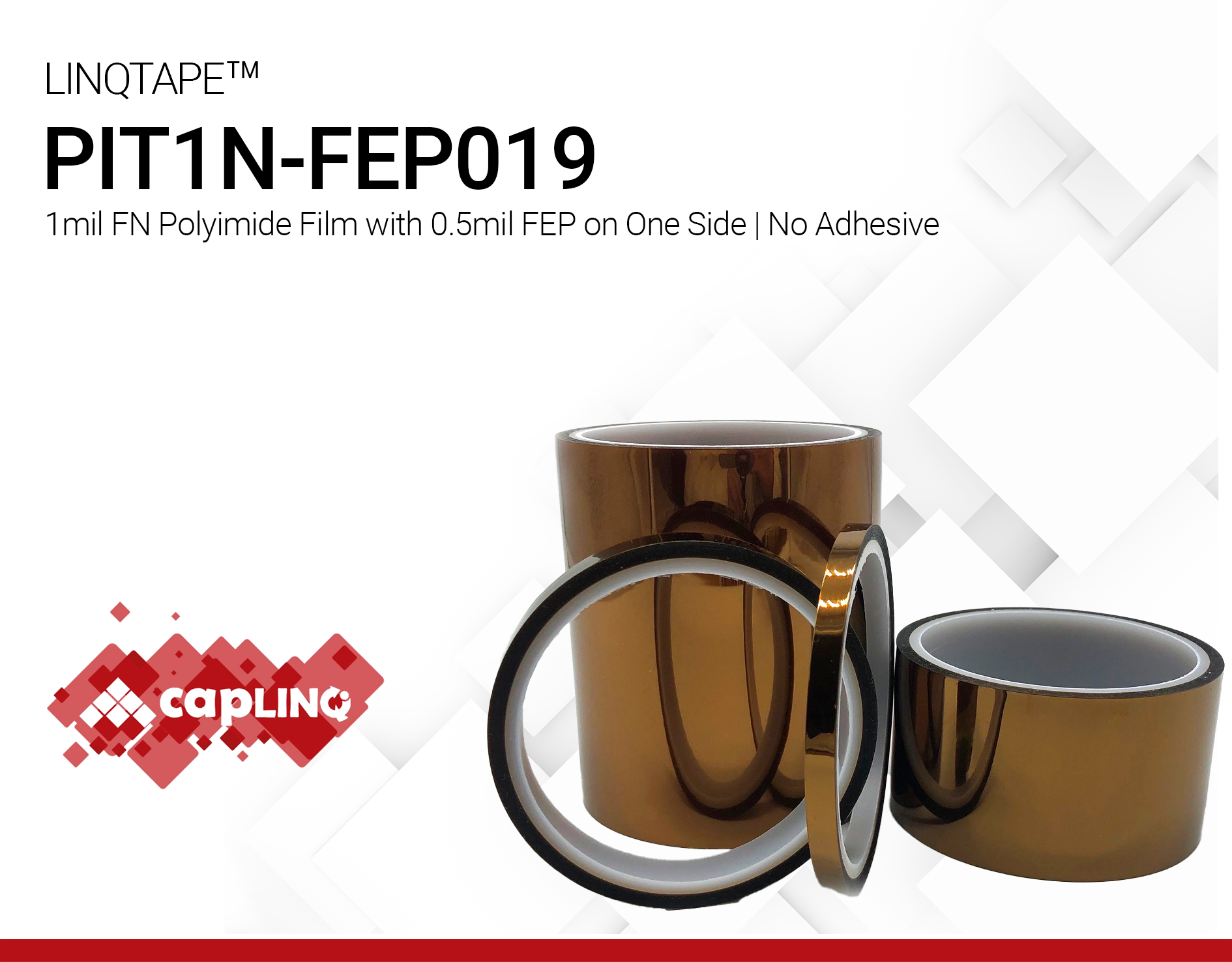

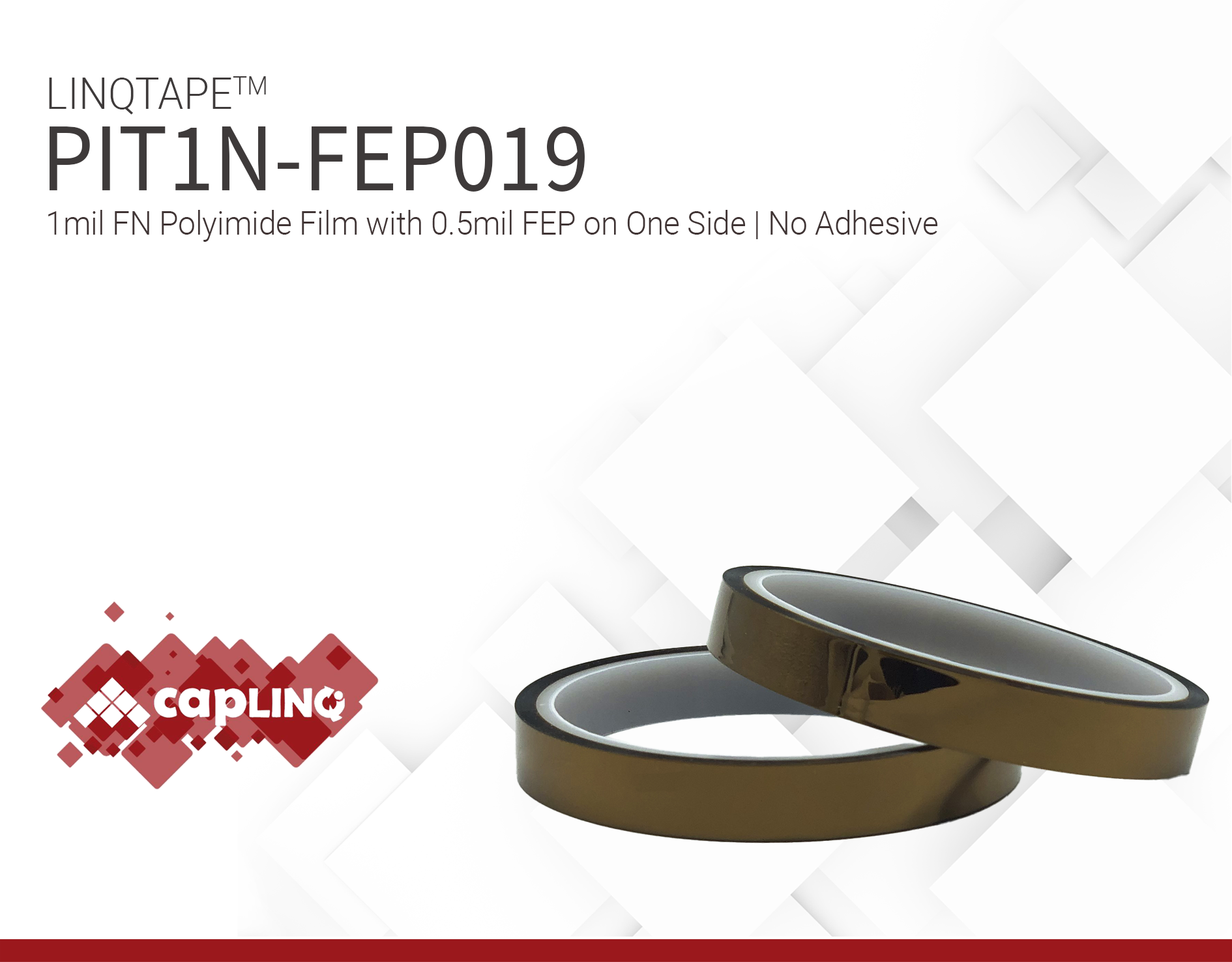

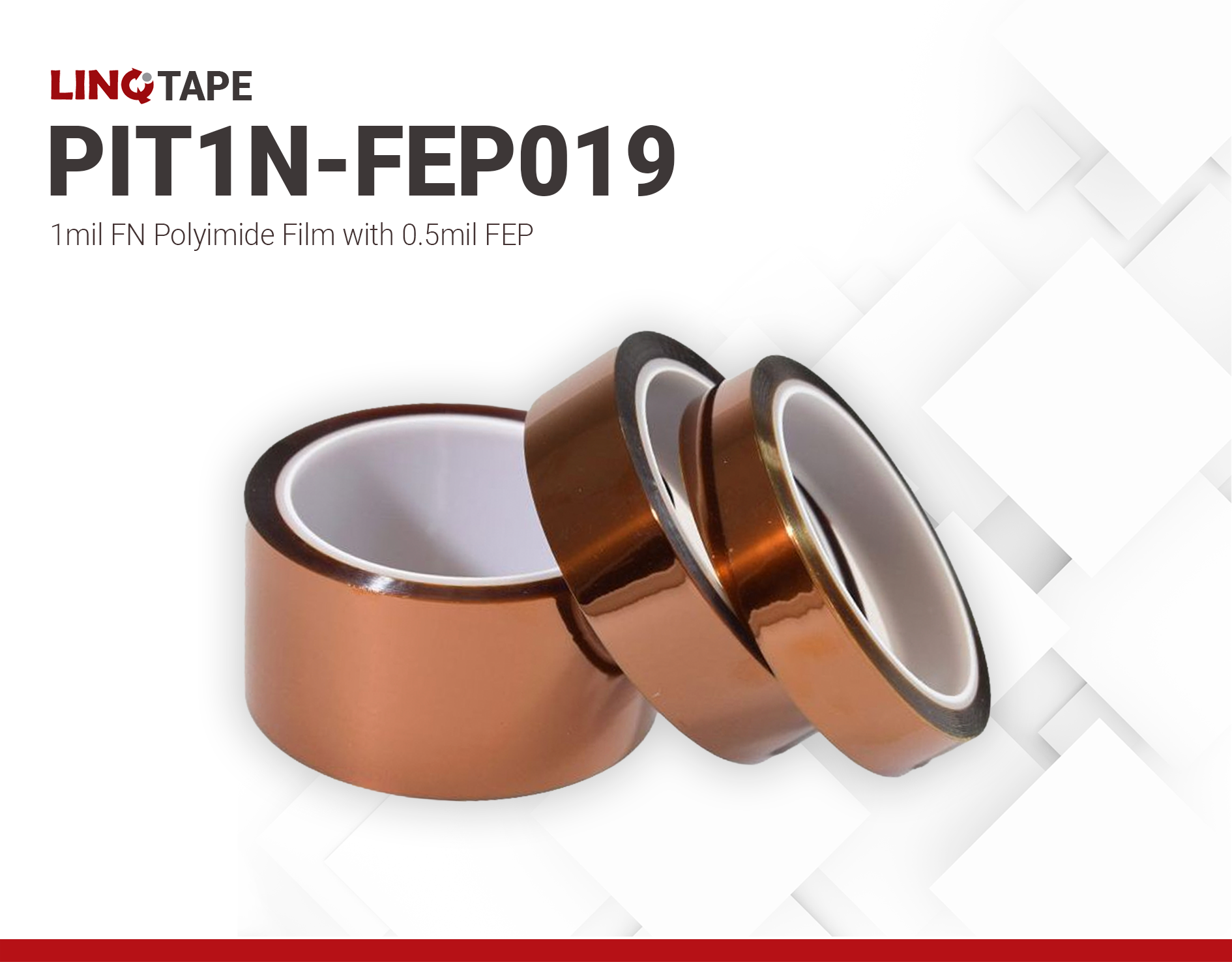

PIT1N-FEP019 | 1mil FN Polyimide Film with 0.5mil FEP on One Side | No Adhesive

Harmonization Code : 3919.90.90 |   Polyacrylic plates / sheets / film / tape / strip, self-adhesive, in rolls
Main features
  • 1 mil polyimide film
  • No adhesive
  • Single Sided FEP

Product Description

CAPLINQ LINQTAPE™ PIT1N-FEP019 Series is a general purpose, high-temperature resistant HN polyimide film that is coated on one side with a 0.5 mil fluorinated ethylene propylene or FEP copolymer.

CAPLINQ LINQTAPE HN Polyimide Film

LINQTAPE HN Polyimide film is a high performance, high-temperature resistant, polyimide film that offers an excellent balance of mechanical, chemical and insulative properties particularly at temperatures up to 260°C (500°F).

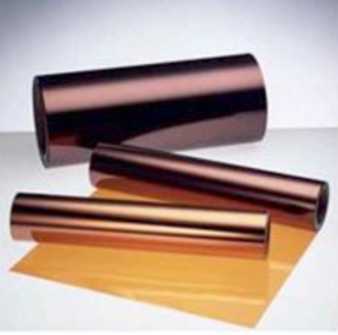

LINQTAPE HN Polyimide is available as a stand-alone film (CAPLINQ LINQTAPE PIT-N Series) in standard thicknesses of 0.5 mil (13 micron), 1 mil (25 micron), 2 mil (50 micron) and 5 mil (125 micron). It is also available with specialty coatings applied to the film such as a conductive polymer to make it antistatic, a sputtered aluminum coating, or as a black polyimide version. Custom thicknesses and/or coatings may be available, please ask for more details.

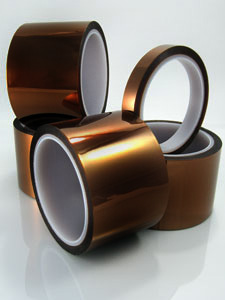

LINQTAPE HN Polyimide is also available as a pressure sensitive tape by applying an adhesive layer to the HN polyimide film. The adhesive layer may be made of rubber, acrylic or silicone, and is most often applied 1.5 mil (37 micron) thick, except in our thinnest product offerings. The adhesive may also be applied on one or both sides of the film, and options are available to have it on a single or double-release 3 mil thick PET liner which makes it easier for handling or for the purpose of die-cut parts.

CAPLINQ LINQTAPE FN Polyimide Film

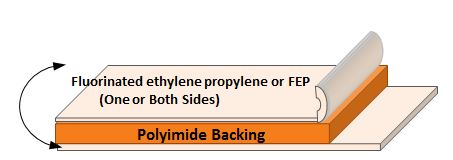

LINQTAPE FN polyimide films are coated with a FEP fluoropolymer coating (F46) emulsified solution and sintered at high temperature to turn general purpose HN polyimide into an FN polyimide. By applying the FEP coating to the HN polyimide film, it is converted to a heat bondable film, which in turn provides a superior moisture barrier and improved chemical resistance.

Product Applications

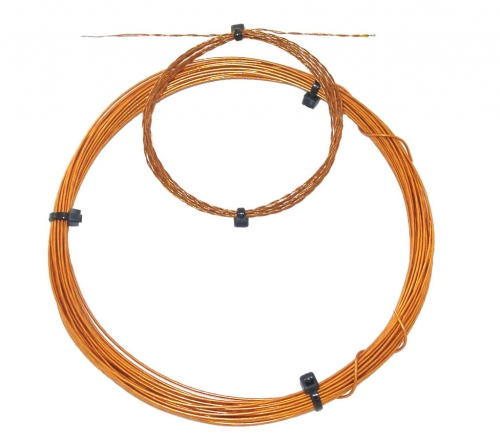

Being heat-sealable, LINQTAPE FN polyimide films are used in applications that require polyimide films to be heat-bonded, or in applications that require moisture and/or chemical resistance beyond what our standard HN polyimide films can offer. It is extremely well suited, and extensively used for wrapping cable and magnet wire. A further list of applications includes, but is not limited to tubing, heater circuits, heat sealable high-temperature bags, automotive diaphragms and manifolds, H-C grade motors and other applications that can make use of the high temperature, electrically insulating, heat-bondable properties of polyimide FN films.

Applications:

  • Cable Wrapping
  • Magnet Wire Wrapping
  • Automotive Manifolds
  • Automotive Diaphragms
  • Tubing
  • Heat Sealable Bags
  • Heater Circuits

Product Features & Benefits:

  • 0.5 mil FEP on one side
  • Heat Sealable
  • Improved Moisure Barrier
  • Improved Chemical Resistance

Product Nomenclature:

  • PIT: HN Polyimide Film
  • 1: 1 mil Thick Polyimide Film
  • N: No adhesive
  • FEP019: 0.5 mil FEP coating on one side of HN Polyimide
Read More
Product Family
PIT1N-FEP019 Series
100.00 mm 25.40 mm
33 m 1000 m
Normal Price
$990.99
Sale Price
$762.30/Roll
Quantity OrderedPrice per Roll
  1 - 4 Roll  $762.30 /Roll
  5 - 9 Roll  $609.84 /Roll
  10 - 24 Roll  $594.59 /Roll
  25 - 500 Roll  $533.61 /Roll
Normal Price
$155.03
Sale Price
$119.25/Roll
Quantity OrderedPrice per Roll
  5 - 5 Roll  $119.25 /Roll
  6 - 24 Roll  $104.94 /Roll
  25 - 250 Roll  $81.09 /Roll
$81.09
Shipping in 3 - 7 days Shipping in 3 - 7 days

Quantity:

Technical Specifications

General Properties
Special Layer Single-Sided FEP
Chemistry Type Polyimide
Adhesive Layer
Adhesive Layer
A layer that is applied to one surface or both to bind items together and resist their separation
None
Film Thickness
Film Thickness
Backing Film Thickness
25.4 µm
Thermal Properties
Temperature Resistance
Temperature Resistance
Temperature resistance is the maximum temperature that the material or product can withstand for a period of time. The temperatures listed should be considered as guidelines for an operating temperature of about 30 minutes. Typically, the material can withstand much longer times at temperatures about 20°C lower and can withstand much higher temperatures for short, intermittent times.
260 ˚C
Other Properties
RoHS Compliant
RoHS Compliant
RoHS (Restriction of Hazardous Substances) restricts teh use of specific hazardous materials found in the electrical and reflectivity of any metal.
Yes

Additional Information

Pricing & Availability

Pricing for PIT1N-FEP019 | 1mil FN Polyimide Film with 0.5mil FEP on One Side | No Adhesive

Volume Price Breaks can be seen for each product by clicking on its respective link under the DESCRIPTION column and looking to the volume price break table to the right of the product image. Price per unit is reflected in this table and used during checkout.

CAPLINQ lists all its prices without taxes, shipping payment charges or discounts. CAPLINQ has entities in Canada and the Netherlands, and if your shipping address is one of these two countries, applicable taxes will be applied.

If your shipping address is to the United States, we request your company?s Employer Identification Number (EIN) or Tax Identification Number (TIN). This is a unique 9-digit number assigned by the IRS and is required for all cross-border shipments. Failure to provide this number could result in delays to your order.

If your shipping address is within the EU, but outside the Netherlands, then we are required to request your company's Value Added Tax (VAT, BTW, MwSt) number to be able to ship the goods tax-free. For all other countries, no taxes are levied on your orders.

DON'T LIKE THESE PRICES? Tell us what you will pay for what order quantity.


Shipping Charges for PIT1N-FEP019 | 1mil FN Polyimide Film with 0.5mil FEP on One Side | No Adhesive

All prices shown are ex-works CAPLINQ, but during the checkout process, you will be given several shipping options including Canada Post, TNT, UPS or the choice of using your own freight forwarder. Depending on your shipping address, the shipping charges will be calculated as follows:

  • Europe, Middle East, Asia and Africa: Shipping from CAPLINQ Netherlands (Amsterdam)
  • Canada, USA, Mexico and South America: Shipping from CAPLINQ Canada (Ottawa)


Payment option for PIT1N-FEP019 | 1mil FN Polyimide Film with 0.5mil FEP on One Side | No Adhesive

During the checkout process, you will be presented with several payment options including:

  • Credit Card (We accept VISA and Mastercard)
  • Bank Transfer (You will be given the payment instructions at the time of order placement)
  • PayPal (Where you can also pay with American Express Cards)
  • Purchase Order (You must be preapproved first. See our Online Credit Application)


Availability for PIT1N-FEP019 | 1mil FN Polyimide Film with 0.5mil FEP on One Side | No Adhesive

To the right of the product is a small icon that lets you know the availability and leadtime of the product. This leadtime is the time to ship the product and delivery times vary based on the method of delivery you select at the time you place your order.

Contact us if anything is unclear or you need more assistance.

Competitive Crossovers

Compare price and quality of LINQTAPE to DuPont, 3M, Furon, Nittto & these other brands
Popular Brand1
Names
Product
Description
CAPLINQ LINQTAPE
Part#
  • Nitto Permacel P-224
  • DuPont Kapton Tape
  • 3M 1206
1-mil Single-Sided Polyimide (Kapton) Tape with Acrylic-based Adhesive
  • LINQTAPE PIT1A-Series
    ie. LINQTAPE PIT1A/25.4
  • Nitto Permacel P-221
  • DuPont Kapton Tape
  • 3M 5413
  • Saint-Gobain Furon® K250
  • Intertape 4428
1-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT1S-Series
    ie. LINQTAPE PIT1S/25.4
  • Nitto Permacel P-222
  • DuPont Kapton Tape
  • Saint-Gobain Furon® K350
  • Intertape 4429
2-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT2S-Series
    ie. LINQTAPE PIT2S/25.4
  • DuPont Kapton Tape
  • Saint-Gobain Furon® K104
5-mil Single-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT5S-Series
    ie. LINQTAPE PIT5S/25.4
  • Nitto Permacel P-223
  • DuPont Kapton Tape
1-mil Double-Sided Polyimide (Kapton) Tape with Silicone-based Adhesive
  • LINQTAPE PIT1SD-Series
    ie. LINQTAPE PIT1SD/25.4
NittoPermacelDuPontKapton3M1206Saint-GobainFuronIntertape
